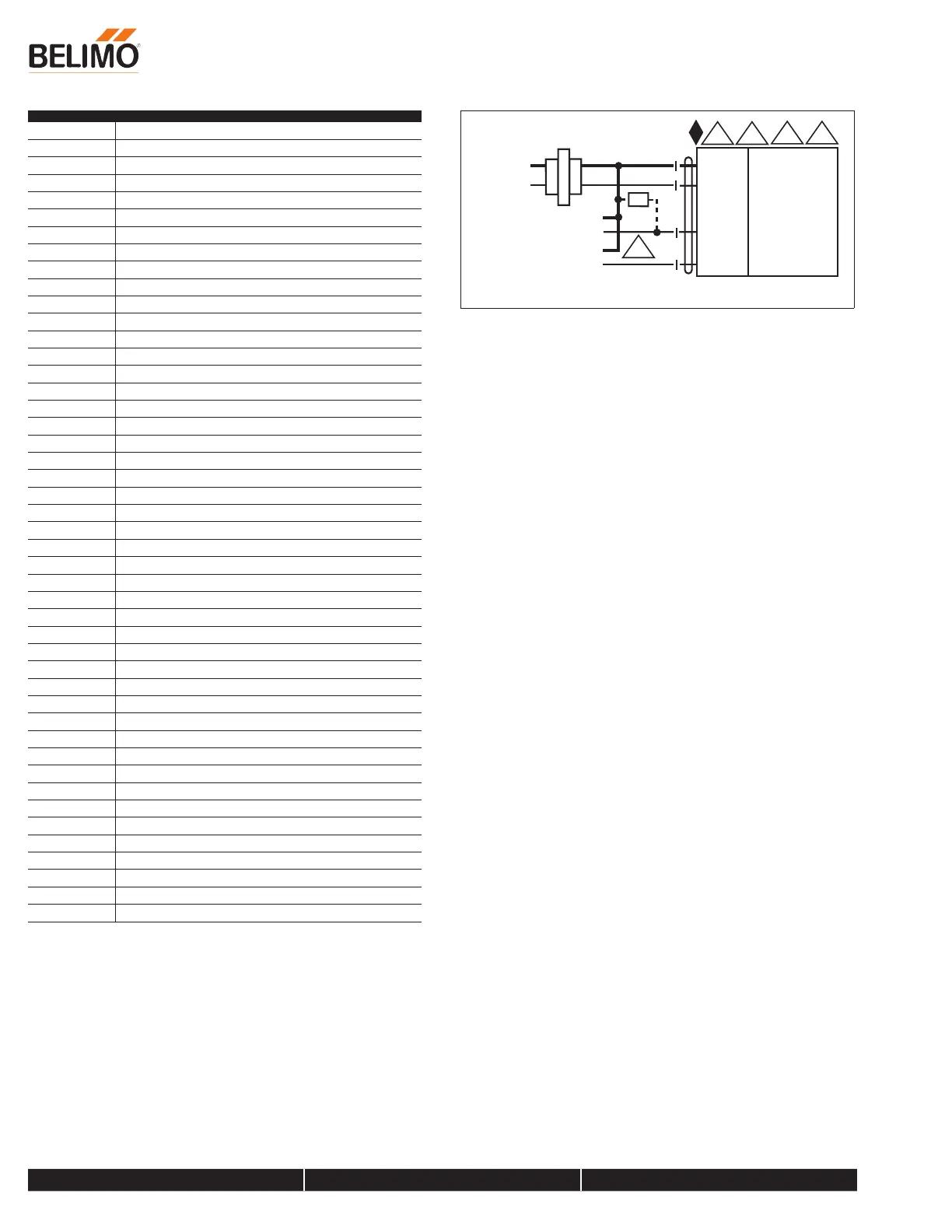

Belimo LF24-SR US - Accessories; Shaft Extension and Mounting Accessories; Control and Signal Accessories; Enclosures and Shields

Accessories
AV6-20 6.7” shaft extension for 1/4” to 3/4” diameter shafts.
IND-LF LF position indicator.
K6 US Standard LF clamp (3/8” to 1/2”).
K6-1 LF clamp (1/2” to 3/4”).
KG10A Ball joint for 3/8” diameter rod, zinc plated.
KG6 Ball joint for 5/16” diameter rod, zinc plated.
KG8 Ball joint for 5/16” diameter rod, 90°, galvanized steel.
KH12 Univ. crankarm, slot 21/64” w, for 3/4” to 1” dia. shafts.
KH6 Univ. crankarm, slot 1/4” w, for 3/8” to 11/16” dia. shafts.
KH8 Univ. crankarm,slot 21/64” w,for 3/8” to 11/16” dia. shafts.
KH-LF LF crankarm (with 1/2” diameter shaft pass through).
KH-LFV V-bolt Kit for KH-LF.
LF-P Anti-rotation bracket LF.
SH10 Push rod for KG10A ball joint (36” L, 3/8” diameter).
SH8 Push rod for KG6 & KG8 ball joints (36” L, 5/16” diameter).
TOOL-06 8 mm and 10 mm wrench.
ZDB-LF Angle of rotation Limiter for LF.
ZF8-LF 8x8 mm form fit adaptor for LF.
ZG-109 Right angle bracket for ZS-260.
ZG-110 Stand-off bracket for ZS-260.
ZG-112 LF right angle bracket (4-1/2” H x 5-1/2” W x 2-1/2” D).
ZG-DC1 Damper clip for damper blade, 3.5” width.
ZG-DC2 Damper clip for damper blade, 6” width.
ZG-LF112 LF crankarm adaptor kit (includes ZG-112).
ZG-LF2 LF crankarm adaptor kit (T bracket included).
ZG-LMSA-1 Shaft extension for 3/8” diameter shafts (4” L).
ZG-LMSA-1/2-5 Shaft extension for 1/2” diameter shafts (5” L).
ZS-100 Weather shield - galvaneal (13” L x 8” W x 6” D).
ZS-101 Base plate for ZS-100.
ZS-150 Weather shield - PC w/ foam seal (16” L x 8-3/8” W x 4” D).
ZS-260 Explosion proof housing.
ZS-300 NEMA 4X, 304 stainless steel enclosure.
ZS-300-5 NEMA 4X, 316L stainless steel enclosure.
ZS-300-C1 1/2” shaft adaptor, standard wtih ZS-300(-5).
ZS-300-C2 3/4” shaft adaptor for ZS-300(-5).
ZS-300-C3 1” shaft adaptor for ZS-300(-5).
ADS-100 Analog to digital switch for modulating actuators.
IRM-100 Input rescaling module for modulating actuators.
PS-100 Actuator power supply and control simulator.
PTA-250 Pulse width modulation interface for modulating actuators.
SGA24 Positioner control for modualting actuators (surface mount).
SGF24 Positioner control for modulating actuators (flush mount).
ZG-R01 4 to 20 mA adaptor, 500Ω, 1/4 W resistor w 6” pigtail wires.
ZG-R02 50% voltage divider kit (resistors with wires).
ZG-SGF Mounting plate for SGF.
ZG-X40 120 to 24 VAC, 40 VA transformer.
Blk (1) Common
Red (2) + Hot
Wht (3)
Y Input, 2 to 10 V
Grn (5) U Output
Control Signal
(+)
VDC/mA
(–)
Feedbac
k Signal
(+)
2 to 10 VDC
(–)
Ω
500 Ω
Line
Volts
1
3
5 11
24 VAC Transformer
7
2 to 10 VDC / 4 to 20 mA control
LF24-SR US - Damper Actuator
Modulating, Spring Return, 24 VAC/DC, for 2 to 10 VDC or 4 to 20 mA Control Signal
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Date created, 11/29/2017 - Subject to change. © Belimo Aircontrols (USA), Inc.
