Accessories
AV6-20 6.7” shaft extension for 1/4” to 3/4” diameter shafts.
IND-LF LF position indicator.
K6 US Standard LF clamp (3/8” to 1/2”).
K6-1 LF clamp (1/2” to 3/4”).
KG10A Ball joint for 3/8” diameter rod, zinc plated.
KG6 Ball joint for 5/16” diameter rod, zinc plated.
KG8 Ball joint for 5/16” diameter rod, 90°, galvanized steel.
KH12 Univ. crankarm, slot 21/64” w, for 3/4” to 1” dia. shafts.
KH6 Univ. crankarm, slot 1/4” w, for 3/8” to 11/16” dia. shafts.
KH8 Univ. crankarm,slot 21/64” w,for 3/8” to 11/16” dia. shafts.
KH-LF LF crankarm (with 1/2” diameter shaft pass through).
KH-LFV V-bolt Kit for KH-LF.
LF-P Anti-rotation bracket LF.
SH10 Push rod for KG10A ball joint (36” L, 3/8” diameter).
SH8 Push rod for KG6 & KG8 ball joints (36” L, 5/16” diameter).
TOOL-06 8 mm and 10 mm wrench.
ZDB-LF Angle of rotation Limiter for LF.
ZF8-LF 8x8 mm form fit adaptor for LF.
ZG-109 Right angle bracket for ZS-260.
ZG-110 Stand-off bracket for ZS-260.
ZG-112 LF right angle bracket (4-1/2” H x 5-1/2” W x 2-1/2” D).
ZG-DC1 Damper clip for damper blade, 3.5” width.
ZG-DC2 Damper clip for damper blade, 6” width.
ZG-LF112 LF crankarm adaptor kit (includes ZG-112).
ZG-LF2 LF crankarm adaptor kit (T bracket included).
ZG-LMSA-1 Shaft extension for 3/8” diameter shafts (4” L).
ZG-LMSA-1/2-5 Shaft extension for 1/2” diameter shafts (5” L).
ZS-100 Weather shield - galvaneal (13” L x 8” W x 6” D).
ZS-101 Base plate for ZS-100.
ZS-150 Weather shield - PC w/ foam seal (16” L x 8-3/8” W x 4” D).
ZS-260 Explosion proof housing.
ZS-300 NEMA 4X, 304 stainless steel enclosure.
ZS-300-5 NEMA 4X, 316L stainless steel enclosure.
ZS-300-C1 1/2” shaft adaptor, standard wtih ZS-300(-5).
ZS-300-C2 3/4” shaft adaptor for ZS-300(-5).
ZS-300-C3 1” shaft adaptor for ZS-300(-5).
PS-100 Actuator power supply and control simulator.
ZG-X40 120 to 24 VAC, 40 VA transformer.
Typical Specification
On/Off spring return damper actuators shall be direct coupled type which
require no crank arm and linkage and be capable of direct mounting to a
shaft up to a 3/4” diameter and center on a 1/2” shaft (default). Actuator shall
deliver a minimum output torque of 35 in-lbs. The actuator must be designed
so that they may be used for either clockwise or counter clockwise failsafe
operation. Actuators shall be protected from overload at all angles of rotation.
If required, one SPDT auxiliary switch shall be provided with one switch
having the capability of being adjustable. Actuators with auxiliary switch must
be constructed to meet the requirement for Double Insulation so an electrical
ground connection is not required to meet agency listings. Actuators shall be
cULus listed, have a 5 year warranty, and be manufactured under ISO 9001
International Quality Control Standards. Actuators shall be as manufactured
by Belimo.

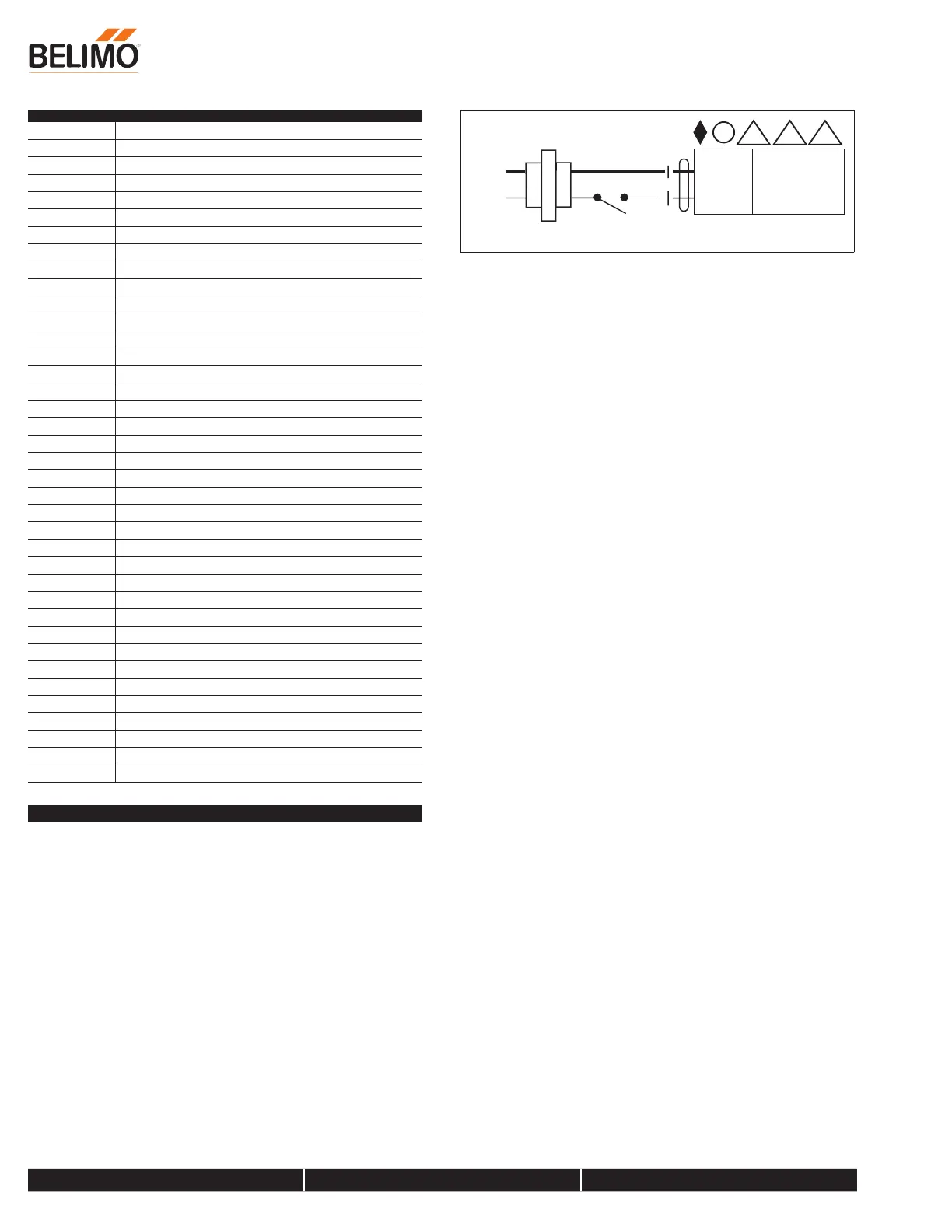

Blk (1) Common
Wht (2) + Hot
olts
1 3
11
24 VAC Transformer
A
On/Off
LF24 US - Damper Actuator
On/Off, Spring Return, 24 VAC/DC
800-543-9038 USA 866-805-7089 CANADA 203-791-8396 LATIN AMERICA / CARIBBEAN
Date created, 02/16/2017 - Subject to change. © Belimo Aircontrols (USA), Inc.
