Belimo TRANE TTF Series - Page 34

34
I20683 - Subject to change.
Installation Instructions
Quick-Mount Visual Instructions for Mechanical Installation
IND-AF2 Position Indicator
(optional)
IND-AF2 Position Indicator
(optional)

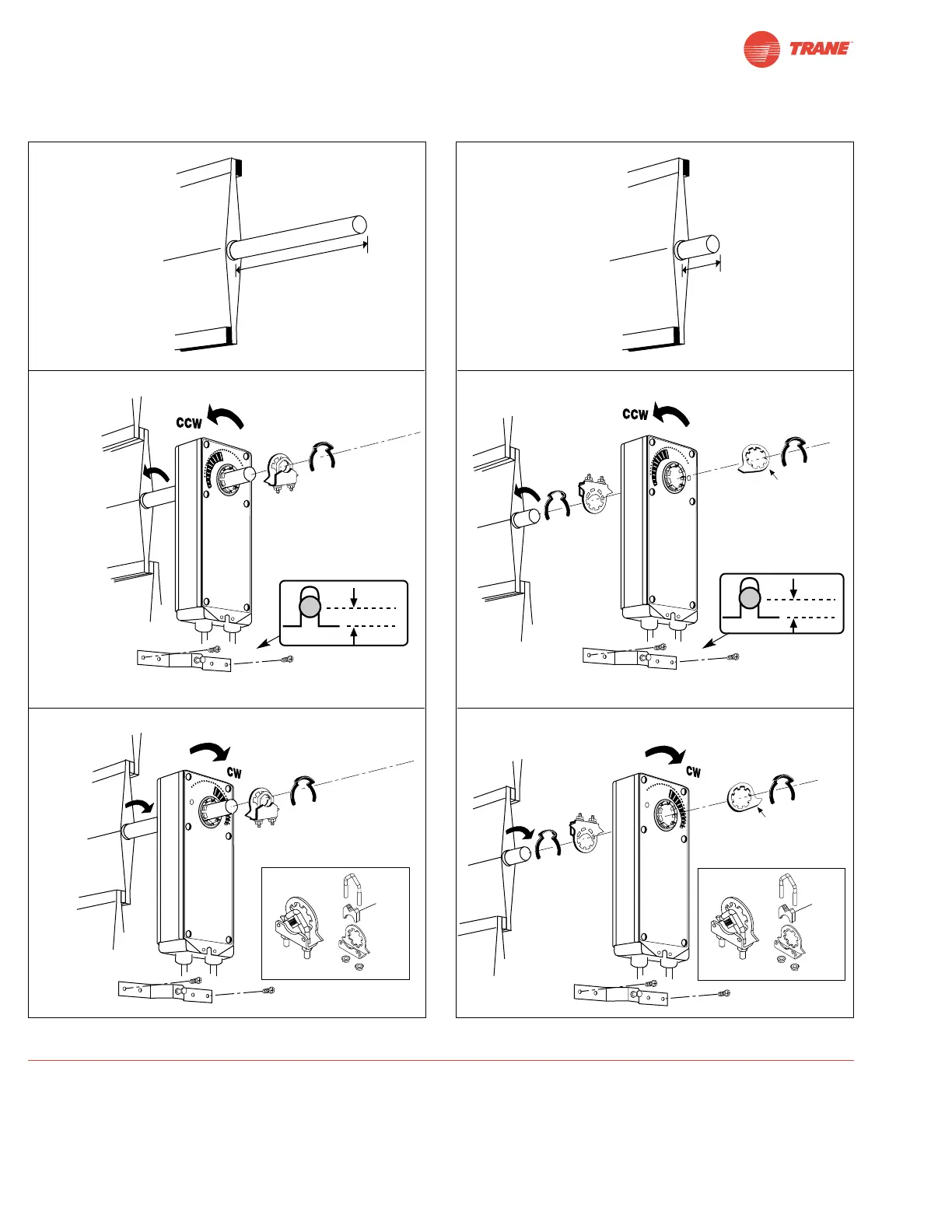

Quick-Mount Visual Instructions
1. Rotate the damper to its failsafe position. If the shaft rotates
counterclockwise, mount the “CCW” side of the actuator out.
If it rotates clockwise, mount the actuator with the “CW” side
out.
2. If the universal clamp is not on the correct side of the
actuator, move it to the correct side for ease of installation.
3. Slide the actuator onto the shaft and tighten the nuts on the
V-bolt with a 10 mm wrench to 6-8 ft-lb of torque.
4. Slide the anti-rotation strap under the actuator so that it
engages the slot at the base of the actuator. Secure the
strap to the duct work with #8 self-tapping screws.
NOTE: Read the “Standard Mounting” instructions, on the next
page, for more detailed information.
min. 3 1/2"
[90]
min. 3/4"
[20]
Dimensions [All numbers in brackets are in millimeters.]
Remove
for 3/4”
to 1.05”
shafts
Remove
for 3/4”
to 1.05”
shafts
1/4” [6.35 mm]
1/4” [6.35 mm]
