Belnea
12
Carefully lift the monitor out of the packaging and make
sure that all components are included (see Figure 1).
Assemble the tilt/swivel base to the monitor (see the next
section).
Save the original box and packing material in case you
have to ship or transport the monitor.
➧ ➧
➧ ➧
➧ Assembling the tilt/swivel base ..............................
1. Place the monitor screen down on a soft surface
(pillow, blanket or similar object).
2. Align the latches of the tilt/swivel base with the
openings on the bottom of the monitor and push the
base forward until it locks into place.
CONNECTING
UNPACKING
➧ To connect the monitor to the power source ........
1. Connect the separate power cable to the monitor and
a grounded outlet (see figure 3).
1. First, turn on your PC, and then turn on your Belinea
monitor. The status indicator (see
g
in figure 4) should
light up green.
2. Adjust the image to meet your requirements (see the
following sections ”Image settings using the OSD
menu” and ”OSD Menu Functions”).
➧➧
➧➧
➧ Disassembling the tilt/swivel base ..........................
1. Push the locking tabs at the back of the base inward
while pulling the base backward (toward the monitor’s
back). Now the base should come off easily.
➧ To connect the monitor to your PC ........................
1. Make sure that the PC and monitor are unplugged.
2. Connect the 15-pin signal cable to the monitor and
the PC (see figure 2).
STARTUP
3. If there is no image displayed on the monitor, consult
the section “Troubleshooting”.

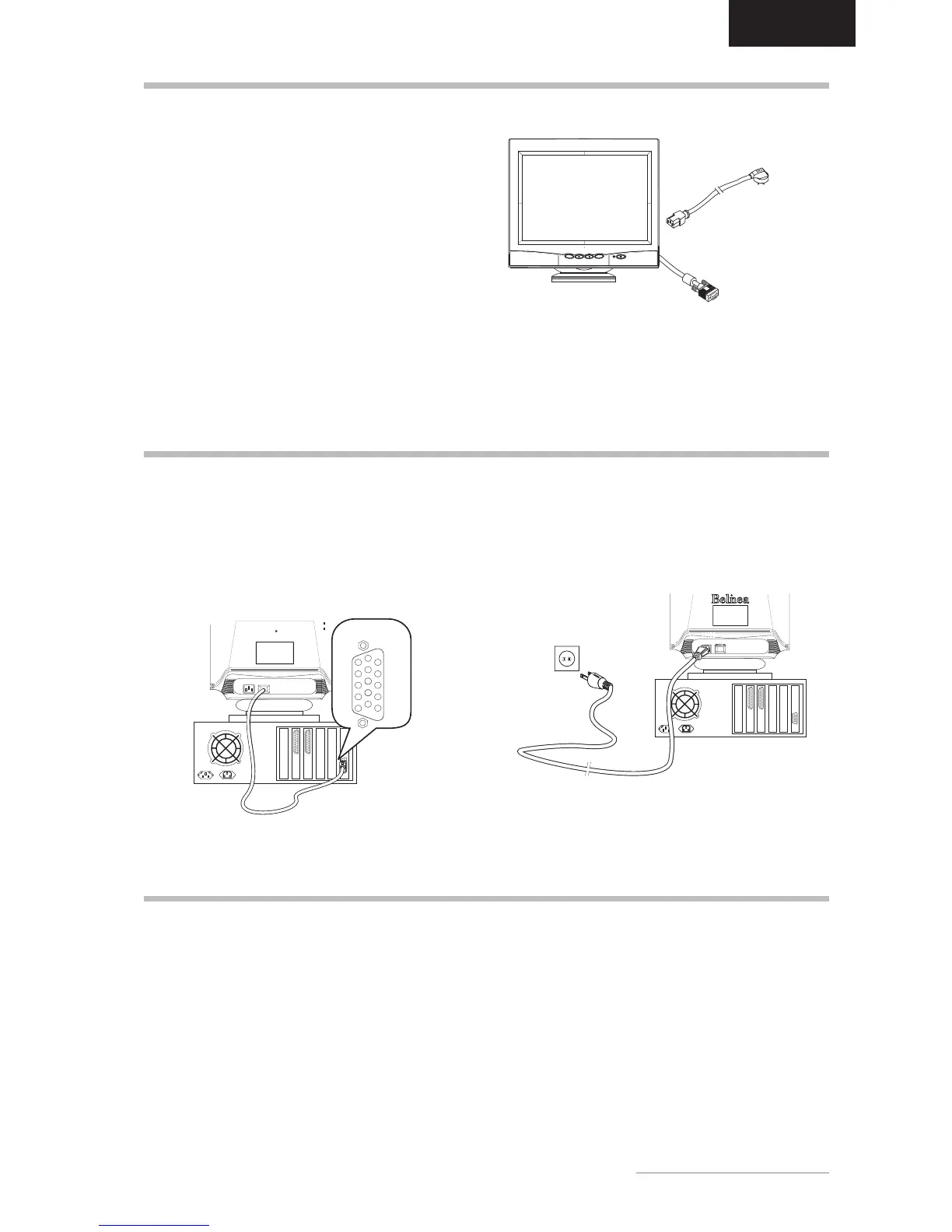

Figure 1. Monitor with Tilt/Swivel Base
Power Cord
Signal Cable
(built-in)
Signal cable
Figure 2. Connecting the monitor to the PC
Figure 3. Connecting the monitor to the power source
