PS/2 INSTALLATION
13
PS/2 INSTALLATION
12
CONNECT THE COMPUTER:
4. Connect the first computer’s VGA cable to the SOHO Series
KVM Switch. Using the VGA cable (Belkin Part# F3X1105-XX,
F3X1835-XX or F2N209-XX), connect the male end of the cable to
the VGA port to the computer, and the female end on the VGA
port to the top of the SOHO Series KVM Switch labeled CPU1.
See fig. 6.

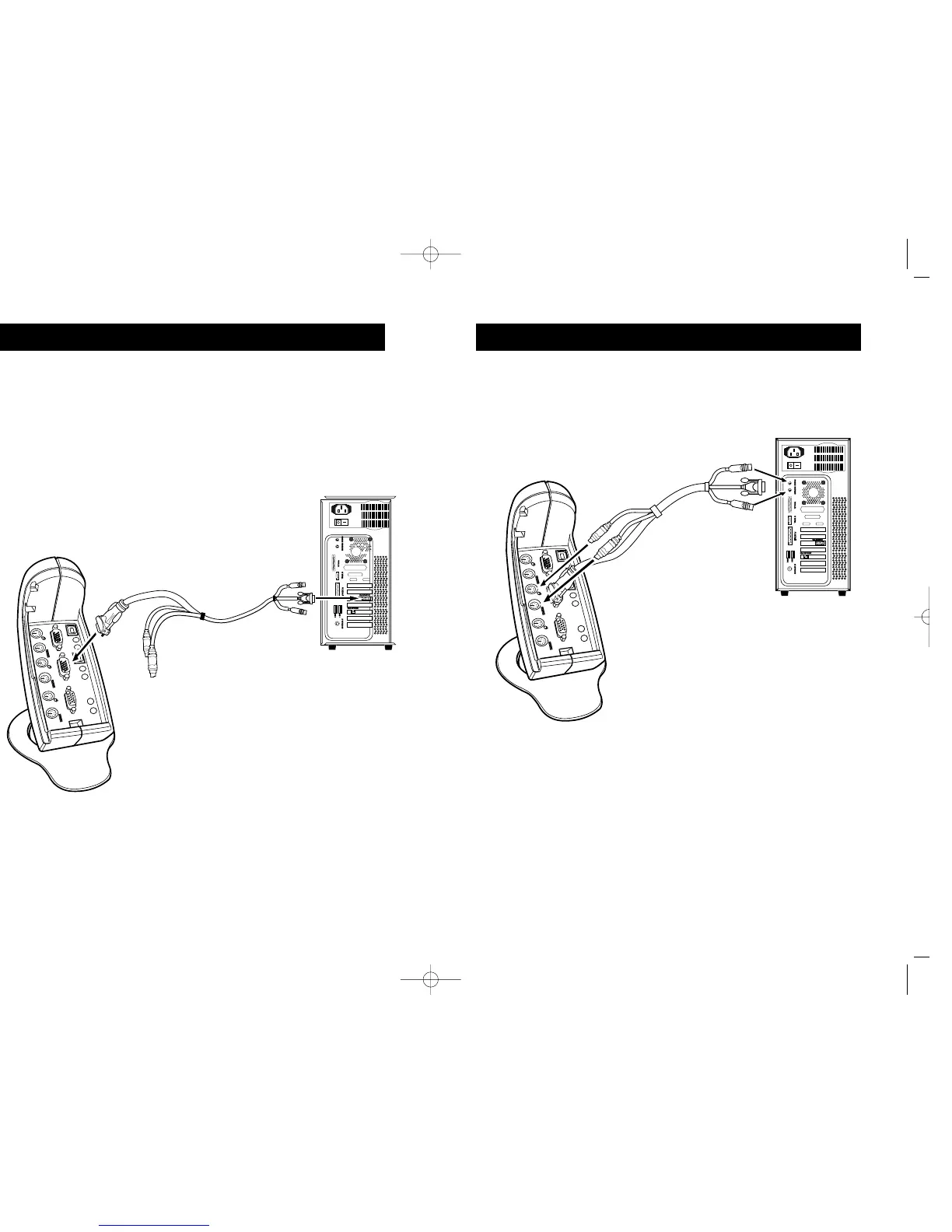

fig. 6
5. Connect the PS/2 keyboard and PS/2 mouse cables to
the appropriate ports on the section labeled CPU1. (Belkin Part#
F3X1105-XX, F3X1835-XX, or F2N036-XX). See fig. 7.
6. Repeat steps 4 and 5 for each additional computer
you wish to connect.
fig. 7
