9
M. USING TWO PEOPLE, CAREFULLY LIFT the TV and PLACE the post of the TOP Mounting Bar (F) into the key
hole slot of the TOP Mounting Bracket (B). PLACE the thr
eaded post of the BOTTOM Mounting Bar (G) into
the vertical slot of the BOTTOM Mounting Bracket (C). SECURE the threaded posts of the BOTTOM
Mounting Bar (G) to the REAR of the BOTTOM Mounting Bracket (C) using two 5/16" nuts (3) and the
supplied wr
ench (7) tool. TIGHTEN FULL
Y BUT DO NOT OVER TIGHTEN.
N.
CMS
®
(Cable Management System) holes ar
e provided in the rear of both upright frames to hide your wir
es
and inter
connect cables.
USE TWO PEOPLE WHEN MOVING THE CABINET WITH THE FLA
T P
ANEL MOUNTING SYSTEM AND MOUNTED
TV BACK AGAINST THE W
ALL. BE SURE THA
T ONE PERSON HOLDS THE TV WHILE THE SECOND PERSON
SLOWLY SLIDES THE CABINET INTO POSITION.

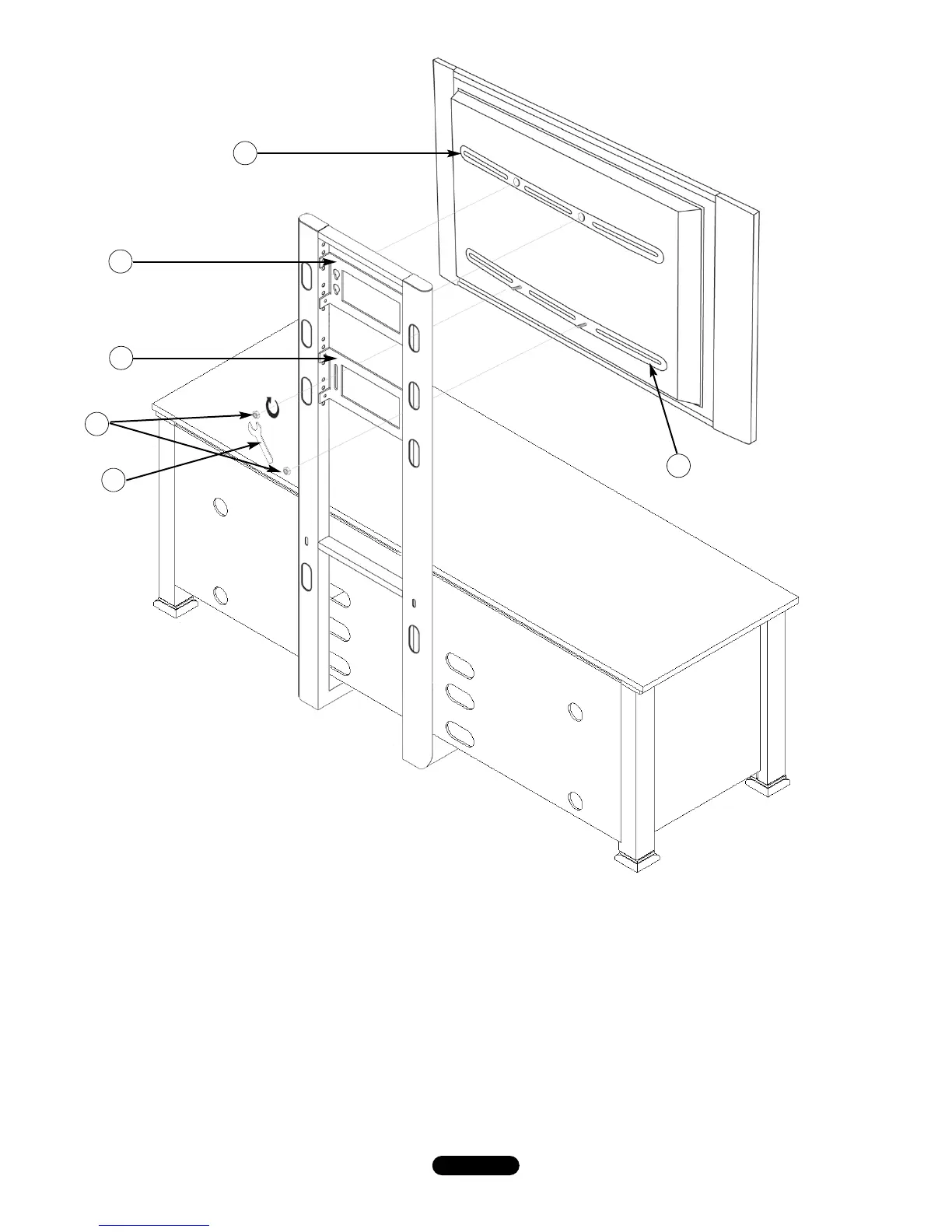

Fig. 7
F
G
B
C
3
7
To Next Page
