Bell'O PP-59 - Assembly Step 4: Position TV and Top Bracket; Assembly Step 5: Measure for Bottom Bracket; Assembly Step 6: Attach Bottom Mounting Bracket

B
C
2
Fig. 4
D.

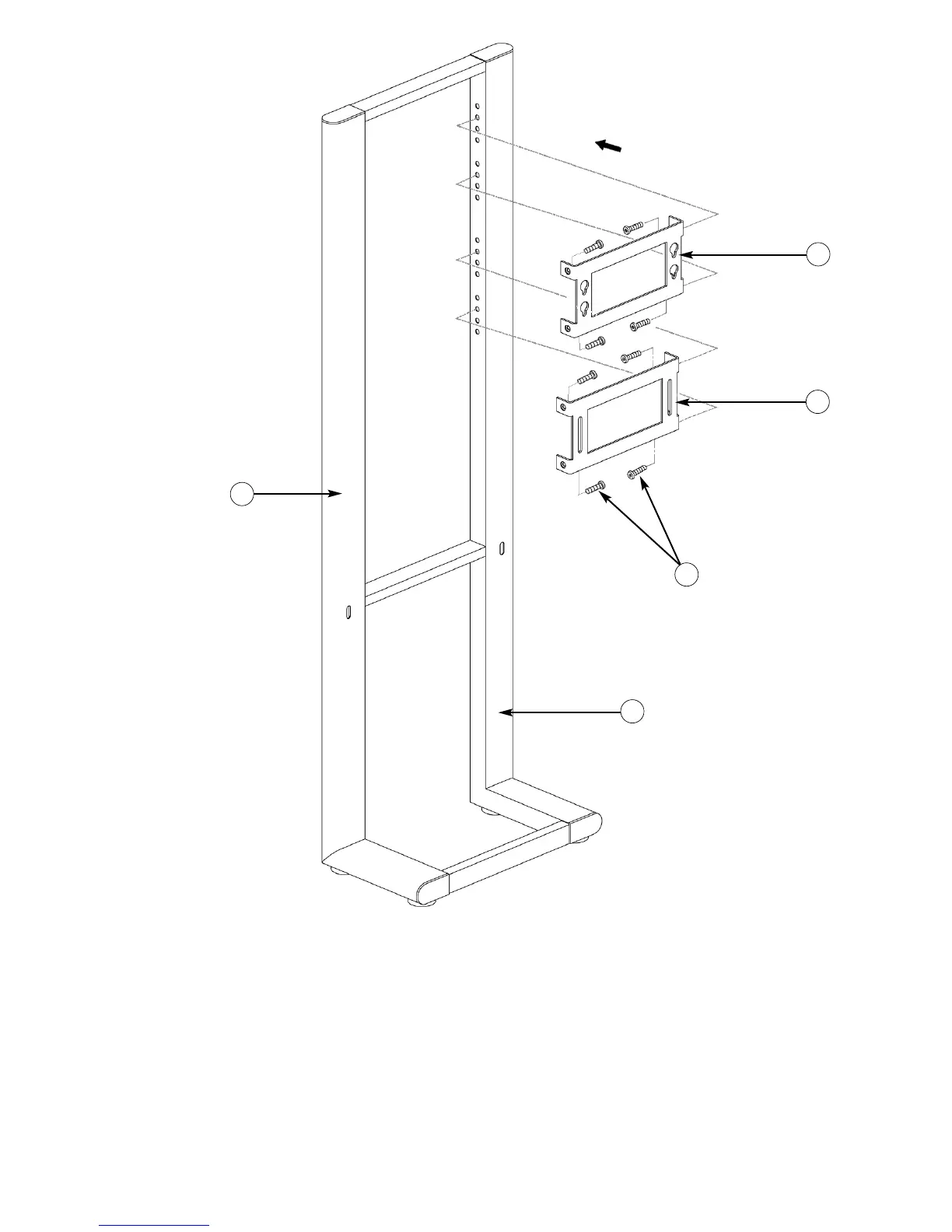

USING TWO PEOPLE, HOLD the TV up to the partially assembled Flat Panel Mounting System to approximate the height
location where you want the TV to be mounted and to determine the location of the TOP Mounting Bracket (B).
E. SECURE the TOP Mounting Bracket (B) in the desired holes using the larger 15mm screws (2) with the bracket front
facing outward in the same direction as the L-shaped base of the Right (D) and Left (E) upright frames as shown in
Fig. 4. TIGHTEN FULLY.
F. Measure the distance between the TOP and BOTTOM Mounting Bars to determine the proper location of the BOTTOM
Mounting Bracket (C).
G. SECURE the BOTTOM Mounting Bracket (C) in the proper holes using the larger 15mm screws (2) with the bracket front
facing outwar
d in the same direction as the L feet on the Right (D) and Left (E) upright frames as shown in Fig. 4.
TIGHTEN FULL
Y
.
E
D
