Page 1-27
Installation and Setup

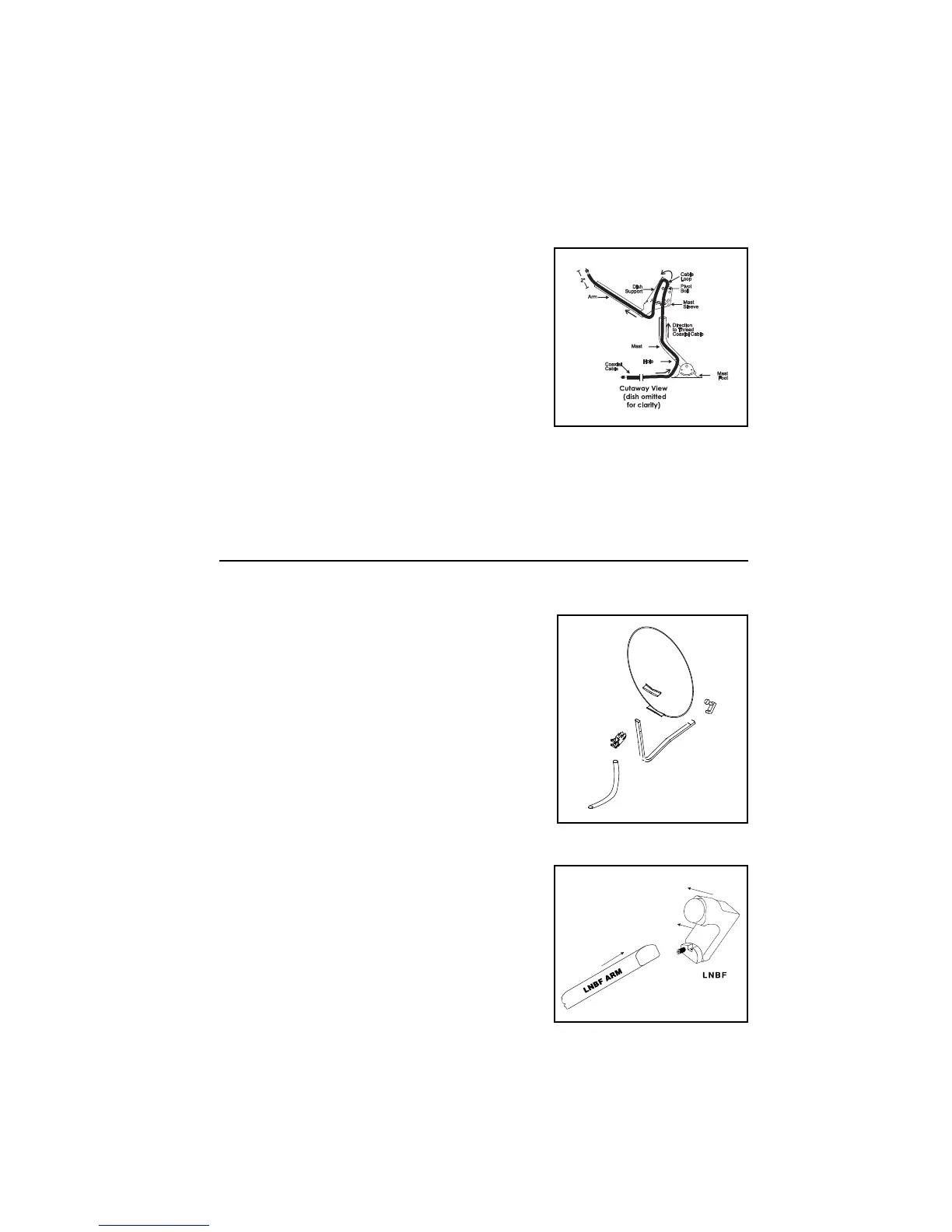

Assembling the 90cm Dish
3. Attach the LNBF to the LNBF cable(s).
Slide the weather boot up securely to cover the
cable/LNBF connection at the base of the LNBF.
4. Slip the LNBF onto the end of the arm, until
contact is made with the LNBF bracket stops
and put in screw through arm and LNBF.
5. Route and fasten the cable in a neat, unobtrusive
manner in such a way so it cannot be damaged by
accident. Connect the opposite end of the cable to
your receiver, to the connector marked
ÒSatellite InÓ.
6. See page 1-36 for instructions concerning safety grounding.
The assembly and mounting of the 60 cm Dish is complete.
Proceed to page 1-35 Installing the Receiver.
STEP 3.3: ASSEMBLING THE 90 CM DISH
STEP 3.3A: PRE-ASSEMBLE THE PARTS (90 CM DISH)
ItÕs best to pre-assemble the dish indoors, so that it is
all ready to place on the mast outdoors, quickly and
easily ... especially if itÕs cold out.
The complete system consists of three main parts: the
dish mount, the dish assembly, and the receiver. The
mount consists of the foot (base plate) and a bent pipe
called the mast. The dish assembly consists of the
antenna, or dish, the dish support bracket, the (LNBF)
low noise amplifier, and the LNBF support arm. The
receiver is also fully assembled.
Pre-assemble the Dish as follows:
1. Assemble the dish as indicated in the instructions
which are included in the antenna box.
