Single & Multi Belt Tensioning Procedure
1. This cross-firing laser method is the easiest and most accurate way to measure belt tension.
2. Look up the recommended measurements and tension values from the belt manufacture and or
the machine provider
3. Measure belt span. (See Diagram 1)
4. Position O-ring on the tester scale at this measured length. The scale is 10” per increment. 150”
Maximum Span. (Diagram 2)
5. Set Up and Measurement for the Angle Brackets & Laser Bats
1. Mount Mag brackets to pullies as shown. (Diagram 3)
2. Mount the steel adapter plates to the Mag brackets as shown. (Diagram 3 &4)
3. Mount 2 BATS flat on the Mag bracket adapter plates as shown. (Diagram 3 & 4)
4. Adjust the BATs so the green lasers are on the opposing BAT center white Glowline® targets.
5. Press the power on off button on the BT-357D.
6. Zero the BT-357D by pressing the ZERO button

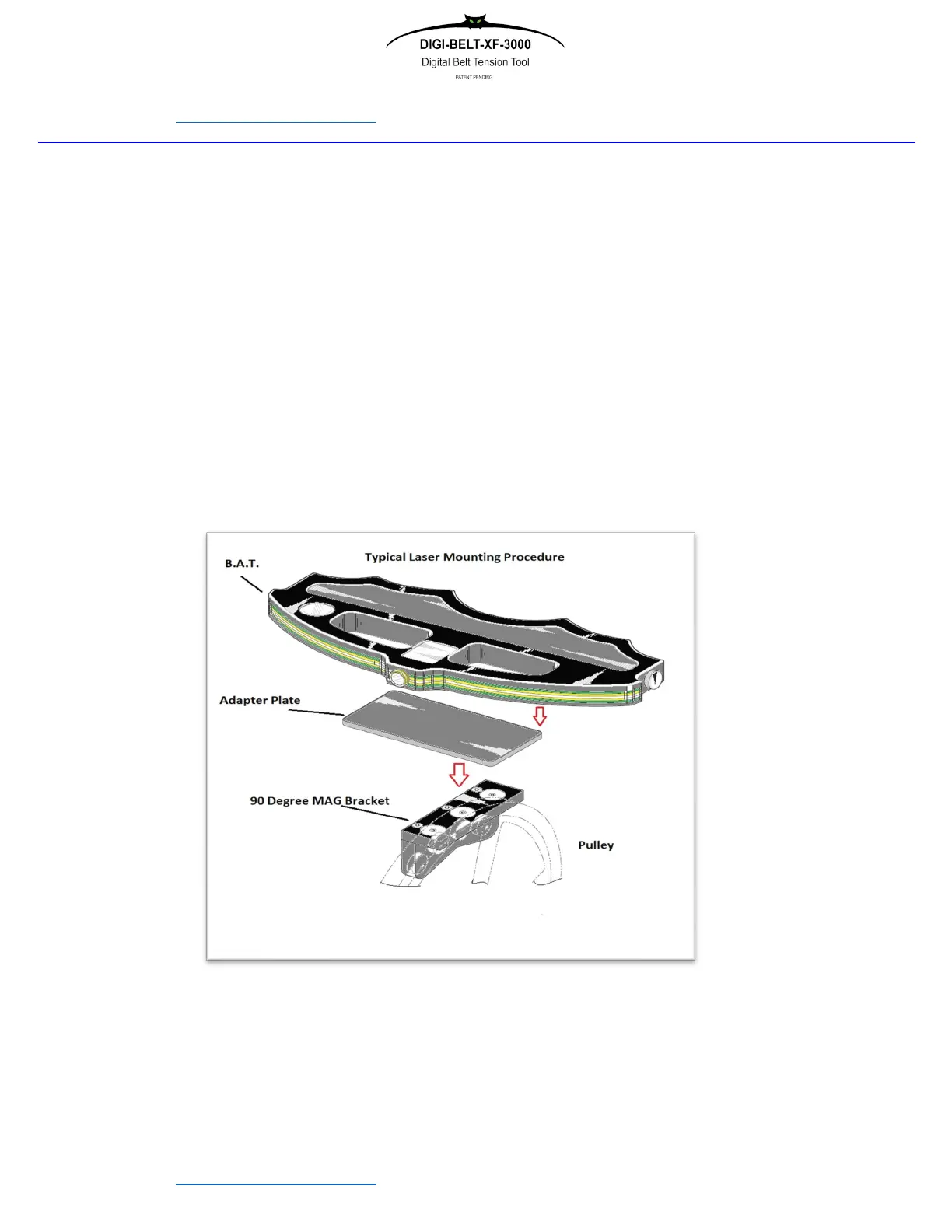

Diagram 3: Laser B.A.T. and MAG Bracket Set Up.
