Section 3
Digi-Belt™ XF B.A.T. Laser
Wide and Banded Belt Tensioning Procedure

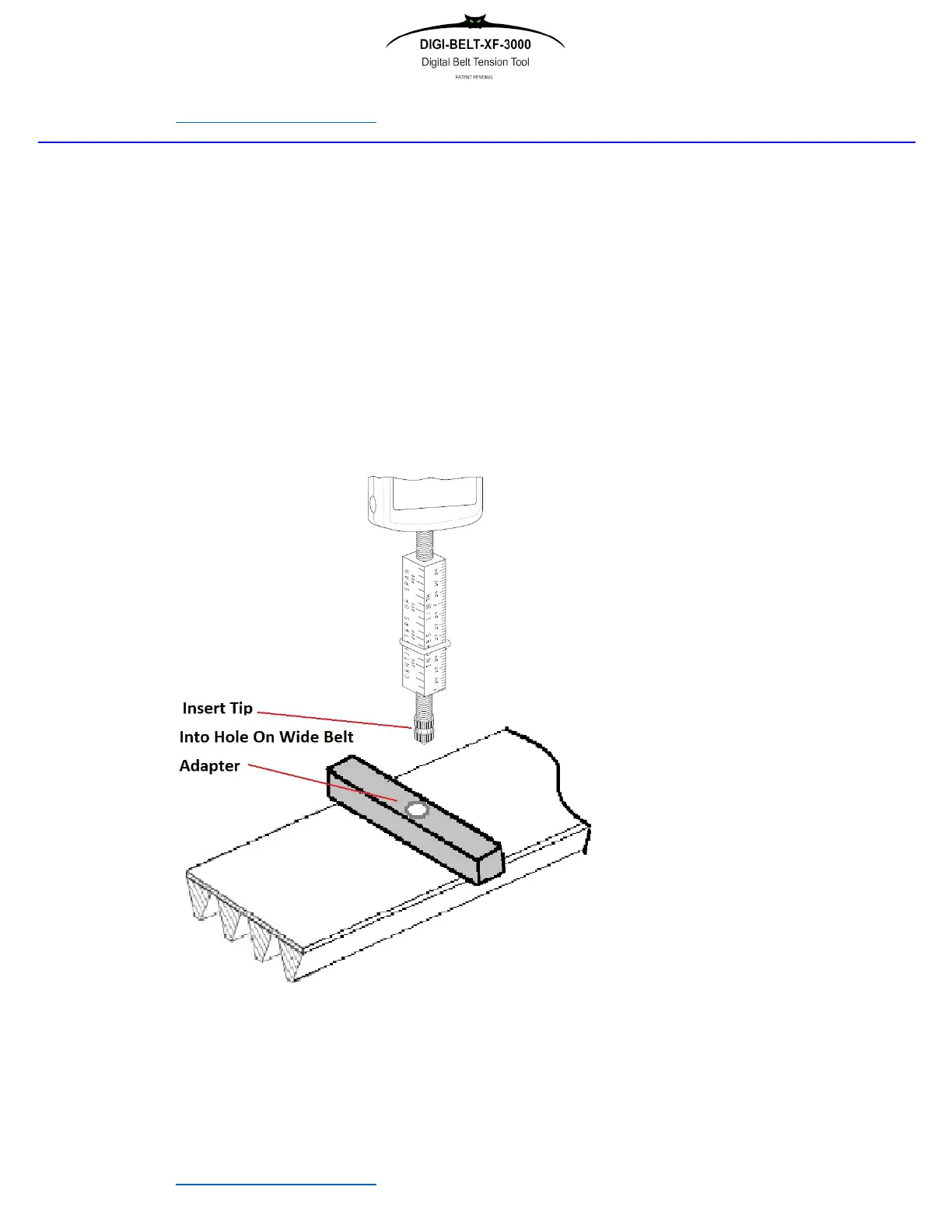

1. Procedure for using the wide belt adapters for wide belts, banded belts, toothed belts, timing
belts etc.
2. Select the Wide Belt Adapter bar the best suits the belt being tested.
3. The brass tip of the Deflection Span Scale must be in contact with the bottom of the wide belt
adapter.
4. The measurement procedure is the same described in Section 2.
