INSTALLATION
GUIDE

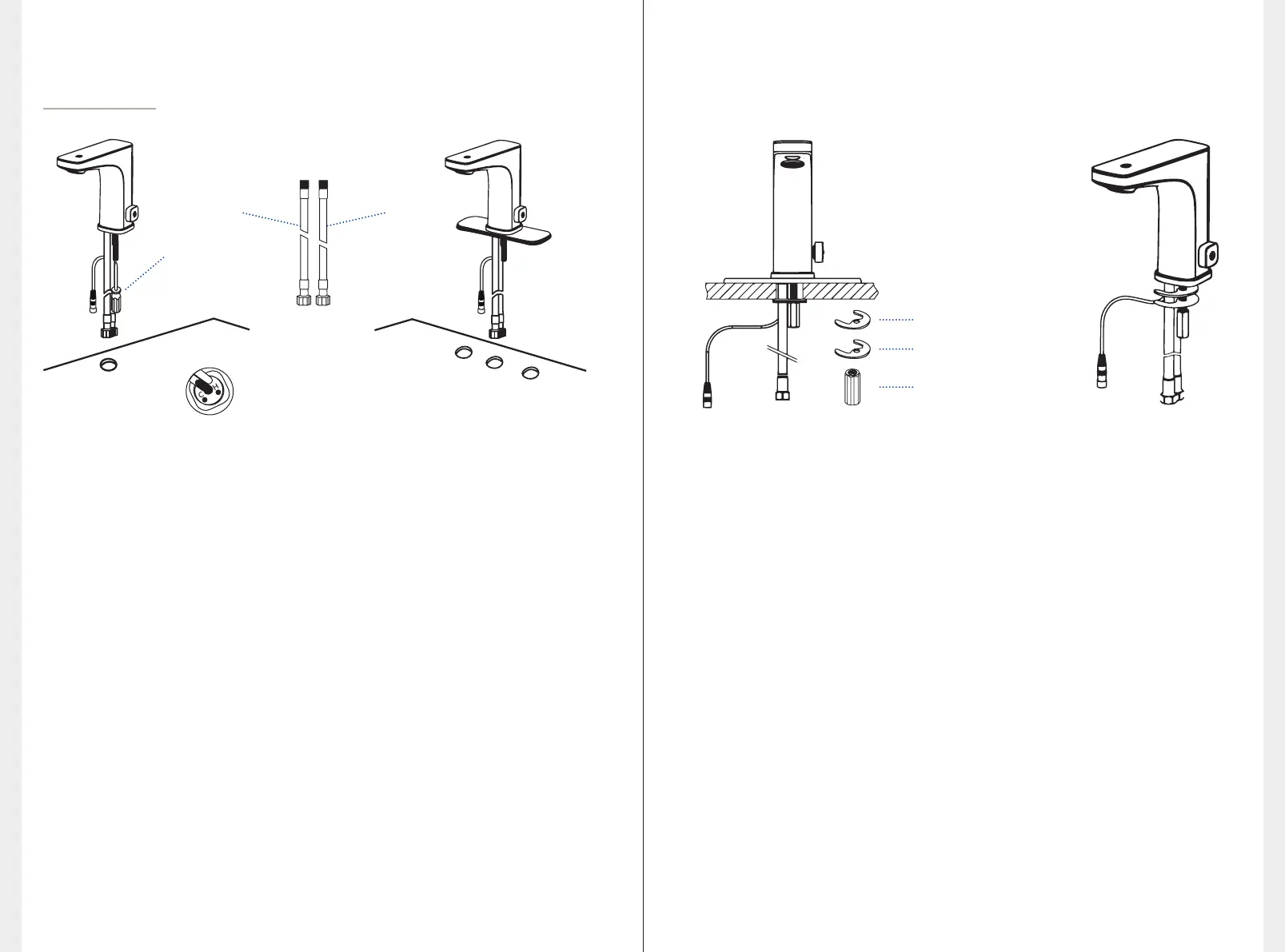

Single Hole Installation
Securely attach the hoses to the faucet. Put the hoses and data cable
through the faucet mounting hole and fix the faucet on the sink.
Three Hole Installation
Securely attach the hoses to the faucet. Put the hoses and data cable
through the deck plate and faucet mounting hole. Fix the faucet on the sink.
Rubber Gasket
Slide the rubber gasket first and the metal washer second. Then install
the nut onto the screw. Tighten the nut using an adjustable wrench.
INSTALLATION INSTALLATION
Tighten with
screwdriver
Make sure to install the hot
and cold water lines in
accordance with the markings.
“Hot” - Red
braided hose
“Cold” - Blue
braided hose
Rubber Gasket
Metal Washer
Nut
To Next Page
