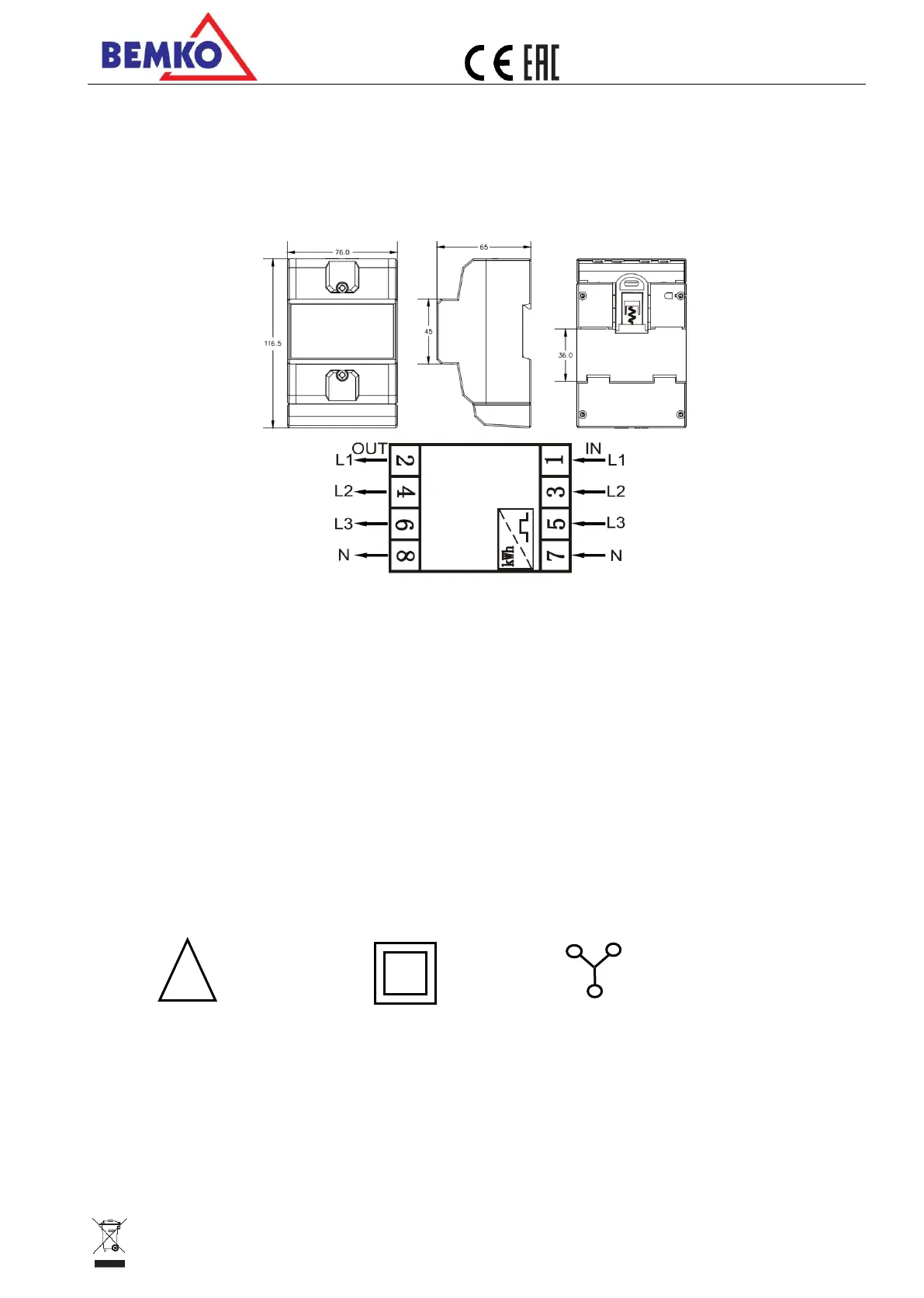

Installation and connection of the meter
Transportation and storage
It must be packed when transporting, it cannot be vibrated and struck tempestuously. Its pack should be accordance with IEC61036<The universal technical condition for instruments and meters pack>. When
storage it should not pile up more than 5 layers, and the storehouse must be clean ,the temperature should be between -20°C --+70°C, the humidity is not over 85%, any cautery gas and mildew cannot be in
the air.
Assurance term
The manufactory will repair or exchange the products while the lead seal is still exited, within 18 months, when discovering the products not accordance with the technical specification.
SAFETY
This instrument has been constructed and tested in accordance with IEC 61036 / EN61036 class 1 standards and left the production factory in perfect condition of technical safety. In order to maintain these
conditions and to ensure safe operation, the user must comply with the instructions. During opening of covers or the removal of parts, expect carried out by hand, live components may be stripped. The
connection points may also be live. Before carrying out any compensation, servicing, repair or replacement of parts requiring the instrument to be opened, it must be disconnected from all power sources. The
capacitors inside the instrument may be charged even after it has been disconnected from all power sources.
If the safe use of the instrument is no longer possible, it must be taken out of service and precautions taken against accidental use.
Safe operation is not possible in the following cases:
-when the instrument shows clearly visible damage.
-when the instrument no longer works.
-after lengthy storage in unfavorable conditions.
-after serious damage incurred during transport.
Operator safety
Read this pages carefully before installing and using the instrument.
The instrument described in this manual is intended for use by suitably trained staff only. Maintenance and / or repair operations must be carried out – exclusively – by qualified, authorized staff. For proper,
safe use of the instrument and / or repair it is essential that the person instructed to carry out the procedures follow normal safely precautions.
Symbols ! Read the instructions Double insulation 4 wires network/3 drives system
Precautions in case of break-downs
In case of suspect that the instrument is no longer safe, for example because of damage incurred during transport or use, it must be taken out of service and precautions taken to prevent accidental use. Contact
authorized technicians for control and any repairs.
Preliminary inspections:
When the instrument is received, check that it is complete and has not been damaged during transport. For any problem contact the after-sales services for repairs or replacements.
Safety instructions
Measurement and power supply voltage:
The instrument is able to take a three-phase voltage of:
3×127Vphase-neutral; 220V phase-phase (-20%)1VA;
to 3×230Vphase-neutral; 400V phase-phase (+15%)1VA;
Frequency ranges from 50 to 60Hz.
While the meter is connected, the furnished covers must be in place.
EN: Produced after 13th August 2005 Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with Your Local Authority or retailer for recycling advice.
