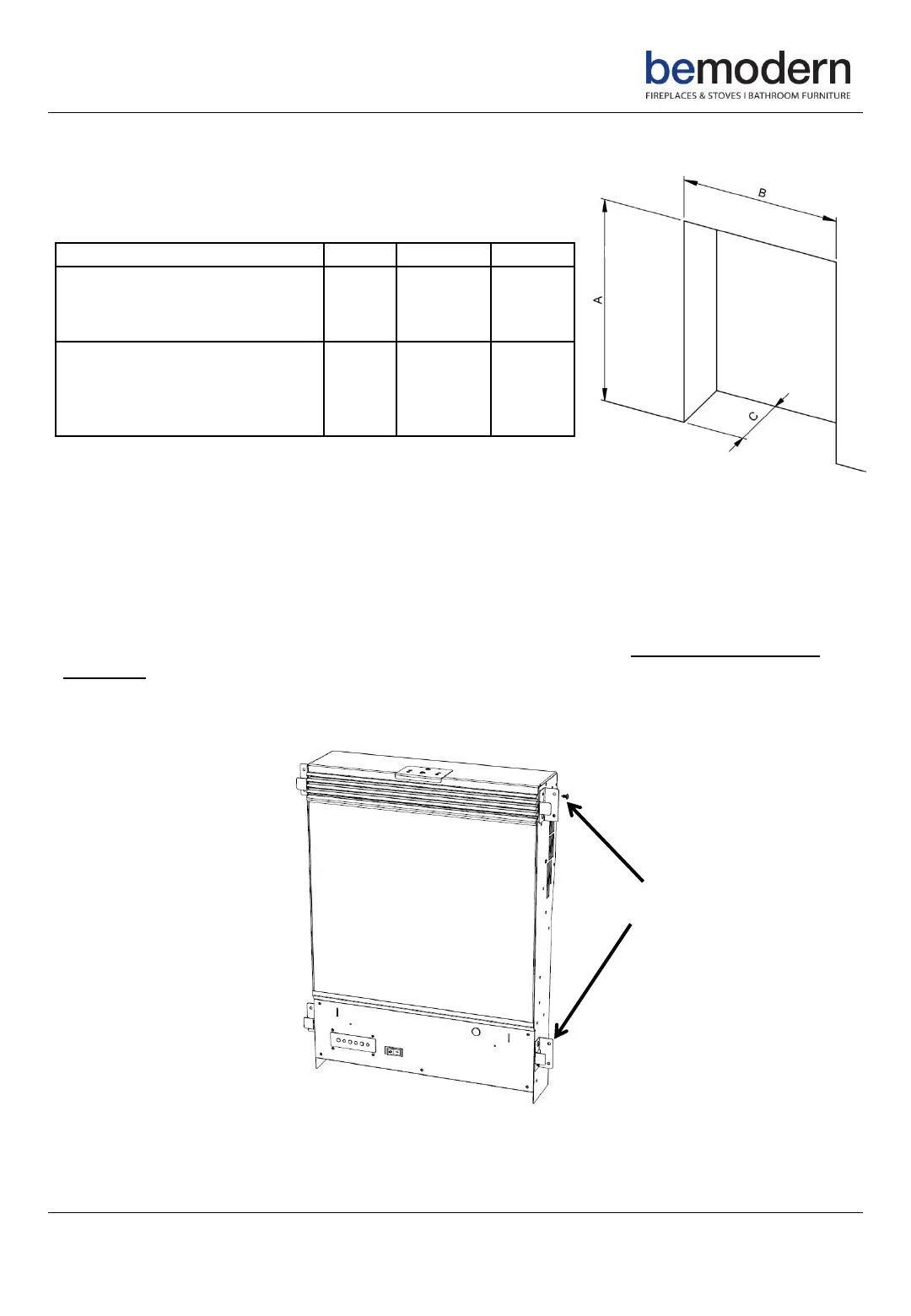

Securing the Appliance
Prior to installation / securing the fire select the preferred fixing method.
A. Securing the fire into position using the fixing holes in the rebate stops.
B. Securing the fire using the back panel clamp.
Back panel / cavity opening size
Model A B C
Model 2893 – 16” Version 565 413 75 min
Model 2921 - 22” Version 595 570 75 min
Fixing method A.
Position the fire in the back panel opening ensuring it is centralised. Depending on the
back panel medium , mark the hole positions then remove the fire, drill and plug the
holes ensuring the correct fixings are used for the wall medium. *NOTE Fixings are not
supplied. Once fixing holes have been plugged replace the fire and secure in position
via the holes in the rebate stops.
Rebate stops
Fixing Method A
