Place the four 10mm magnets on the rebate stop tabs and position the trim over the
fire magnetically securing it to the fire and holding it in position.
Fixing method B.

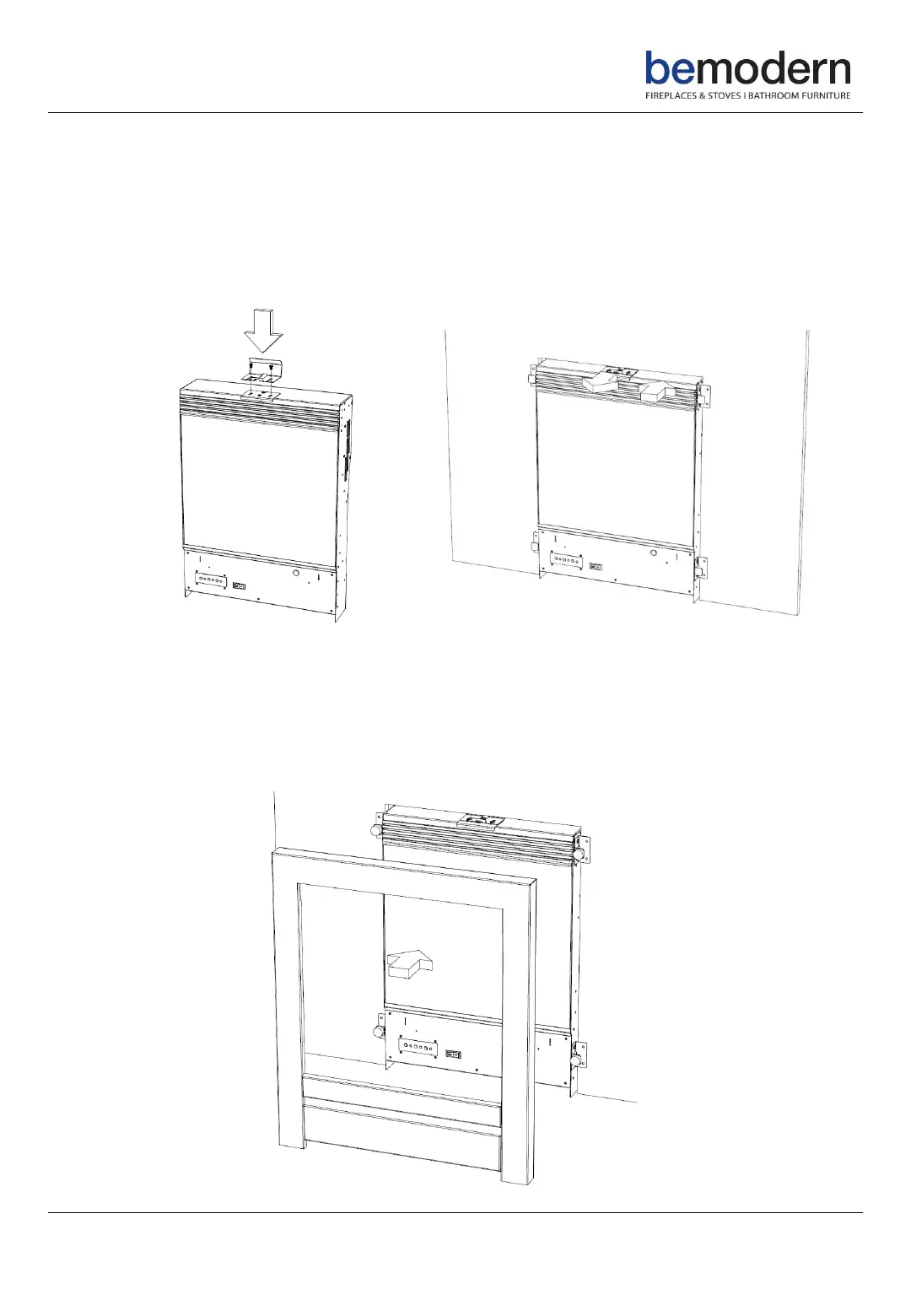

Loosely attach the back panel clamp to the top of the fire as shown below in Figure 1.
Hook the clamp under the back panel so it site behind the panel and centralise the fire
in position. Once in the correct position hold the fire against the back panel and pull
the bracket forwards Figure 2. Tighten the bracket screws to secure the fire in position
Securing the Appliance
Figure 1
Figure 2
Attaching the Trim
To Next Page
