IDENTIFICATION AND TECHNICAL SPECIFICATIONS
Model: BL 45 B
Net weight: Kg. 56,2
Ploughing version net weight: Kg. 137
Engine: 4 tempi
Engine: BRIGGS & STRATTON 5,5H5P
Engine model: 110492 INTEK/POWER
BUILT
Cc: 190
Maximum power BHP:
CV: 5,500 (Kw 4,04)
R.P.M.: 3.600
Model: BL 45 HS
Net weight: Kg. 53,5
Ploughing version net weight: Kg. 135
Engine: 4 tempi
Engine: HONDA
Engine model: GC 160
Cc: 160
Maximum power BHP:
CV: 5,00 (Kw 3.70)
R.P.M.: 3.600
Model: BL 45 K
Net weight: Kg. 56
Ploughing version net weight: Kg. 135
Engine: 4 tempi
Engine: KAMA
Engine model: KG 160
Cc: 163 cc.
Filtro aria: a bagno d’olio
Maximum power BHP:
CV: 4,9 (Kw 3.60)
R.P.M: 3.600
The engines fitted on these cultivators have the following features:
• Exhaust guard
• Recoil starter
• Dry air filter
• OIL LUBRICATION WITH: OIL AGIP SIGMA SAE 30
• Oil in the oil sump: (see engine’s use and maintenance handbook)
• Fuel: white petrol
• Safety device for both forward and backward gear stopping the tiller.
• The front gear has two speeds. The reverse gear has one speed. The machine has a double belt transmission for the engine
and a double greased chain transmission for the tiller.
• Higher speed is suggested for milling operations. Reduced speed is suggested for ploughing operations.
• Guidance handlebars can be adjusted in many positions (vertical and side adjustment).
• The tiller is 81 cm wide.
• The frame of the motorhoe is screwed (Pict. 2).
• The spur is adjustable (Pict. 3 Ref. “B”)
All the identification references (code number, engine, weight, power) are printed on the number plate on the machine. (Picture
4 Ref. “D”)
APPLICABLE ACCESSORIES
Wheels with tyres 5.00.10
Pair of differential hubs
Ballasts for wheels 5.00.10 (14 Kg. each one)
Front ballast Kg. 24
One-bottom plough with attachment
Lister with attachment
Wheels with tyres 5.00.10 can be changed with iron wheels(Ø 450)
Thin iron wheels (Ø 320) are suitable for the use of the lister.

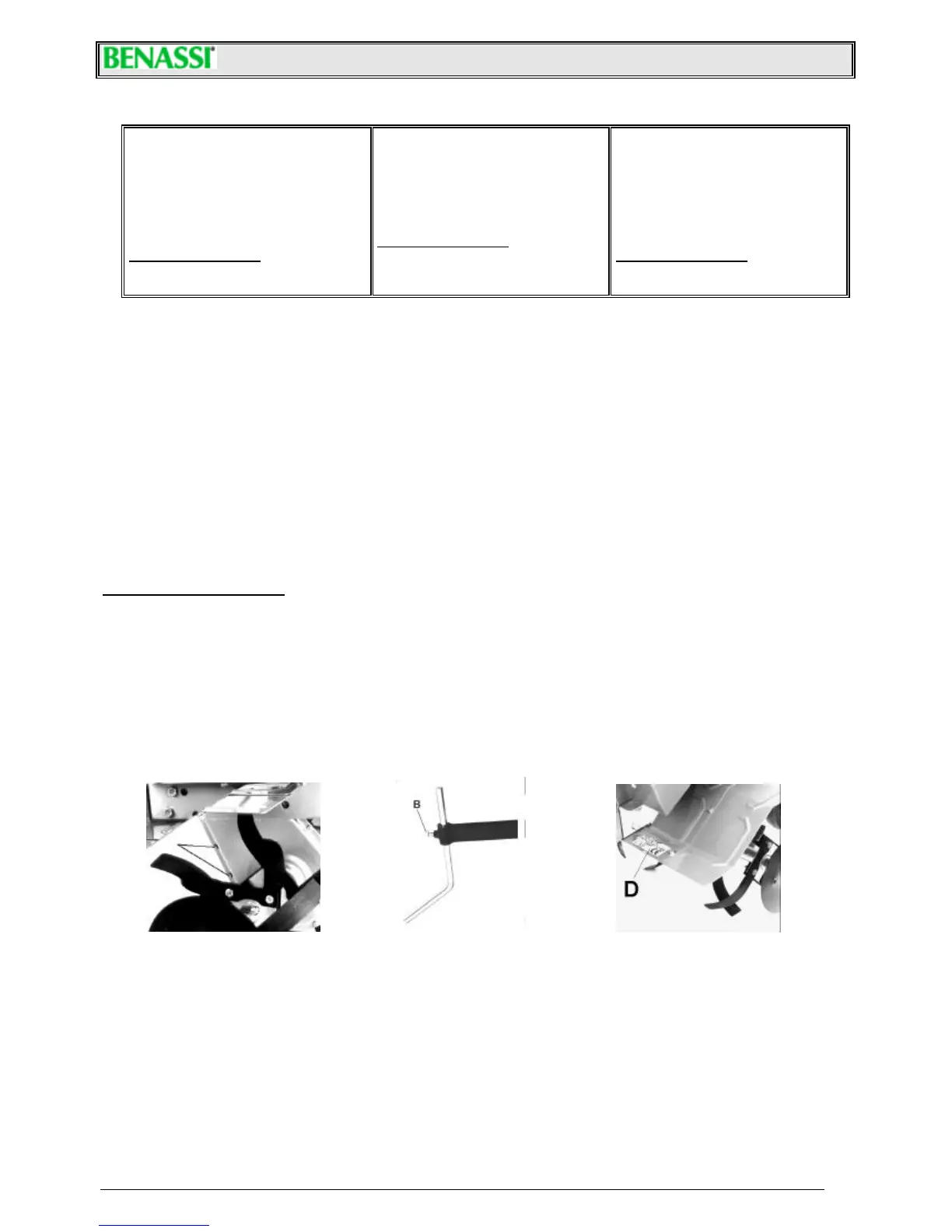

-Picture 2- -Picture 3- -Picture 4-
INSTRUCTIONS FOR MOTORISED HOE ASSEMBLY
The machine is packed in a box of the following dimensions:
◊ WIDTH: 80 cm.
◊ LENGHT: 45 cm.
◊ HEIGHT: 70 cm.
• Take the machine out of the carton box.
• Fit the two tillers to the main shaft using the delivered screws and nuts, assembled on the tillers.
• Fit the rear spur in its place using the delivered screw and nut.
• Fix the handles to the handlebar support, using parts assembled on the handlebar support.
