Bench Dog Tools PROFENCE - Parts List and Diagram

5
Quantity
1 Aluminum Fence 1
2 MDF Adjustable Fence Face 2
3 Bit Safety Guard 1
4 Dust Port 1
5 3/8"-16 T-Knob 2
6 5/16"-18 x 1
1
⁄4" T-Bolt 6
7 1" Round Knob 6
8 Knob Spacer 2
9 3/8"-16 x 2
1
⁄2" Hex Bolt (for cast iron table) 2
10 3/8"-16 x 2
3
⁄4" Carriage Bolt (for phenolic table) 2
11 3/8" Nylon Washer 2
12 Jointer Bar (Not Shown) 2

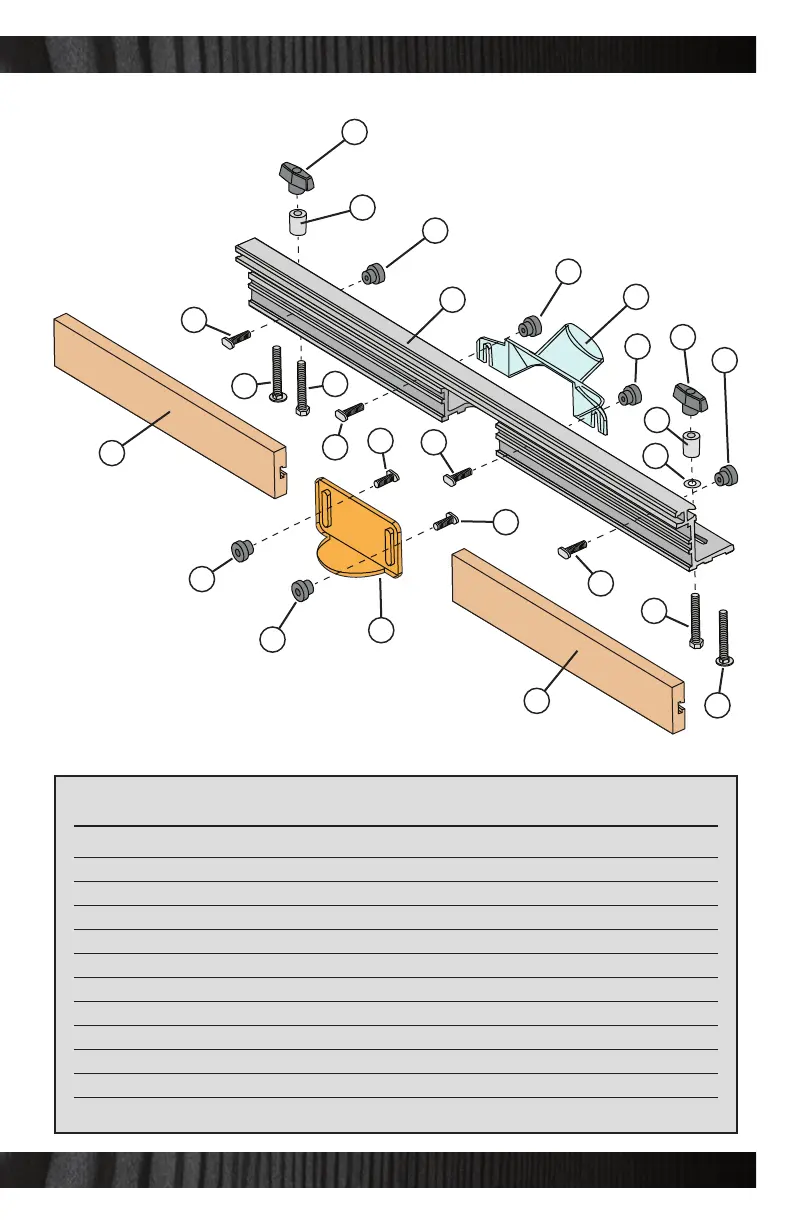

PARTS LIST
4
8
7
7
4
7
5
7
8
11
6
9
10
2
7
7
3
6
6
6
6
9
10
6
1
2
