5140-014
14” 40V MAX CORDLESS
& BRUSHLESS GARDEN TILLER
14
5. A discharged battery pack should be fully charged in approximately 120 minutes.
6. It is normal for the battery charger to hum and be warm to the touch during
operation.
7. If the battery pack does not charge properly, check to make sure the electrical
outlet is “live”.
8. Do NOT charge batteries when the work area or the battery temperature is at or
below 5°C / 41°F or above 40.5°C / 105°F.
GREEN
LIGHT
RED
LIGHT
BATTERY
INSERTED
INTO CHARGER
CHARGING STATUS
ON OFF NO Charger connected
to power supply
OFF Blink YES Battery being
charged
ON OFF YES Battery fully charged
OFF ON YES Battery is charged
but not operational
on tool. This may
indicate defective /
bad contact
on battery.
ON ON YES Charging conditions
are either too hot
or too cold

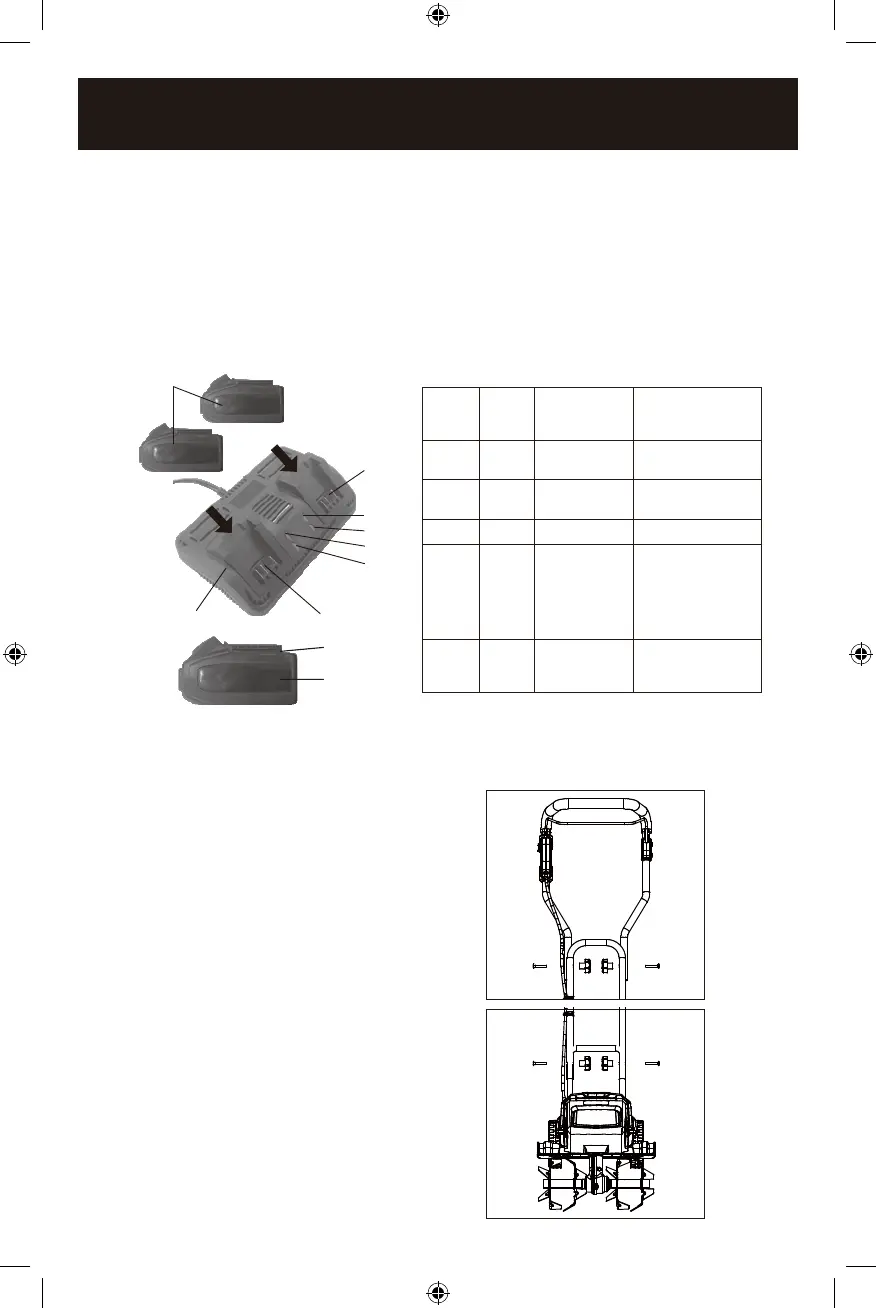

FIG. 1 FIG. 2
1
2
4
6
5
6
5
4
3
2
Installing the upper handle
1. Connect the upper handle frame
assembly to the middle frame with two of
the supplied handle knobs and bolts as
shown (Fig.3).
2. Connect the upper handle frame and
middle handle frame to the lower handle
frame with the remaining two handle knobs
and bolts as shown (Fig.4).
NOTE: Make sure that the handle
knobs are placed inside the handle
frame. Otherwise they will aect the
wheel adjustment system.
3. Clip on the cable clips to secure the
cable
FIG. 3
FIG. 4
