19

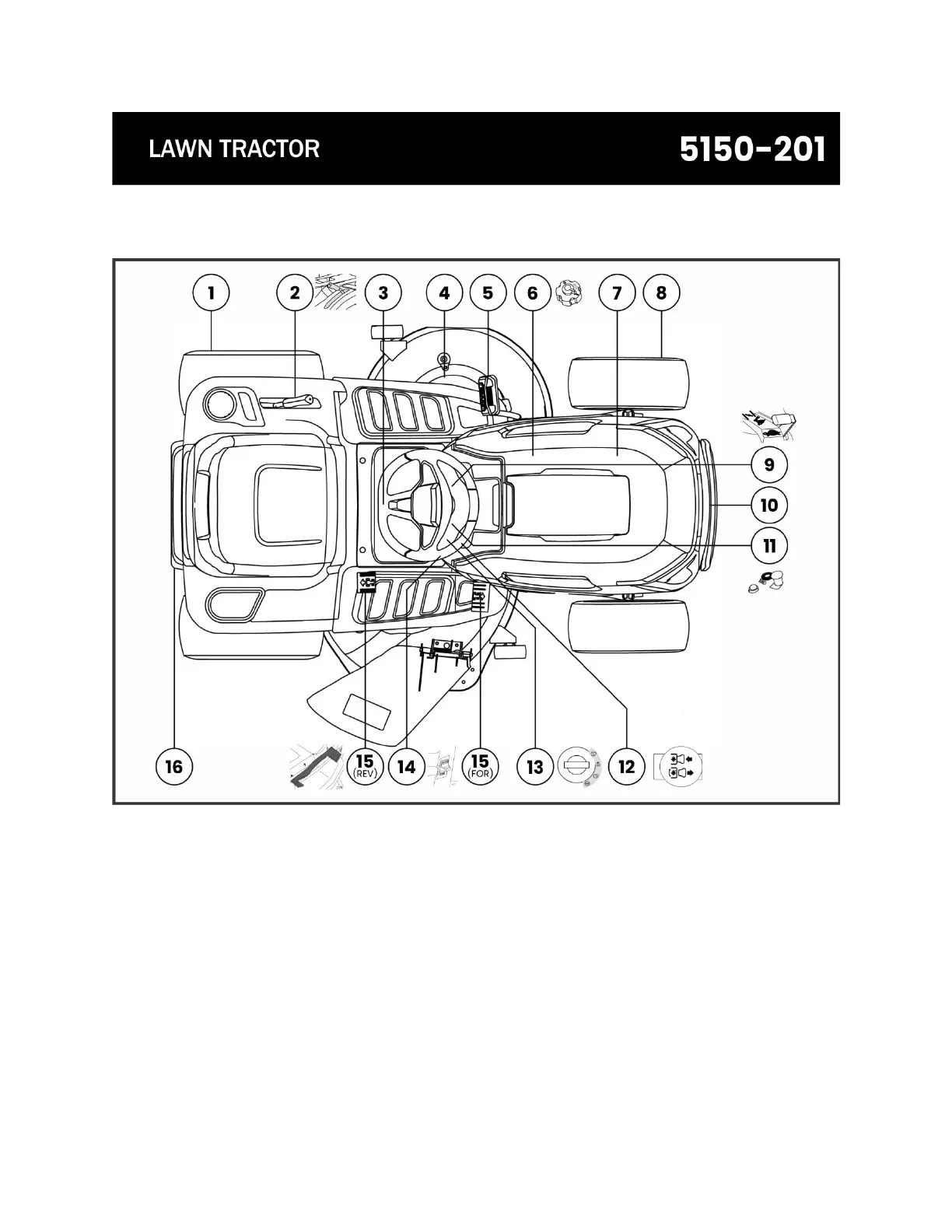

IDENTIFICATION OF THE MAIN COMPONENTS
1) Rear Wheels
2) Cutting Height Adjustment Lever
3) Steering Wheel
4) Deck
5) Brake Pedal
6) Fuel Cap / Fuel Shut Off Valve (under
Engine Cover)
7) Engine Cover
8) Front Wheels
9) Throttle Lever
10) Guard Plate
11) Reverse Mode Operation Button
12) Blade Start / Stop Knob
13) Key - Ignition Switch
14) Park Brake Lever
15) Drive Engagement (F – N – R)
16) Hydrostatic Transmission
Disengagement
