MACHINE ASSEMBLY
FITTING THE STEERING WHEEL
Position the machine flat and align the
front wheels forward.

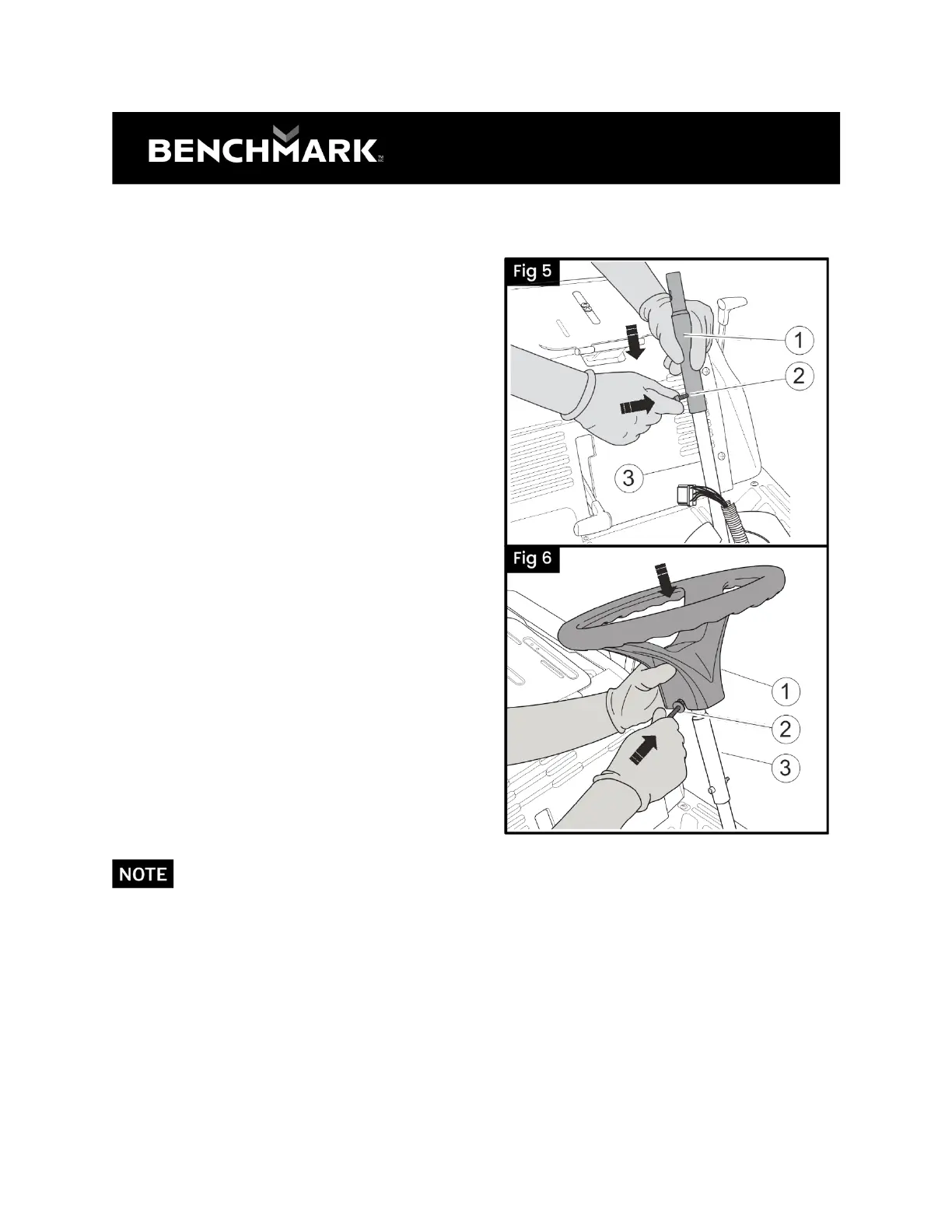

1. Fit the steering wheel column
extension (Fig 5 Part 1) on the shaft
(Part 3) and secure it with the screw
(Part 2) and nut provided. Tighten
well.
2. Position the steering wheel (Fig 6
Part 1) on the extension (Part 3) and
secure with the screw (Fig 6 Part 2)
and nut provided. Tighten well.
Pay attention to the orientation of the parts when mounting the steering wheel.
