BENDIX Wingman Advanced FLR20 - Troubleshooting;Diagnostics; Bendix Acom Diagnostics Software

17
4.0 TROUBLESHOOTING/
DIAGNOSTICS SECTION
FOR FLR10 RADAR SENSORS, SEE SD-61-4962.
Section Index
4.1 Bendix
®
ACom
®
Diagnostics Software . . . . . 17
4.2 Reading Diagnostic Trouble Codes (DTCs) . . 18
4.3 Table of DTCs and Actions to Take . . . . 19-25
4.4 Clearing DTCs . . . . . . . . . . . . . . . . 26
4.5 DTCs: Power Supply . . . . . . . . . . . . 26
4.6 DTCs: J1939 Communications Link. . . . . 26
4.7 (J1939) Test Procedure . . . . . . . . . . . 27
4.8 Troubleshooting Wiring Harnesses . . . . . 27
IMPORTANT NOTE: All vehicle diagnostic trouble
codes related to the engine, transmission,
instrument cluster, engine cruise control and
Bendix
®
ABS, ATC or ESP
®
systems must fi rst be
resolved, with no trouble codes present during
the vehicle operation while in cruise control,
before attempting to diagnose Bendix
®
Wingman
®
Advanced
™
diagnostic trouble codes.
4.1 BENDIX
®
ACOM
®
DIAGNOSTICS
SOFTWARE
Bendix
®
ACom
®
Diagnostics is a PC-based software
program available as a free download from the Bendix
web site (www.bendix.com) or on a CD from the online
Bendix Literature Center (order BW2329). This software
provides the technician with access to all the available ECU
diagnostic information and confi guration capability. For
Bendix
®
Wingman
®
Advanced
™
diagnostics, use a current
version of ACom Diagnostics.

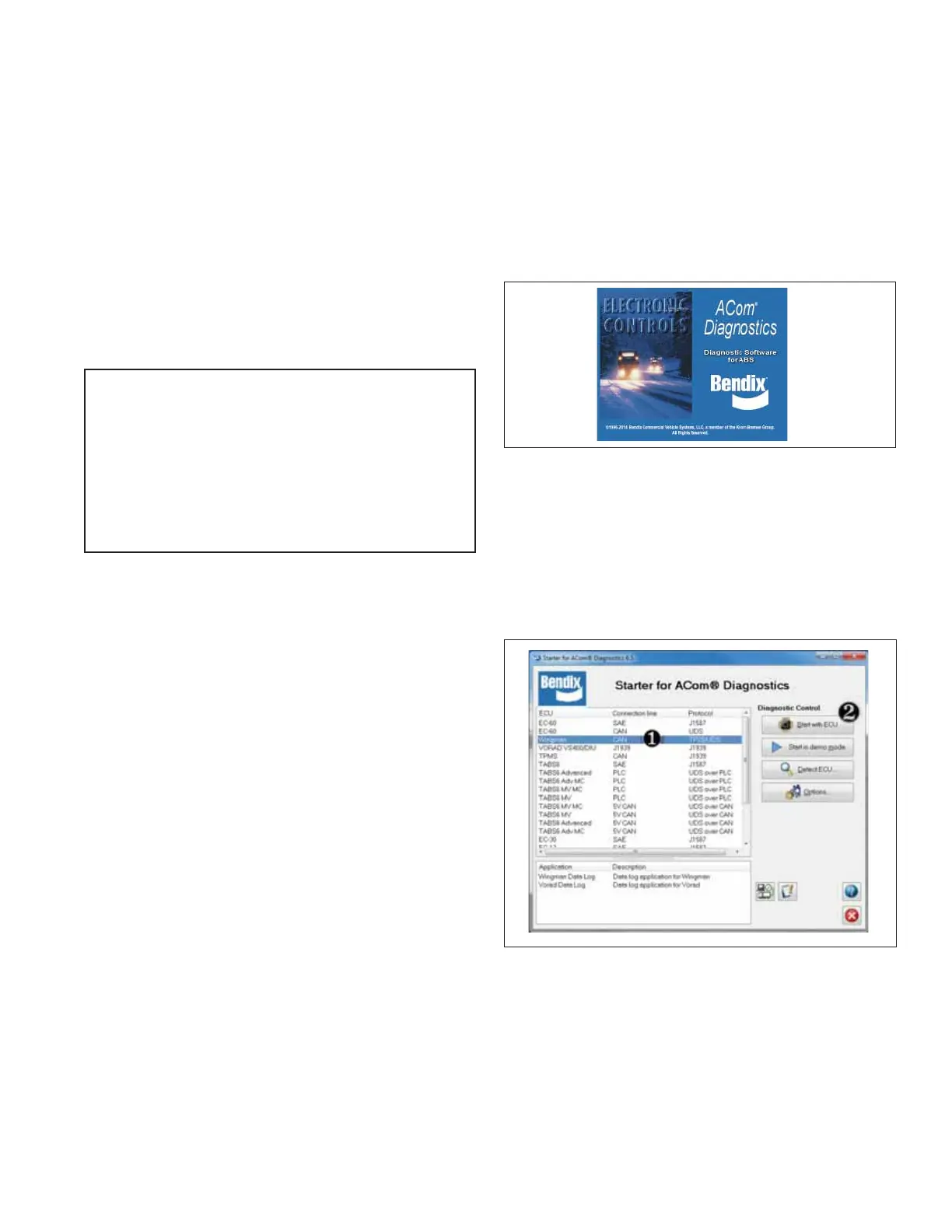

FIGURE 13 - BENDIX
®
ACOM
®
DIAGNOSTICS SOFTWARE
STARTING ACOM
®
DIAGNOSTICS
The Bendix ACom Diagnostics software can be started from
the desktop shortcut, or from the main Windows
®
screen
with “Start-Programs-Bendix-ACom
®
Diagnostics.” See
Figure 14 and also Appendix G. To begin, the technician
selects “Wingman” from the Starter screen, then “Start with
ECU” from the Diagnostic Control panel.
FIGURE 14 - STARTING BENDIX
®
ACOM
®
DIAGNOSTICS
SOFTWARE
NOTE: When using ACom Diagnostics for the fi rst time, the
service technician will be asked to select the communication
adapter for both the Wingman Advanced and Bendix
®
EC-60
™
controllers. While both controllers will use the
same physical adapter, the technician will need to indicate
which communication protocol to use for each. Once a
successful connection has been made, these steps will
no longer be necessary.
