Appendix B
Appendix B
Bendix
®
FLR20
™
Radar Alignment
B1.1 GENERAL INFORMATION ABOUT ADJUSTING THE ALIGNMENT
Accurate vertical and lateral alignment of the radar sensor is critical for proper operation of Bendix
®
Wingman
®
Advanced
™
. If the alignment is outside a certain range it could cause false warnings, missed warnings and a diagnostic
trouble code in the system.

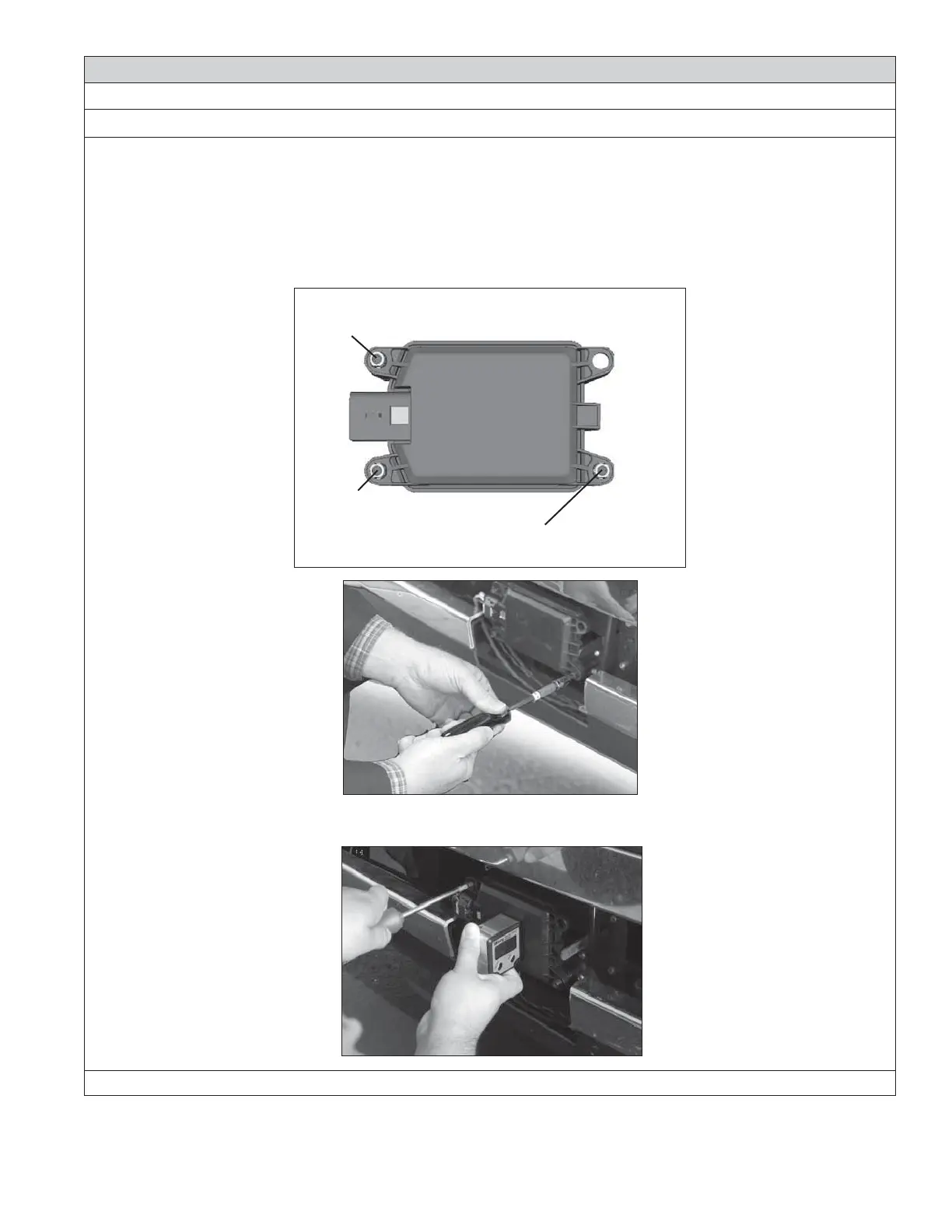

The radar sensor is mounted to the front of the vehicle using a bracket with three stand-offs, two of which are used
when making adjustments, if necessary.
It is important to use the correct stand-off when making any alignment adjustments.
Use a Torx T-20 screwdriver here to
adjust for the vertical alignment
Use a Torx T-20 screwdriver here to
adjust for the lateral alignment
IMPORTANT:
Do not adjust
this stand-off!!
ABOVE: A TECHNICIAN MAKES AN ADJUSTMENT TO THE LATERAL ALIGNMENT STANDOFF.
BELOW: THE VERTICAL ALIGNMENT STANDOFF IS ADJUSTED.
Call the Bendix Tech Team at 1-800-AIR-BRAKE (1-800-247-2725, option 2) for troubleshooting assistance.
