KMD 550/850 Quick Reference
TRAFFIC AVOIDANCE

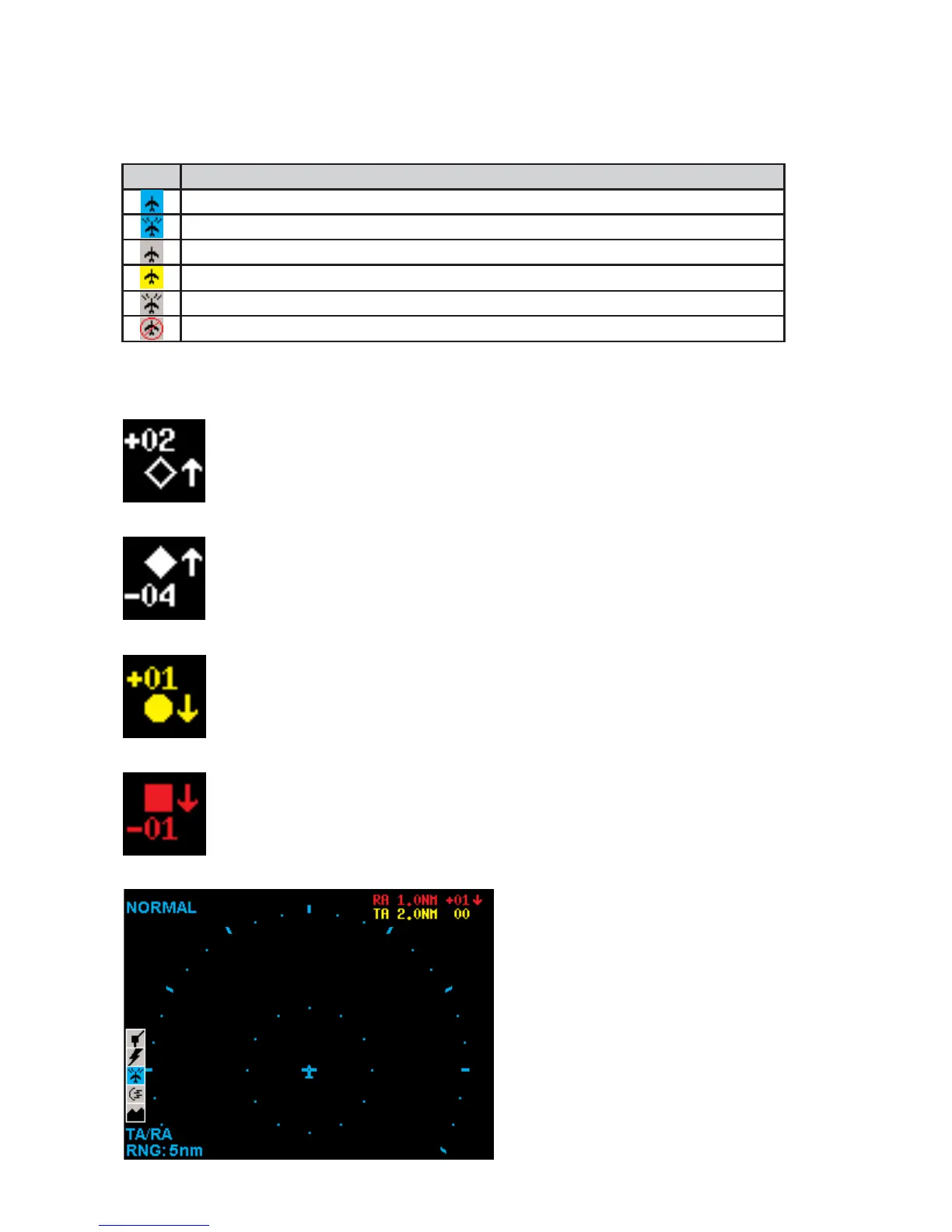

AVAILABLE TRAFFIC FUNCTION ICONS
TCAS/TAS SYMBOLOGY
NON-THREAT TRAFFIC
PROXIMITY INTRUDER TRAFFIC
TRAFFIC ADVISORY (TA)
RESOLUTION ADVISORY (RA)
“NO-BEARING” TRAFFIC
Icon Description
Standby traffic sensor being displayed.
Active traffic information being displayed.
Traffic sensor in standby mode, not being displayed.
TIS service not available.
Traffic sensor active, not being displayed.
Traffic sensor data invalid / not being displayed.
To Next Page
