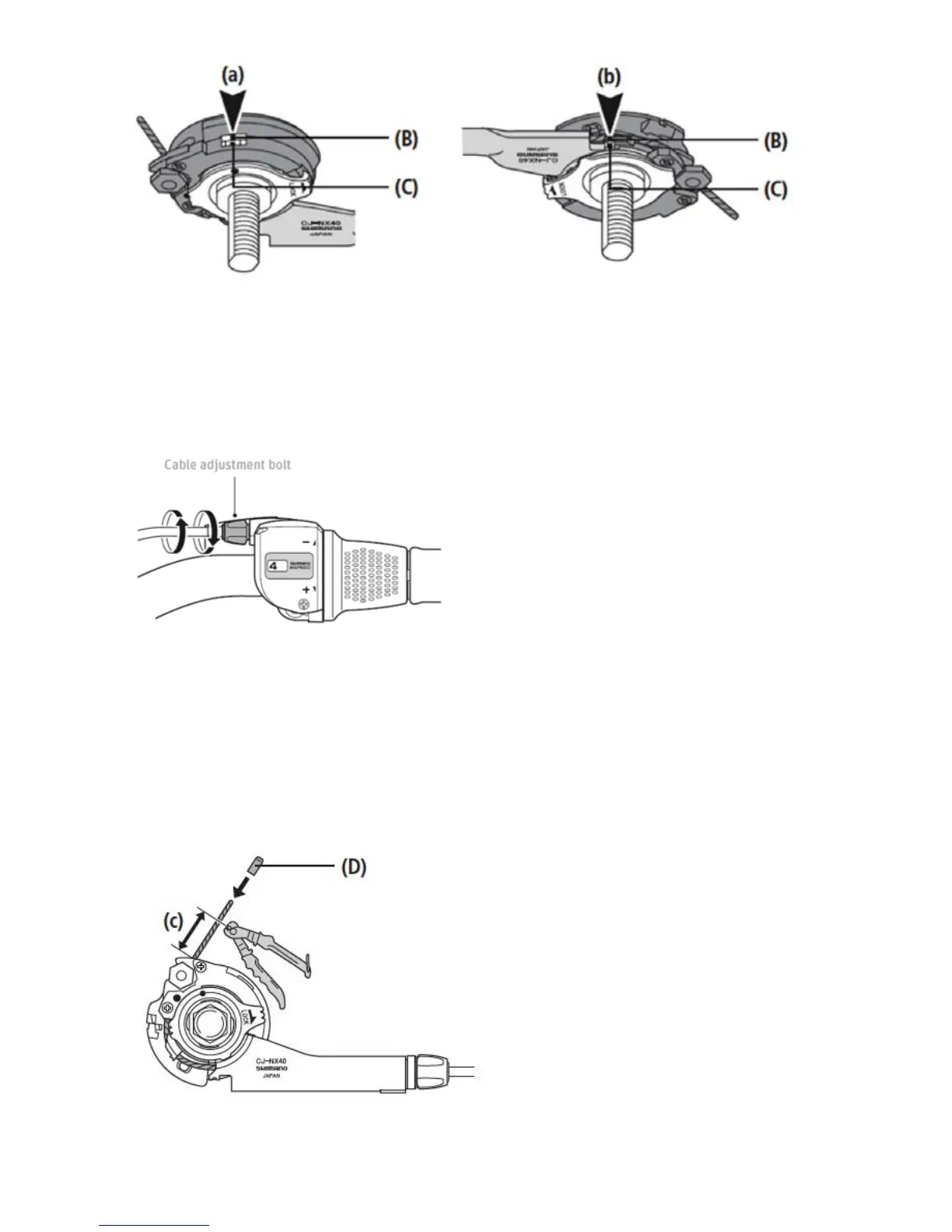

Yellow marking lines appear at two points on the cassette joint. Use the line which is most
clearly visible. If the yellow setting lines are not aligned, turn the cable adjustment bolt of the
cassette joint to align the setting lines. After this, move the shifting lever again from 3 to 1 then
back to 3, and re-check to be sure that the yellow setting lines are aligned.
NOTE: If the yellow setting lines are not aligned,
turn the cable adjustment bolt of the cassette joint to align the setting lines. After this, move
the shifting lever again from 3 to 1 then back to 3, and re-check to be sure that the yellow
setting lines are aligned.
After adjusting the cassette joint, cut
off the excess length of
inner cable. Then install the inner end
cap (D).
(C) 15-20 mm
(D) Inner End Cap
Turn the cable adjustment bolt on the
shift lever to align the marking lines.
Next, set the REVO-SHIFT lever from
position 4 to position 1 then back to
position 4. Check that the yellow
marking lines still line up.
