Benelli CLASSICA28 - Gear Adjustment Procedures; Fine-Tuning Gear Shifting Adjustments

$!"
"

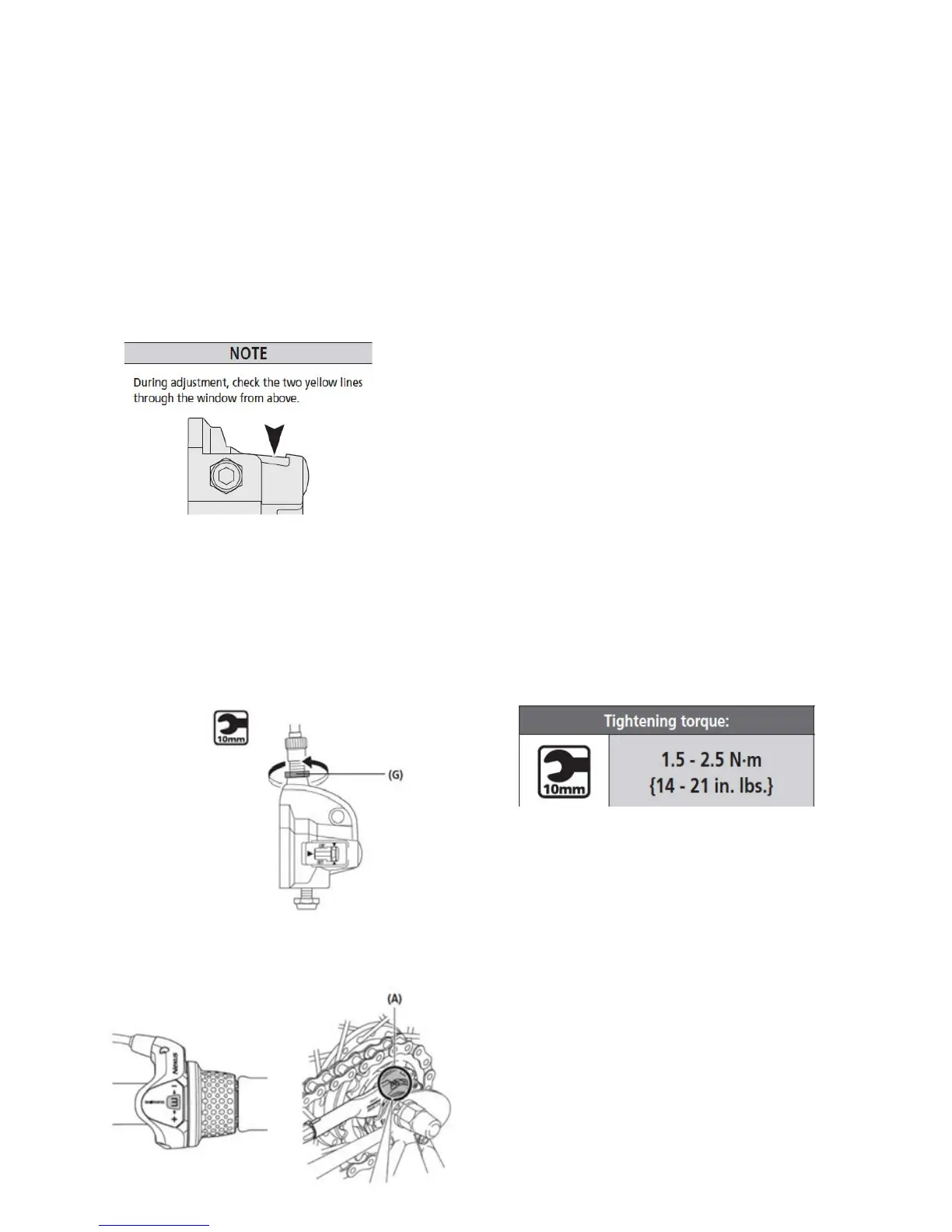

Next, turn the cable adjustment bolt (A) to align the red line (D) on the push rod with the end
(C) of the hub axel.
(A) Cable Adjustment Bolt
(B) Push Rod
(C) End Of The Hub
(D) Red Line On The Push Rod
(E) Yellow Lines
(F) Yellow Part Of The Link
Move the REVO-SHIFT lever from 3 to 1 then back to 3. Repeat this two or three times and
check to see that the gears are being shifted. Move the REVO-SHIFT lever from 1 to 2 again
and make sure that the red line on the push rod is aligned with the end of the hub axel.
Fix the cable adjustment bolt with cable adjustment nut (G).
Adjusting Gears
Move the REVOSHIT lever from 1 to 3.
Check to be sure that the yellow setting
lines (A) on the cassette joint bracket (C)
and pulley are aligned at this time.
The Yellow setting lines on the cassette
joint are located in two places. NOTE: Use
the one that is easiest to see: When the
bicycle is upright or When the bicycle is
upside down.
