BenQ E24-5500 - Level 2 Circuit Board and Standard Parts Replacement; Product Exploded View

40
Level 2 Circuit Board and Standard Parts Replacement

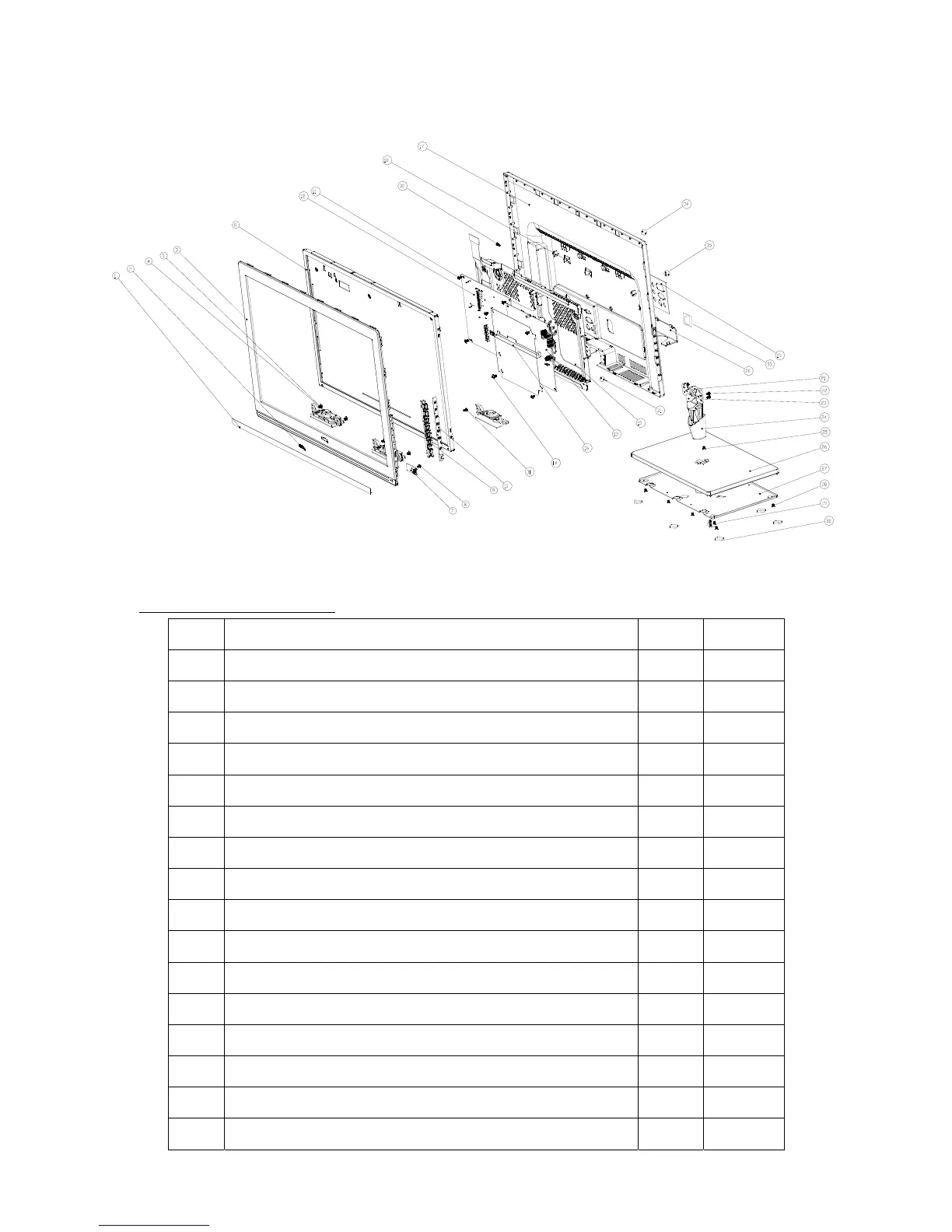

Product Exploded View
Note: The parts information listed below are for reference only, and are subject to change without notice. Please
go to http://cs.tpv.com.cn/hello1.asp
for the latest information.
Item Description Qty Unit
1 DECO L24WTV-TBENQ4 1 PCS
2 LOGO BENQ 1 PCS
3 BEZEL L24WTV-TBENQ4 1 PCS
4 SPEAKER 1 PCS
6 PANEL 1 PCS
7 IR BOARD 1 PCS
9 KEY 1 PCS
10 KEY BOARD 1 PCS
12 MAIN BOARD 1 PCS
13 POWER BOARD 1 PCS
15 MAIN_FRAME 1 PCS
16 INSULATING SHEET 1 PCS
17 REAR COVER 1 PCS
18 BKT-VESA 1 PCS
19 IR LABEL 1 PCS
20 COVER-HINGE 1 PCS
