8 Assembling your monitor hardware

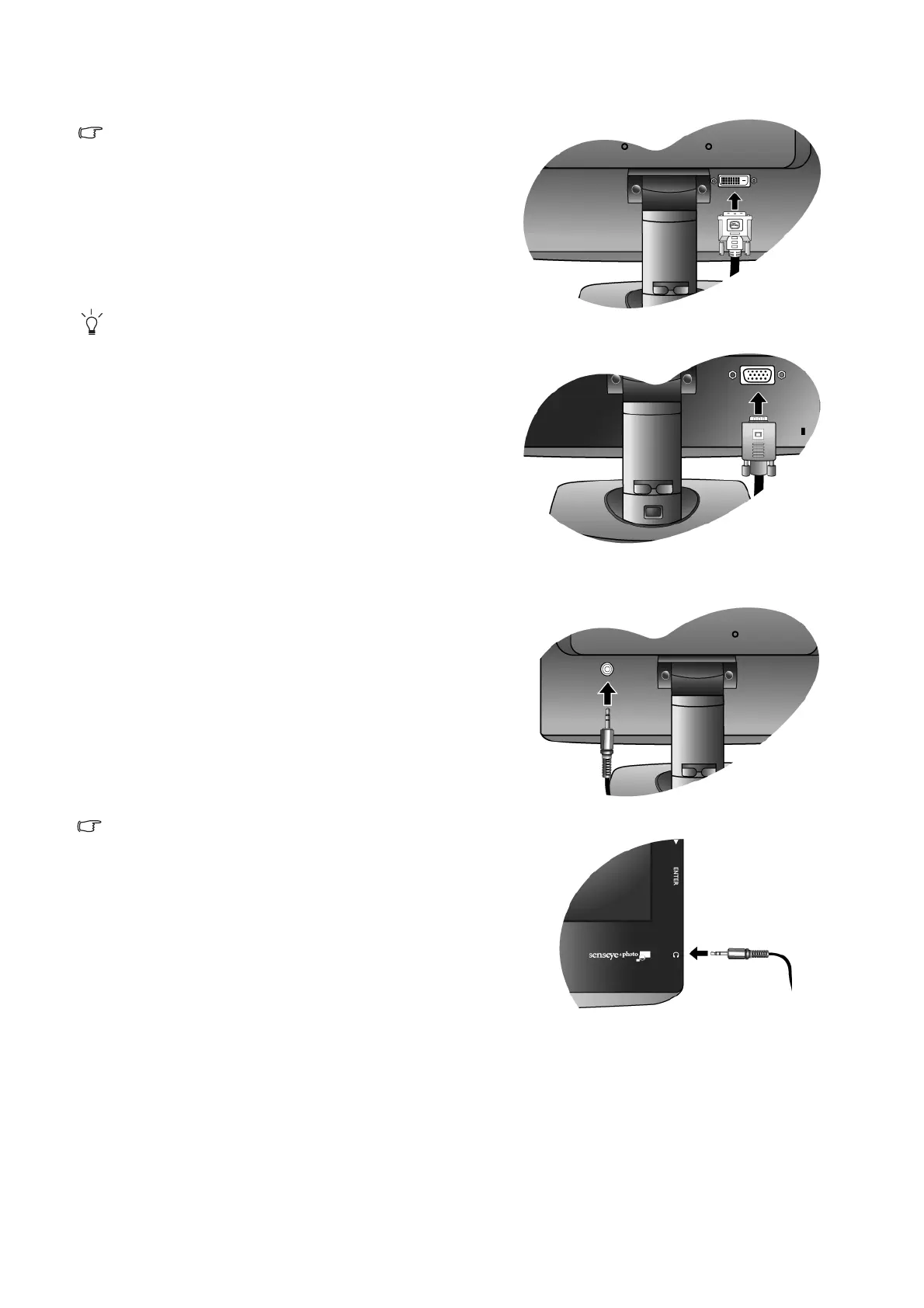

2. Connect the PC video cable.
Do not use both DVI-D cable and D-Sub cable on the
same PC. The only case in which both cables can be
used is if they are connected to two different PCs with
appropriate video systems.
Connect one end of the DVI-D cable to the monitor
DVI-D jack and the other end to the DVI-D port on your
computer. (optional)
The DVI-D format is used for direct digital connection
between source video and digital LCD monitors or
projectors. The digital video signals produce a superior
quality picture than analog video signals.
Connect the plug of the D-Sub cable (at the end without
the ferrite filter) to the monitor D-Sub . Connect the other
plug of the D-Sub cable (at the end with the ferrite filter)
to the computer video D-Sub jack.
Tighten all finger screws to prevent the plugs from acci-
dently falling out during use.
Either
Or
3. Connect the audio cable. (optional)
Connect the audio cable between the jack on the rear of
the monitor and your computer audio outlet.
If you wish, you may connect an earphone into the
earphone jack located on the side panel of the monitor.
