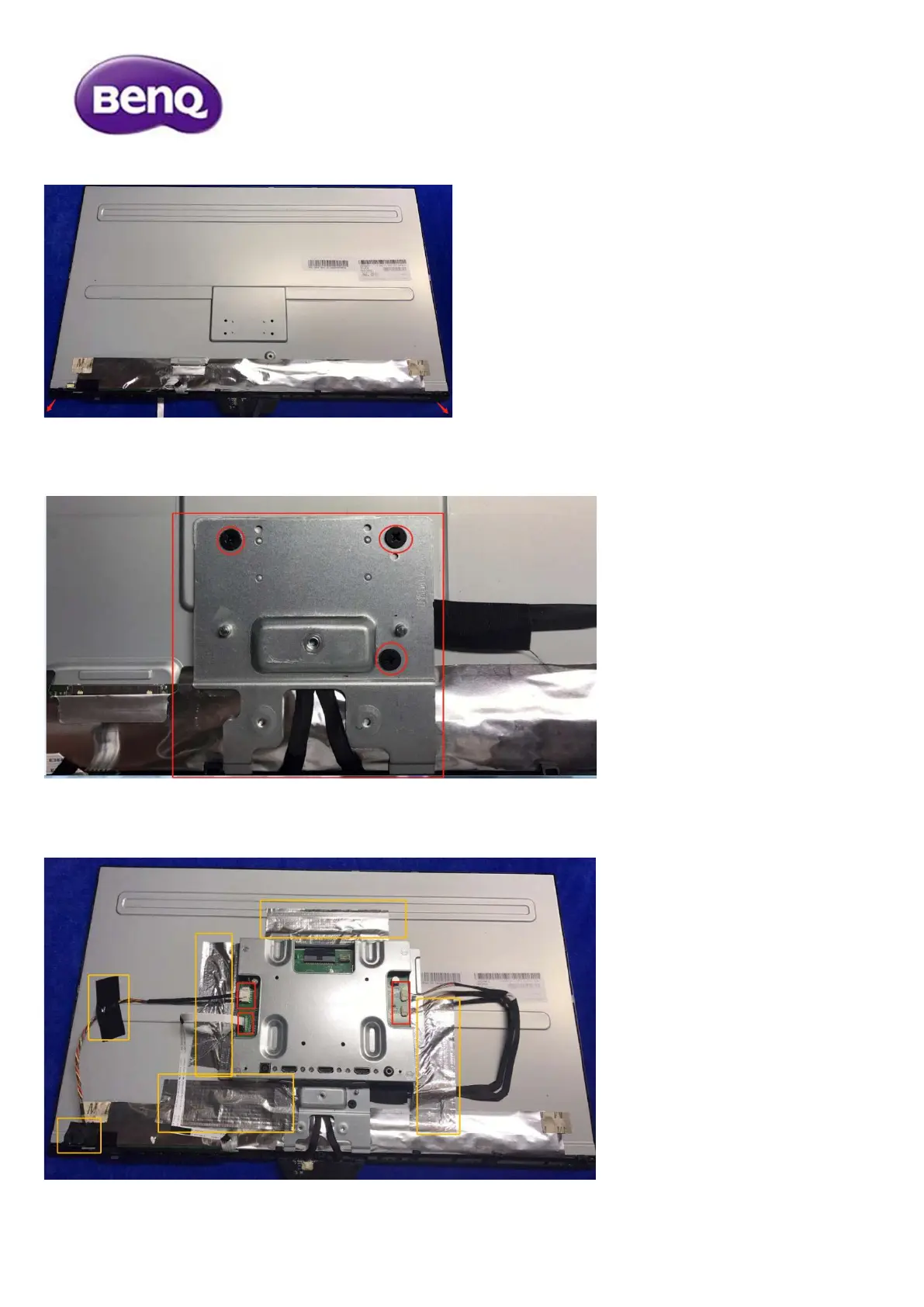

5.Place the assembled bezel to the panel
6.Fix the hinge bkt to the panel with tightening the screws.
7.Put the assembled main frame to the panel, and connect all the cables and attach the tapes to fix it.
