BenQ LX810STD - Projector Exterior View

Introduction 9

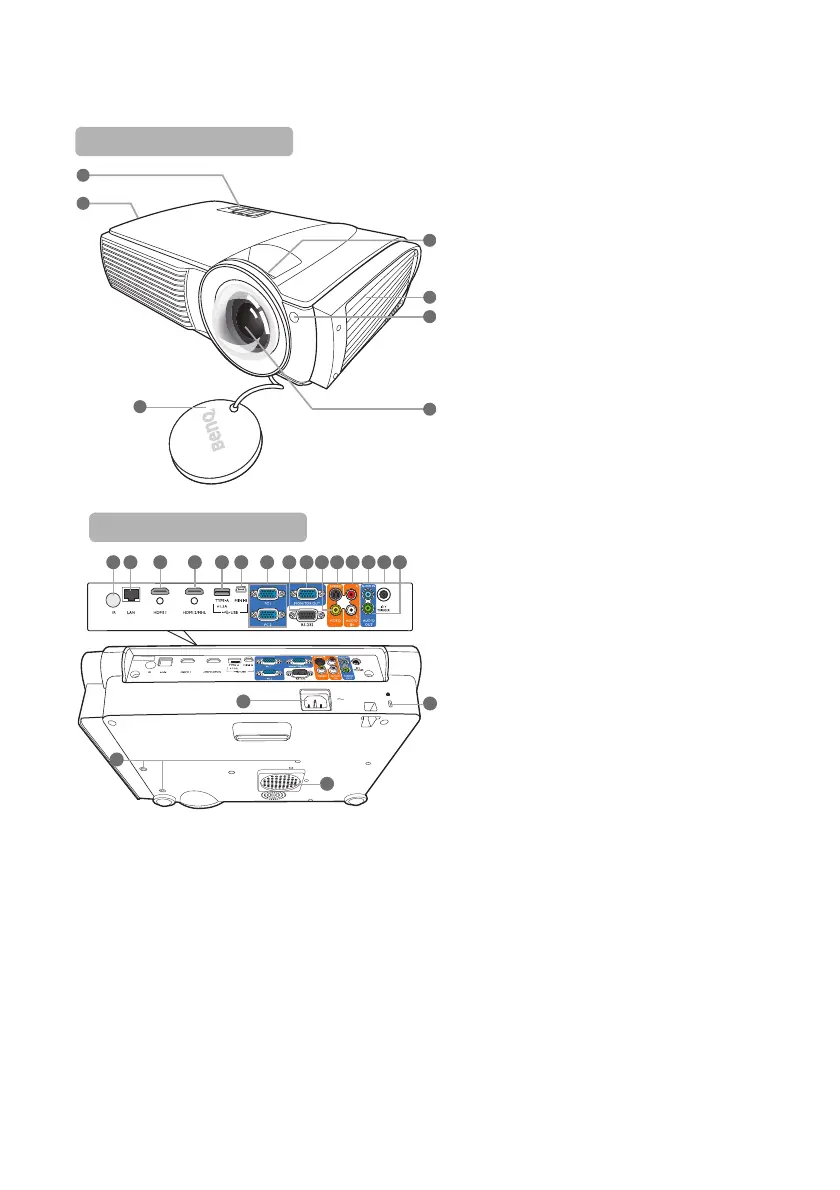

Projector exterior view
1. External control panel
(See "Controls and functions" on page
10 for details.)
2. Vent (air exhaust)
3. Lens cover
4. Focus ring
5. Vent (air inlet)
6. Front IR remote sensor
7. Projection lens
8. AC power jack
9. Rear IR remote sensor
10. RJ45 LAN input jack
11. HDMI-input port 1
12. HDMI/MHL-input port 2
13. USB Type-A port
14. USB Mini-B port
15. RGB (PC)/Component Video (YPbPr/
YCbCr) signal input jacks
16. RS232 control port
17. RGB signal output jack
18. Video input jack
19. S-Video input jack
20. Audio (L/R) input jacks
21. Audio input jack
22. 12V DC output terminal
Used to trigger external devices such
as an electric screen or light control,
etc. Consult your dealer for how to
connect these devices.
23. Audio output jack
24. Ceiling mount holes
25. Kensington anti-theft lock slot
26. Vent (air inlet)
Front/upper side
1
2
5
6
4
7
3
25
24
26
9 11 12 13 14 15
17 1916 18 20 21 22 23
10
8
Rear/lower side
