BenQ MP610 - Projector Exterior View; Front; Upper Side; Rear Side; Lower Side

Introduction 7

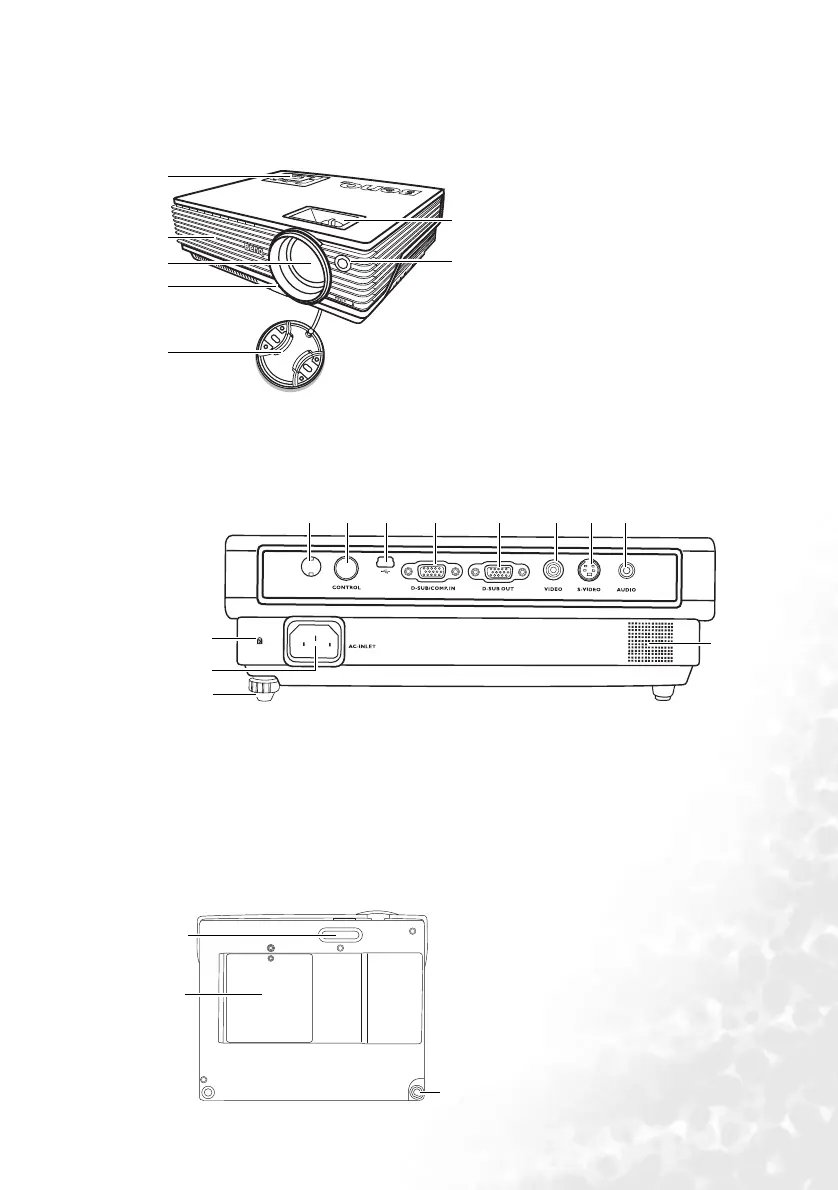

Projector exterior view
Front / upper side
Rear side
Refer to "Connection" on page 15 for more information on making connections to various
equipment.
Lower side
1. External control panel
(See "External control panel" on
page 8 for detailed information.)
2. Ventilation grill
3. Projection lens
4. Front adjuster button
5. Lens cap
6. Focus ring and Zoom ring
7. Front IR remote sensor
1
2
3
4
5
6
7
8. Rear adjuster foot
9. AC power cord inlet
10. Kensington anti-theft lock slot
11. IR remote sensor
12. RS232 control port
13. USB socket
14. RGB (PC) / Component video (YPbPr/
YCbCr) signal input socket
15. RGB signal output socket
16. Video socket
17. S-Video socket
18. Audio socket
19. Speaker
11
12 13 14 15 16 17
18
19
8
9
10
20. Front adjuster foot
21. Lamp cover
22. Rear adjuster foot
20
21
22
