Connection18
Connection
ConnectionConnection
Connection

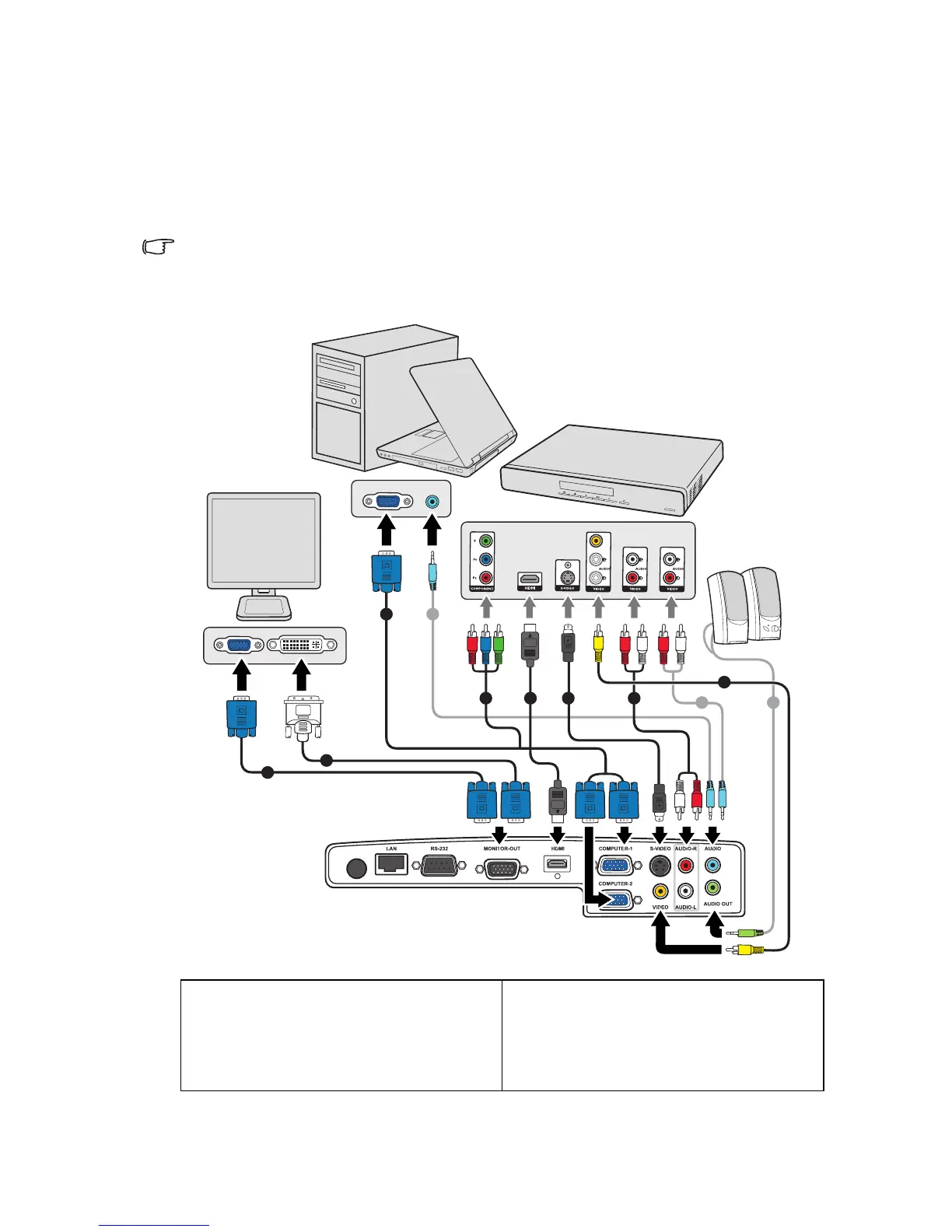

When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
• In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 8). They are commercially available from electronics stores.
• For detailed connection methods, see pages 19-22.
1. VGA cable
2. VGA to DVI-A cable
3. Component Video to VGA (D-Sub)
adapter cable
4. HDMI cable
5. S-Video cable
6. Video cable
7. Audio cable
8. Audio L/R cable
1
1
3 4 5 8
7
7 7
2
6
Notebook or
desktop
computer
Speakers
or
or
A/V device
Monitor
(DVI)
(VGA)
To Next Page
