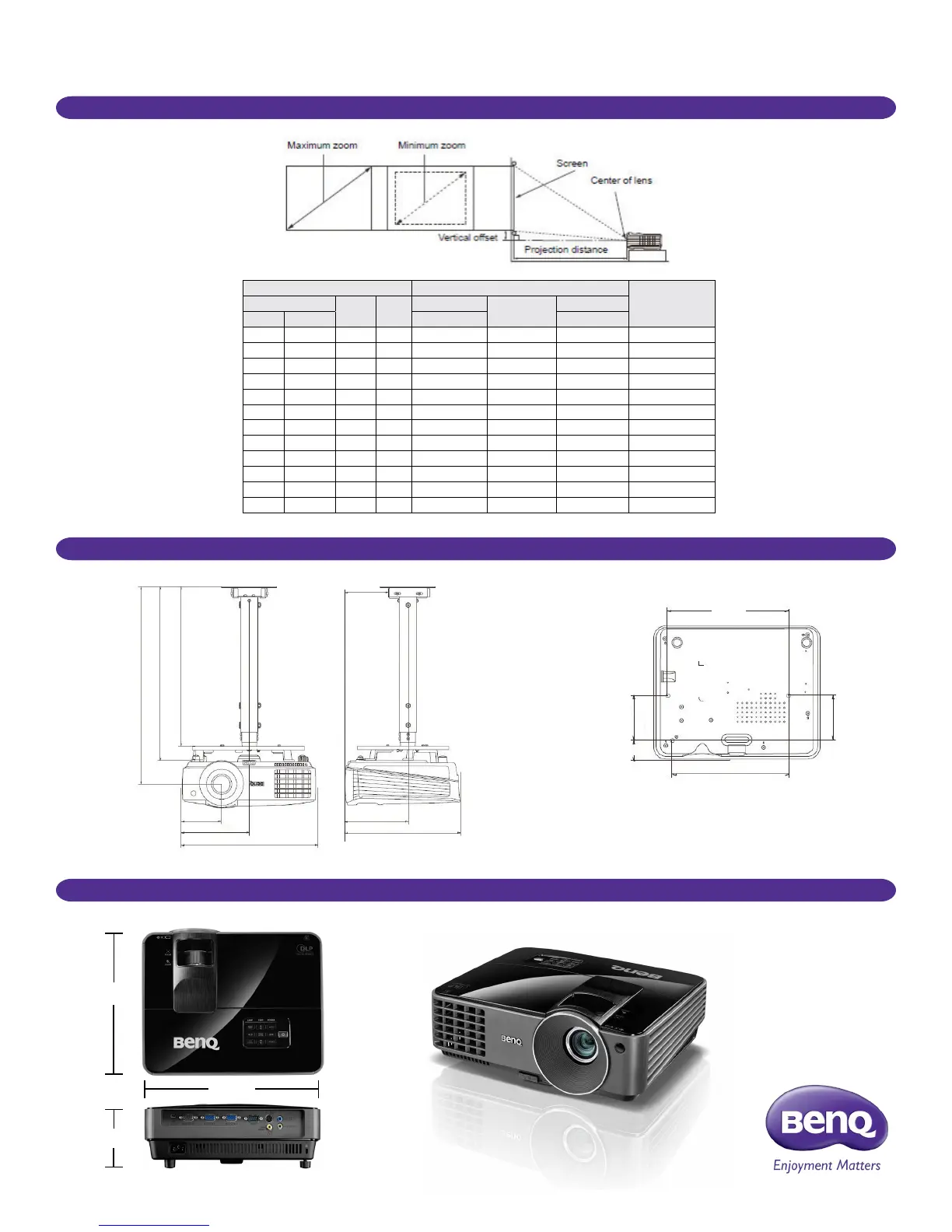

BenQ MX503 - Distance and Mounting Charts; Projection Distance Chart; Ceiling Mount Diagram; Product Dimensions

Screen Size Distance from screen (inch)
Vertical offset
(inch)
Diagonal W
(inch)
H
(inch)
Min length
Average
Min length
Inch mm Max zoom Max zoom
30 762 24 18 44.57 46.81 49.02 1.81
40 1016 32 24 59.40 62.40 65.35 2.40
50 1270 40 30 74.29 78.00 81.69 2.99
60 1524 48 36 89.13 93.58 98.07 3.58
80 2032 64 48 118.86 124.80 130.75 4.80
100 2540 80 60 148.58 155.98 163.43 5.98
120 3048 96 72 178.27 187.20 196.10 7.20
150 3810 120 90 222.83 233.98 245.12 9.02
200 5080 160 120 297.13 312.01 326.85 12.01
220 5588 176 132 326.85 343.19 359.53 13.19
250 6350 200 150 371.42 390.00 408.54 15.00
300 7620 240 180 445.71 467.99 490.28 17.99
Distance Chart
Ceiling Mount Chart
MX503 Digital Projector
Ceiling Mount Screw:
M4 x 8 (Max L = 8 mm)
Units: inch
8.17”
3.07”
4.84”
3.28”
5.59”
11.31”
9.16”
7.86”
3.03”
14.35” 15.67” 17.56”
3.01”
1.3”
9.15”
4.5”
11.31”
Dimensions
