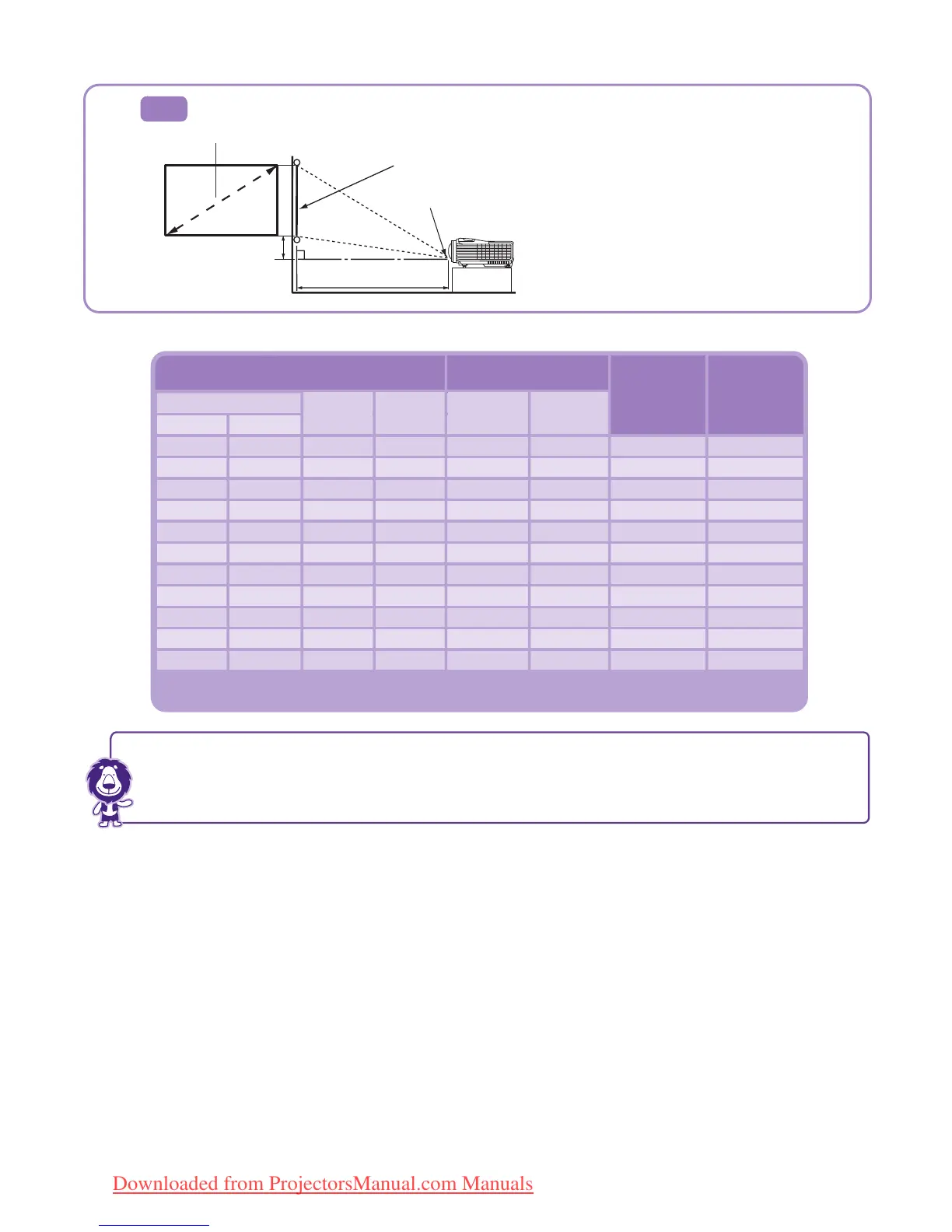

Projection dimensions (MW714 ST 3/3)
(a) Screen size
Projected picture size
(b) Distance
from screen
(mm)
(c) Vertical
offset
(mm)
Diagonal
Height
(mm)
Width
(mm)
Height
(mm)
Width
(mm)
Inches mm
Table C : The screen aspect ratio is 16:10 and the projected picture is 16:10
There is 3% tolerance among these numbers due to optical component variations. BenQ
recommends that if you intend to permanently install the projector, you should physically test
the projection size and distance using the actual projector in situ before you permanently
install it, so as to make allowance for this projector's optical characteristics. This will help you
deter
mine the exact mounting position so that it best suits your installation location.
C
50 1270 673 1077 673 1077 526 34
80 2032 1077 1723 1077 1723 842 54
100 2540 1346 2154 1346 2154 1053 67
120 3048 1615 2585 1615 2585 1263 81
150 3810 2019 3231 2019 3231 1579 101
180 4572 2423 3877 2423 3877 1895 121
200 5080 2692 4308 2692 4308 2105 135
220 5588 2962 4739 2962 4739 2316 148
240 6096 3231 5169 3231 5169 2526 162
270 6858 3635 5816 3635 5816 2842 182
300 7620 4039 6462 4039 6462 3158 202
(a)
(b)
Center of lens
Screen
(c)
