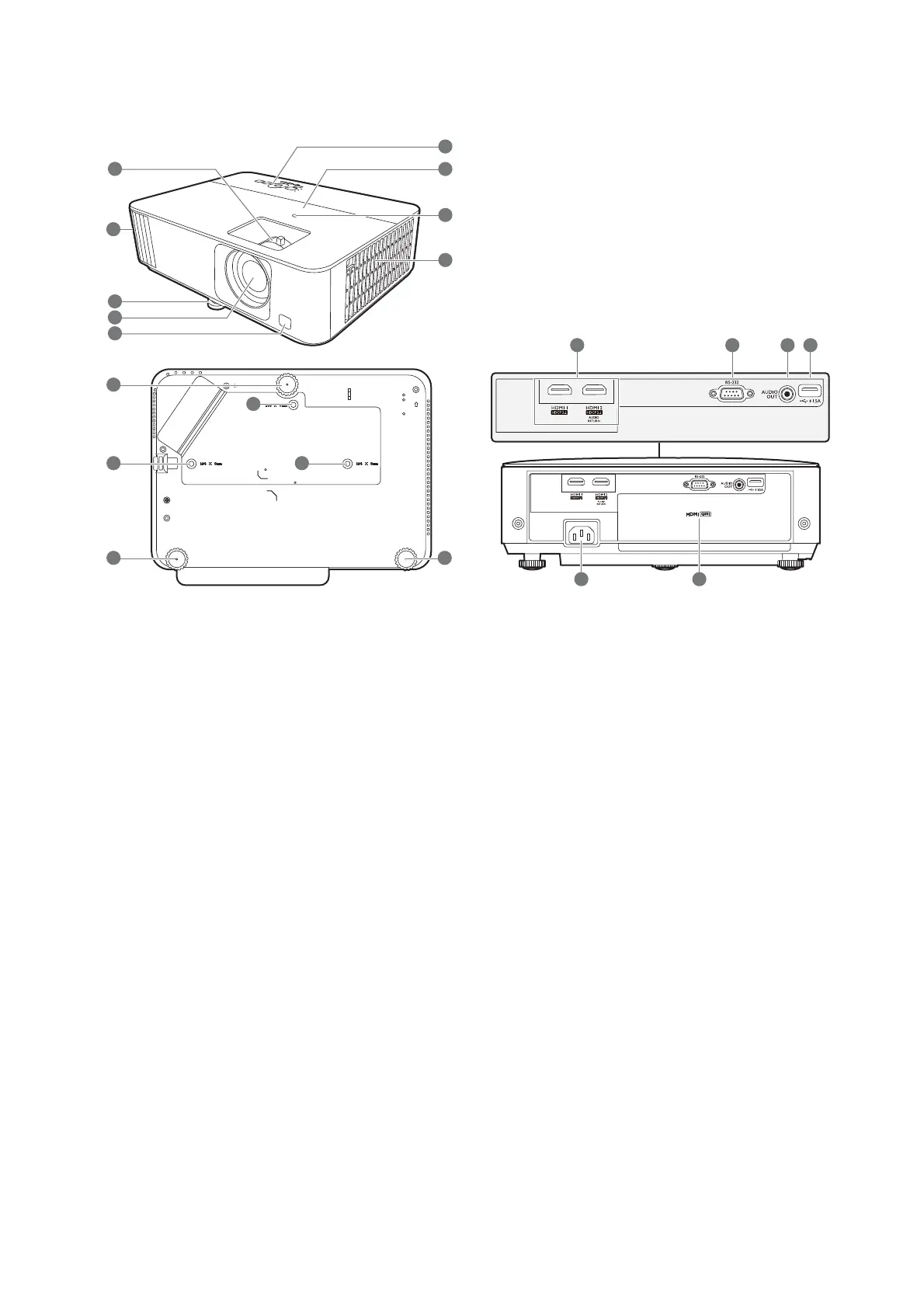

Projector exterior view
1. Focus ring and Zoom ring
2. Vent (air exhaust)
3. Adjuster feet
4. Projection lens
5. IR remote sensor
6. External control panel
(See Controls and functions on page 9.)
7. Lamp cover
8. Ambient Light Sensor (ALS)
9. Vent (air inlet)
10. HDMI 1/HDMI 2 input port
11. RS-232 control port
12. Audio output jack
13. USB Type A port (Power supply 1.5 A)
14. AC power jack
15. QS01 HDMI Media Streaming port
(QS01 is an optional accessory.)
16. Ceiling mount holes
