*If you need to remove or replace the tripod legs, please refer to the
detailed manual and tutorial on Benro ofcial website
(www.benro.com).

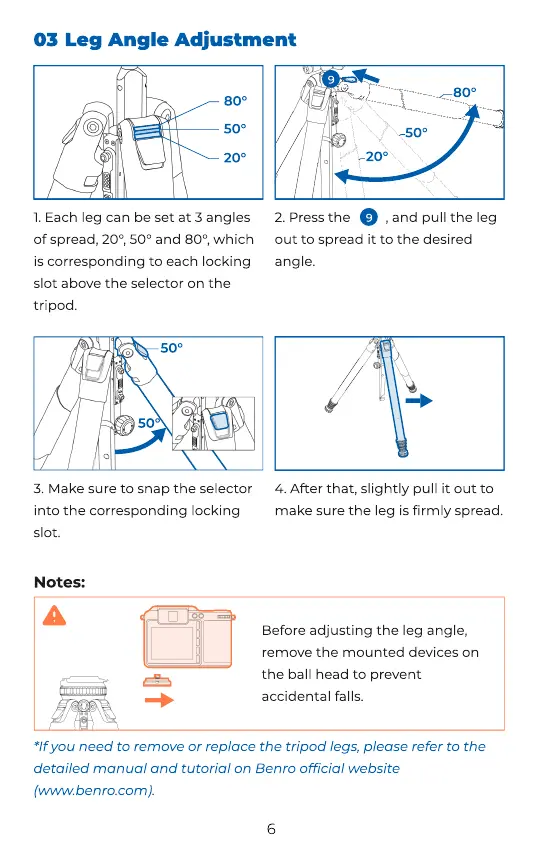

Leg Angle Adjustment03
3. Make sure to snap the selector
into the corresponding locking
slot.
4. After that, slightly pull it out to
make sure the leg is rmly spread.
50°
50°
1. Each leg can be set at 3 angles
of spread, 20°, 50° and 80°, which
is corresponding to each locking
slot above the selector on the
tripod.
2. Press the , and pull the leg
out to spread it to the desired
angle.
80°
50°
20°
9
80°
50°
20°
9
Before adjusting the leg angle,
remove the mounted devices on
the ball head to prevent
accidental falls.
Notes:
6
