Bentley EXP12 - 1 WD Rear Wheel Attachment

2
3
4
10
7
6
5
1
8
9
10
Attach the Rear Wheels │ 5
Driving Wheel
Normal Wheel
1WD
Rear axle
Rear Bottom View

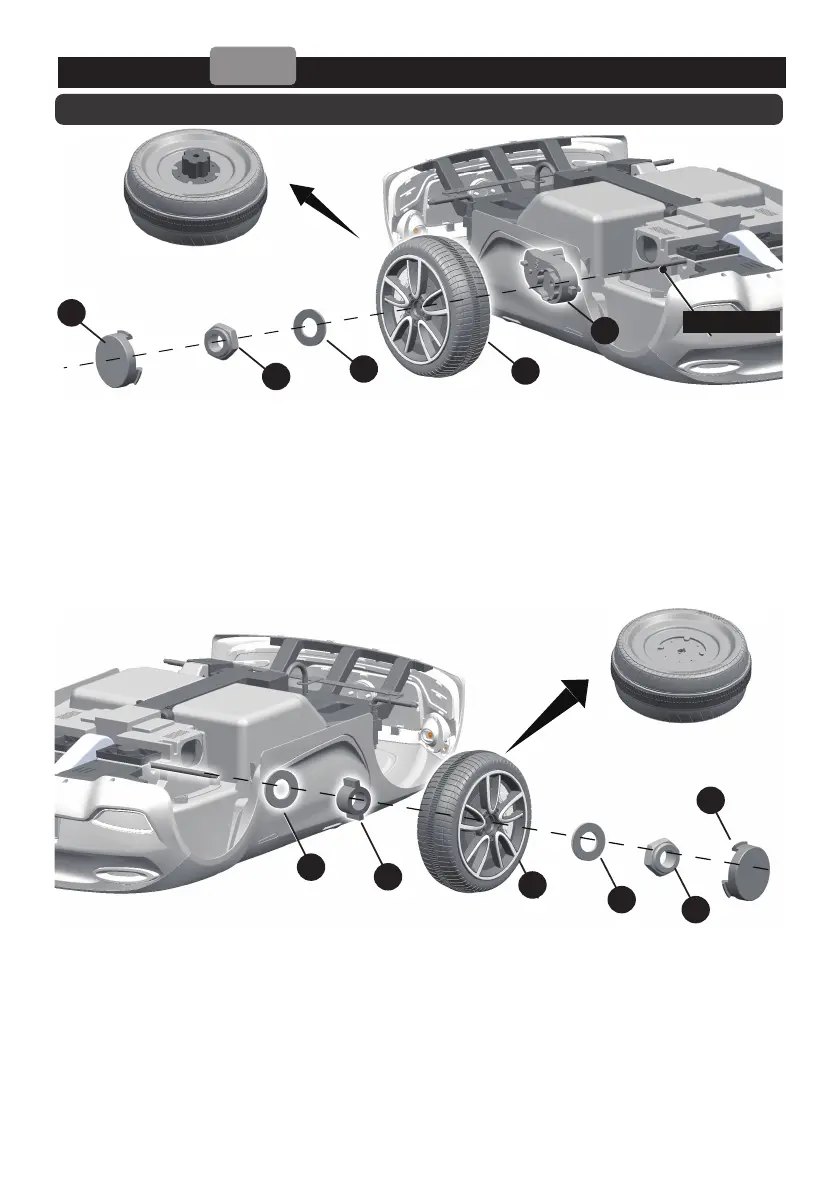

1. Slide the gear box onto the rear axle (Left Side). Keep the motor and the
connector on the gear box through the larger hole on the rear of the vehicle
and out where the battery sits.
2. Slide the driving wheel onto the rear axle. And keep the driving wheel match
up with the gear box.
3. Slide the Ø10 washer onto the rear axle.
4. Tighten a lock nut to the end of the rear axle with a spanner.
5. Slide the Ø10 Washer onto the rear axle (Right Side).
6. Insert the bush into the hole in the center of the normal wheel.
7. Slide the normal wheel onto the rear axle.
8. Slide the Ø10 washer onto the rear axle.
9. Tighten a lock nut to the end of the rear axle with a spanner. HINT: An
extra spanner has been provided to hold the Lock Nut on the other side
of the rear axle while tightening the Lock Nut on the other side.
10. Fit the hubcaps to the wheels.
HINT: If your vehicle is Two Wheels Driving Type, see the next page please.
