Attach the Rear Wheels │ 6
2WD
Driving Wheel
Rear axle
Rear Bottom View

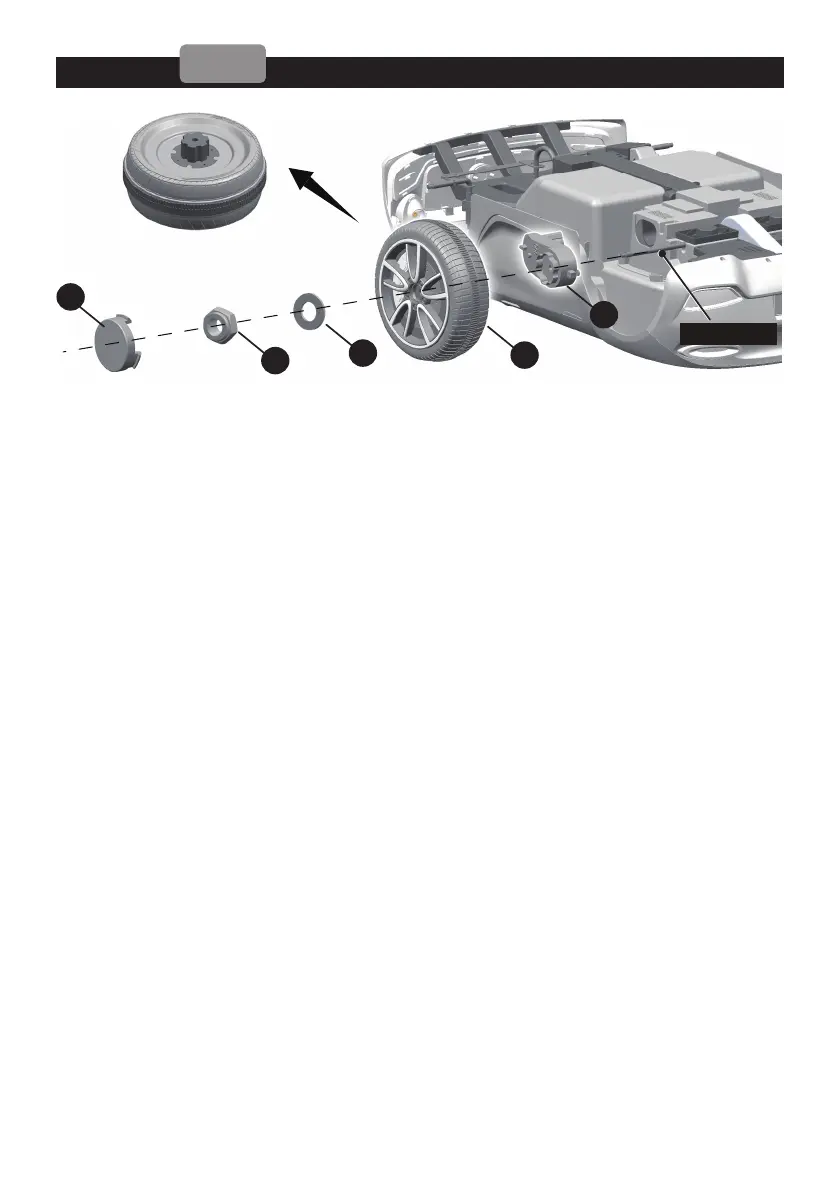

1. Slide the gear box onto the rear axle. “R” labeled gear box should be fit to the
“R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle
body. Keep the motor and the connector on the gear box pass through the
larger hole on the rear of the vehicle and out where the battery sits.
2. Slide the driving wheel onto the rear axle. And keep the driving wheel match
up with the gear box.
3. Slide the Ø10 washer onto the rear axle.
4. Tighten a lock nut to the end of the rear axle with a spanner. HINT: An extra
spanner has been provided to hold the Lock Nut on the other side of the
rear axle while tightening the Lock Nut on the other side.
Repeat the above procedure to assemble the other driving wheel.
5. Fit the hubcaps to the wheel.
