6o
Trn
'R'
TypB
BBNrrBy.
It
is
not
necessary
to
jack
up
the
car to adjust
the brakes, as
the
adjusters
are
so
designed
to
give
the correct-shoe
clearances
auto-
matically.
-
If, after
long
service,
the brake
linings
require
renewal,
this will
be apparent
by the
adjusters
coming
to the
eird
of their
travel, and
will
have
a solid
feel quite
distinct
flom
the resistance
felt
when
the
brake
shoes are
correctly
adjusted.

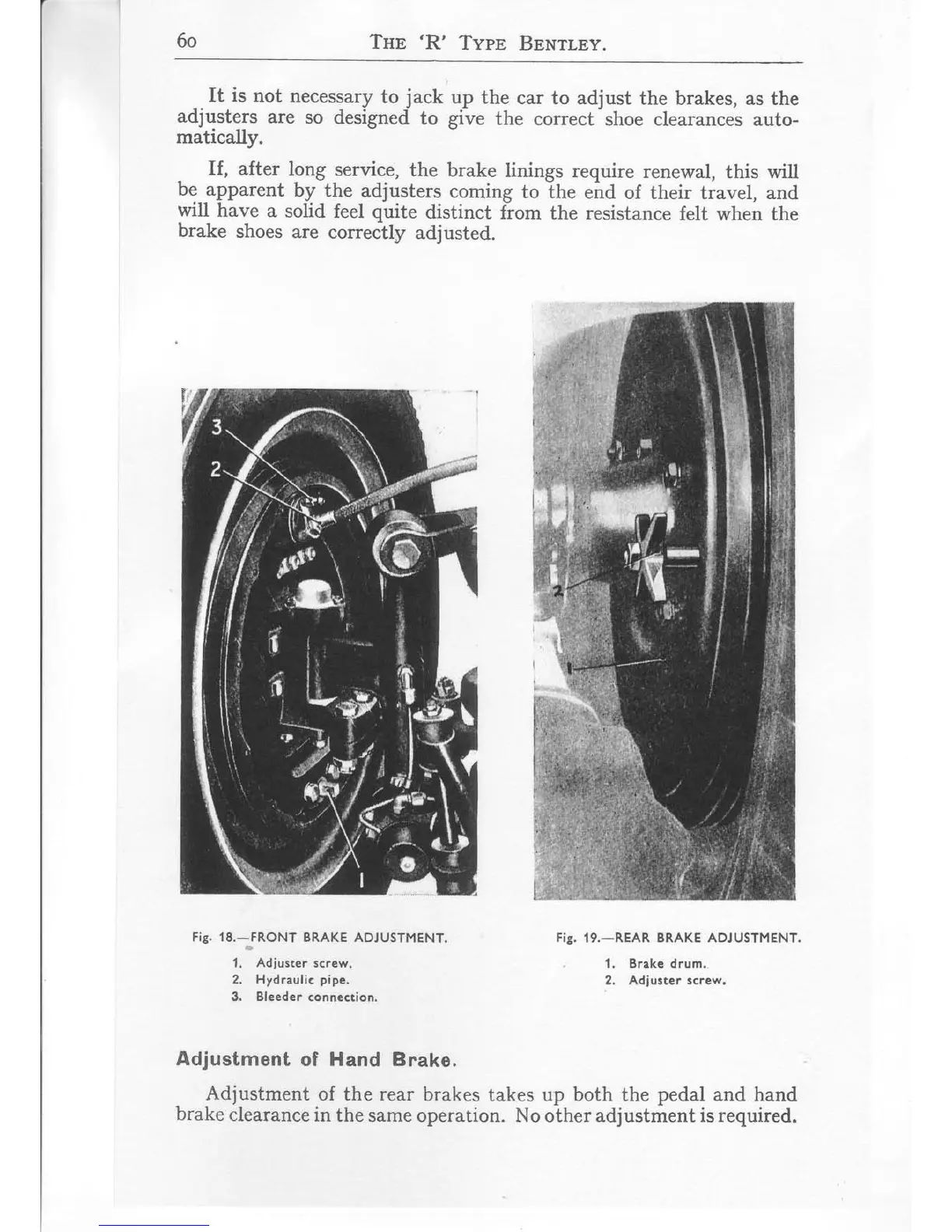

Fig. 18.-FRONT
BRAKE
ADJUSTMENT.
a
1, Adiuster
screw.
2, Hydraulic
pipe.
3. Bleeder
connection.
Fig.
i9.-REAR BRAKE ADJUSTMENT.
. 1. Brake drum..
2. Adiuster screw.
Adjustment
of Hand Brake.
Adjustment
of the rear
brakes
takes up both the
pedal
and
hand
brake
clearance in
the same
operation. No other
adjustment is required.
