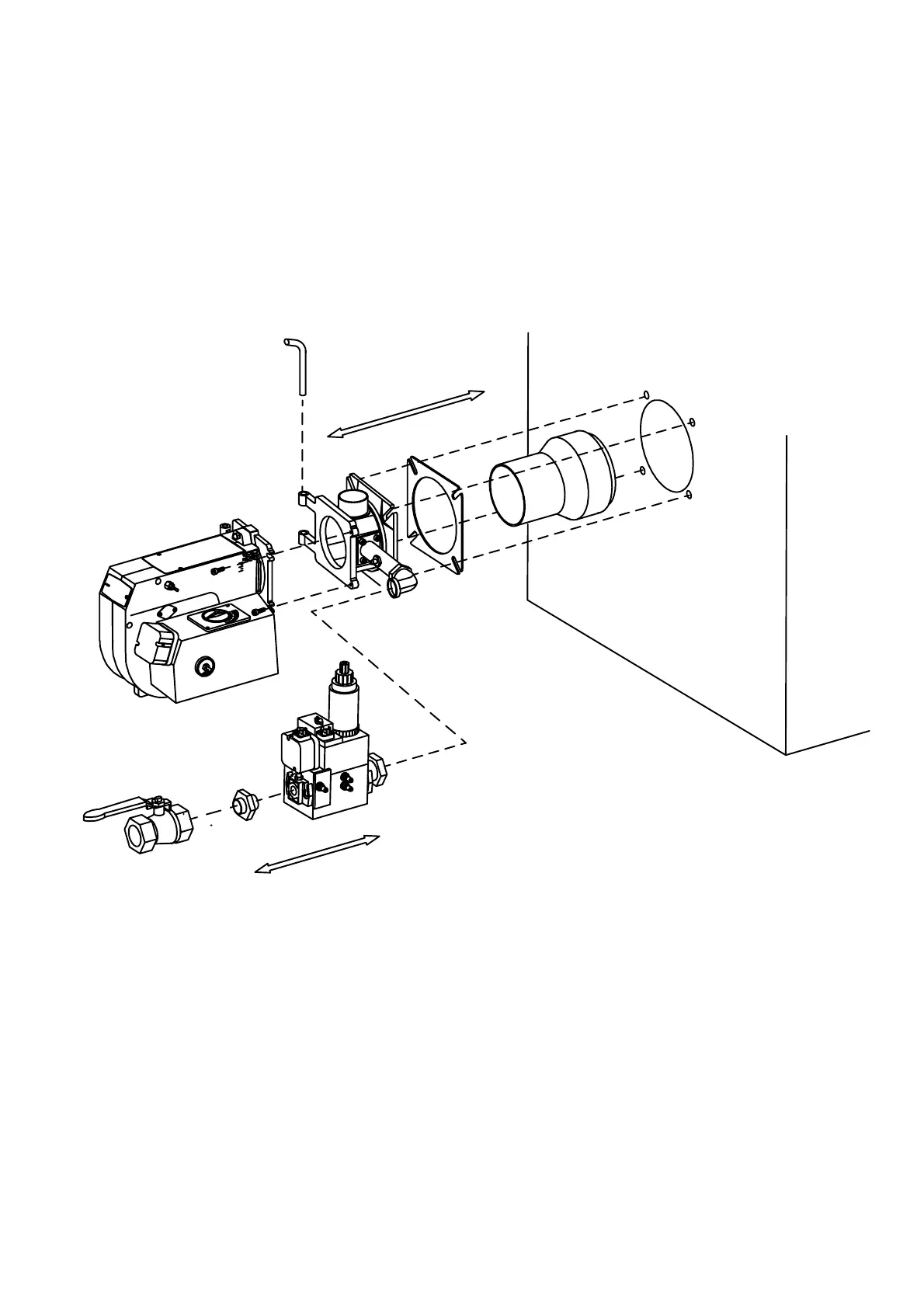

MOUNTING ON THE BOILER
REMOVAL OF FAN HOUSE UNIT
FROM BURNER.
Loosen the screws. Swing out the fan
house. Remove the ionisation and igni-
tion cables from the electrodes. Rem-
ove the bolt on the flange.
Remove the combustion unit from the
burner. Fit the enclosed flange and
gasket to the boiler.If new fixing holes
must be drilled, use the fixing flange as
a pattern.
REMOVAL OF VALVE UNIT FROM
BURNER
Remove the plug-in contact from the
multi-bloc. Loosen the union nut.
172 205 36 93-01
INSTALLATION EXAMPLE
Connect the gas to the burner by
means of the ball valve. Ensure that the
union nut, ball valve and tubing make
it easy to remove the burner for in-
spection and service.
