Control UnitTechnical Data
Dimensions W x H x D: 290 x 80 x 250mm
Equipment: Control unit, micro motor hand piece,
dust bag, power cord, instruction
manual
Weight: 2300g
Voltage: 95-265V 50/60Hz
Warranty: 24 months
12 months for hand piece
• To prevent overheating, at least
30mm clearance must be kept on
all sides of the device. The venting
slots in the device must not be
blocked under any circumstances.
• Protect the device from moisture
• The device must not be used to
draw liquids
• Only authorized experts are allowed
to open the device
• Unauthorized opening renders the
warranty void
• The plastic housing must not be
cleaned with petrol or chemical
detergents. Only use a slightly
moistened towel for cleaning.
(Unplug device first)
• Disinfect the surface of the hand
piece with a surface disinfectant.
Make sure no liquid enters the
handpiece.
• Press suction cover with dust bag
into dust bag compartment. (see
pages 8/9) Insert the hand piece
cable‘s plug into socket (bracket
pointing downwards).
• Plug the device into a properly
installed 95-265 V / 50-60 Hz AC
power socket and turn on power
switch. (Display lights up)
• On the touch sliding strip you can
adjust the burr/mandrel rotation to
the desired value. Lightly touching
the suction level symbols lets you
set the suction level (see page 6).
The device is put into operation via
the start/stop switch or the switch
on the hand piece. Other functions
can be operated via the touch pad,
as described below.
• Insert burr/mandrel into hand
piece as far as possible. The burr/
mandrel in this hand piece is
automatically powered as soon as
the motor starts. The burr/mandrel
may be removed again after the
hand piece has come to a stop.
• Never remove burr/mandel when
the device is running to avoid risk
of injury! Please do not ever use
burrs/mandrels with damaged or
bent shafts! Shaft diameter must
be 2.35 mm. Please also mind
permissible maximum speeds
allowed for the respective burr/
mandrel attachment.

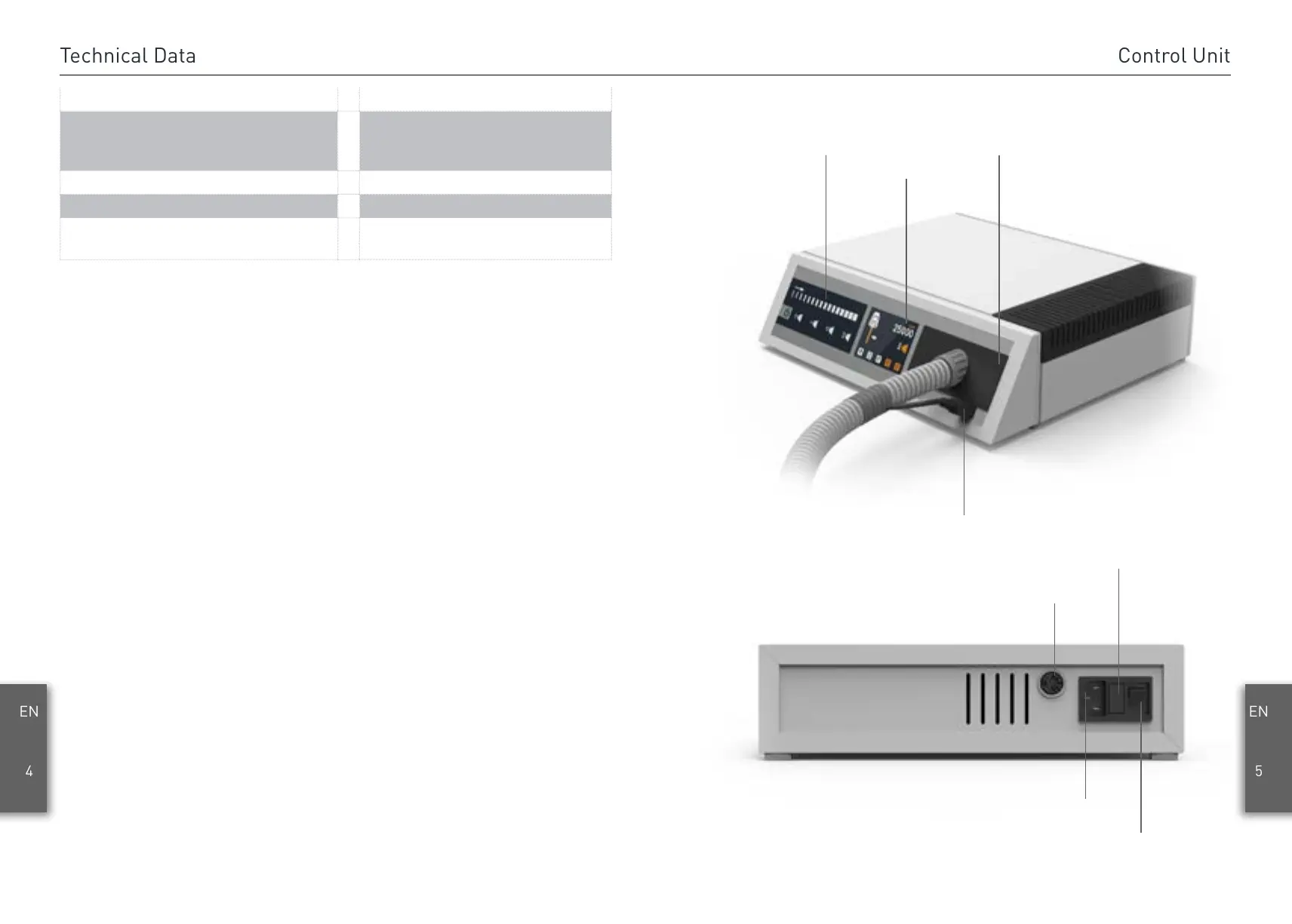

Touchpad
Display
Hand piece connector socket
Fuse
external lamp
IEC connector
Power switch
Dust bag compartment
Safety Instructions
Operation
