8 • owner/operaTor manUal BK45777 (01-21)

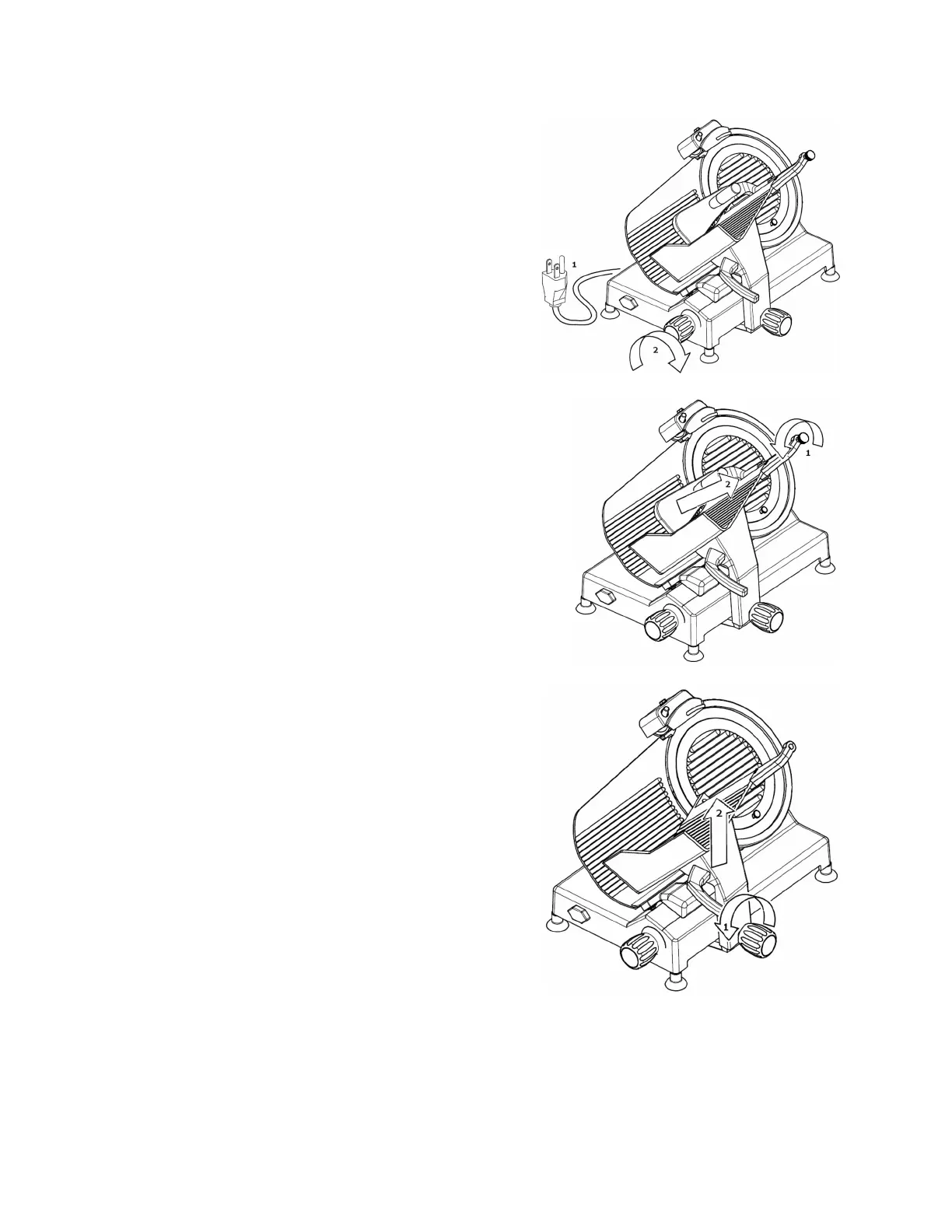

DISASSEMBLING THE MACHINE FOR CLEANING
1. Disconnect the plug from the electric mains
supply.
2. Turn the regulating knob of the thickness plate
to ‘0’.
3. Removethevariouscomponentsasdescribedin
the following paragraphs.
Disassembling the Meat Pusher
1. Unscrewtheknobinordertoextracttherodfrom
the tray.
2. Removethemeatpusher.
Disassembling the Product Table
1. Turn the locking knob counter clockwise all the
way,removingtheknobitself.
2. Take out the whole group by pulling it upwards.
