-3-
www.berner.com Berner International 800.245.4455
111 Progress Ave. / New Castle / PA / 16101 / USA

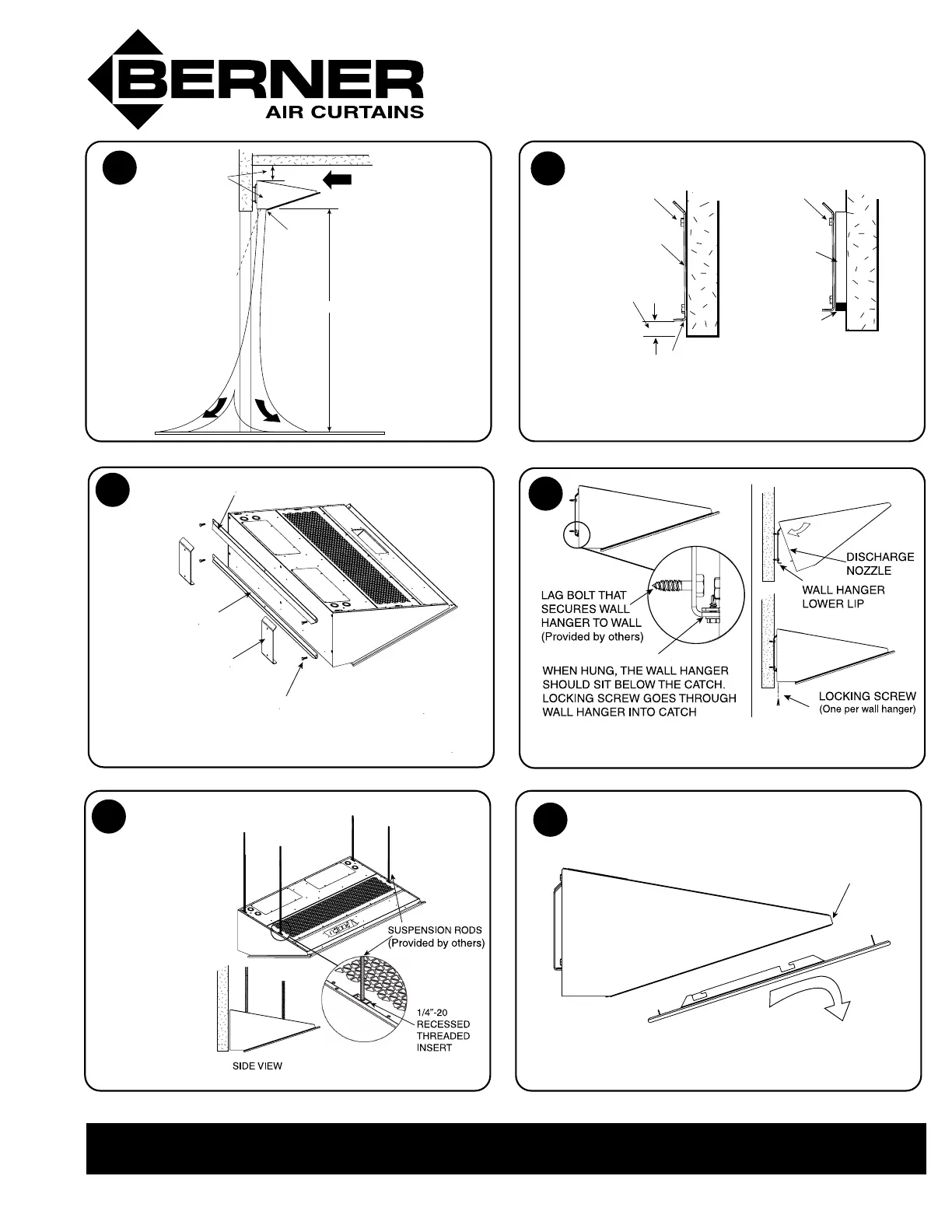

Use threaded rod
to hang from the
ceiling instead of
the wall - using
the factory installed
recessed threaded
inserts
1
2
3
4
To wire – follow the wiring diagram (inside wiring
compartment). The controls ship in the same box as the
air curtain.
5
6
After mounting the wall hangers, hang the air curtain and
rotate into place & add locking screws.
Before hanging,
check to see what
the clearance is
above the door.
FLUSH WALL MOUNT
RAISED WALL MOUNT*
Architectual Elite 8 & 10 Air Curtain
Simple to Install
Easy to operate & maintain
®
To access internal components - Remove the
screws along the front edge, slide the panel
towards you, and then it will drop down.
*If the unit must be mounted higher than 1” above the
opening, it must be spaced out from the wall 3/8” for every
inch the unit is above the door opening.
2"
LOWER LIP
GAP NEEDED
TO MOUNT
UNIT FLUSH WITH
TOP OF
OPENING*
MOUNTING
SCREWS
WALL
HANGER
MOUNTING
SCREWS
SPACER
SEAL ALONG
LENGTH
SCREWS
*Longer units use more than two wall hangers.
Position outer wall hangers no more than 6” from the end.
WALL MOUNT WALL MOUNT
CEILING MOUNT
HOOK
CATCH
WALL HANGERS*
1/4”-20 BOLTS provided by Berner
(4 FT-LBS RECOMMENDED TORQUE)
(Position evenly; slide to match
location of support structure)
20˚
AIR
Discharge
Nozzle
4" minimum
side & top
clearance from
combustible
material
A
I
R
A
I
R
INTERIOR
EXTERIOR
6' minimum
For more information see page 4
For more information see page 4
For more information see page 5
For more information see page 5
For more information see page 5
For more information see page 8
