Type 9 Z Zig-zag and plain stitch sewing machine
electronic with 6 built-in cams and automatic button-
holer with 5 built-in cams.
Valid for model 900 electronic
trom machine no. 19 200 551
_n _

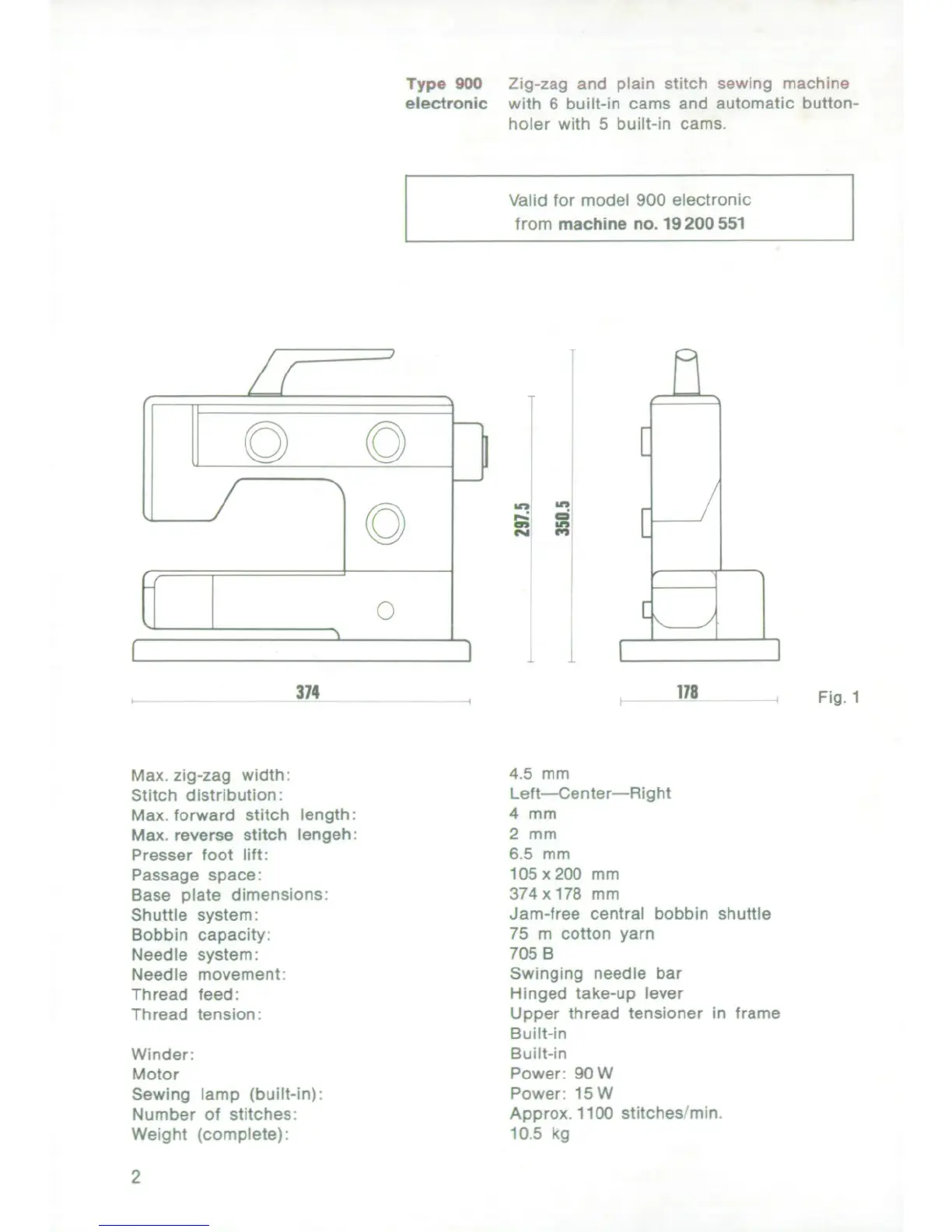

314 178 Fig. 1
Max. zig-zag width 45 mm
Stitch distribution: Left-Center-Right
Max. forward stitch length 4 mm
Max. reverse stitch lengeh: 2 mm
Presser toot lift: 6.5 mm
Passage space: 105 x 200 mm
Base plate dimensions: 374 x 178 mm
Shuttle system: Jam-free central bobbin shuttle
Bobbin capacity: 75 m cotton yarn
Needle system: 705 B
Needle movement, Swinging needle bar
Thread teed: Hinged take-up lever
Thread tension: Upper thread tensioner in frame
Built-in
Winder: Built-in
Motor Power. 90W
Sewing lamp (built-in) Power- 15W
Number of stitches: Approx 1100 stitches min
Weight (complete) 10i5 kg
