Details
5
Bobbin cover
Stitch plate
Attachment base for optional accessories
Darning ring connection
Presser foot
Needle clamp
Thread guide
Needle threader
Thread take-up cover
Thread path
Thread take-up
Bobbin pre-tension
Quick reverse button
F (Favorite Function) button
Pattern end
Screen
Bobbin winder with on/off switch and
thread cutter
Practical stitch button
Buttonhole button
Decorative stitch button
Alphabet button
External embroidery button
Quilt stitch button
clr (Clear) button
mem (Memory) button
Needle stop up/down
“?”( Help) button
TC (Tutorial/Creative Consultant) button
Stitch width knob
Stitch length knob
Needle position
smart button
setup button
eco (Ecology) button
FHS connection (optional accessory)
Presser foot lifter (manual)
Carrying handle
Spool pins
Sewing table socket
Thread cutter
Presser foot pressure dial
Handwheel
Power switch on/off
Power plug socket
Drop feed-dog
Foot control socket
Embroidery module connection
(optional accessory)
PC serial port
Tension adjustment
Magnifying glass holder
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

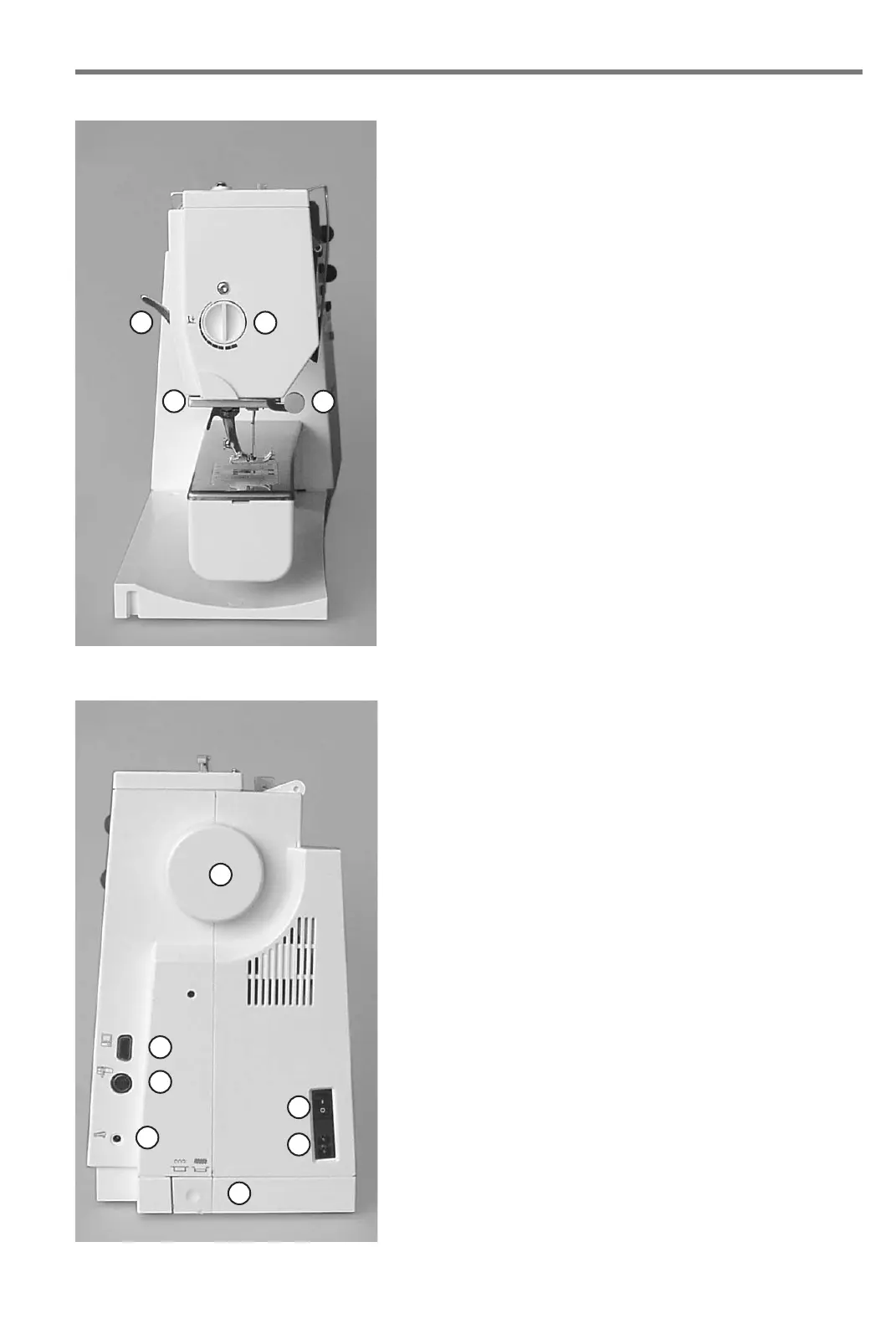

View from the left side
