16

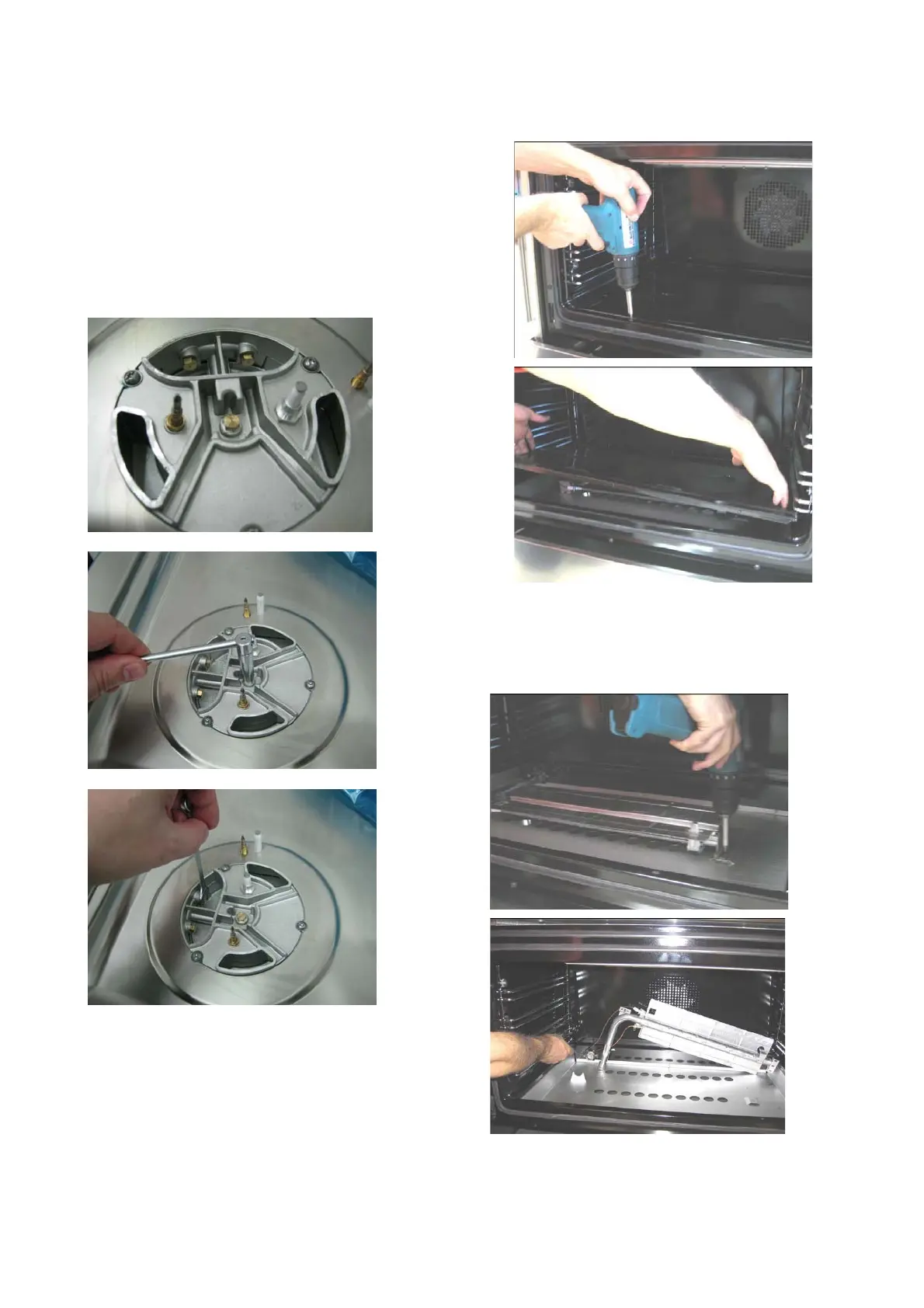

STEP2:SURFACEBURNERS
Toreplacethenozzlesofthesurfaceburners,lift
up the burners and unscrew the nozzles  shipped
withtherangeusinga7mm{sochetwrench).
Replacenozzlesusingtheconversionsetsupplied
with the range or by a Bertazzoni authorized
parts warehouse. Each nozzle has a
 number
indicating its flow diameter printed onthe body.
Consultthetableonpage20formatchingnozzles
toburners.








STEP3:MAINOVENBURNER
Toreplacethenozzlesofthemainovenburner,
startbyremovingthebottompaneloftheoven.


Loosenthescrewlocatedontherightsideofthe
burnerandpullouttheburnerfromitssupport.
ATTENTION:payextraattentiontoavoiddamage
totheigniterandthermocouple.




Unscrewthenozzlelocatedinsidethegasfitting
usinga10mm[socketwrench].
