DURING THE FIRST WORKING HOURS
RETENSION THE FAN DRIVING POLY-V
BELT :
(procedure described on page 13).
CHECK TIGHTENING OF THE HOPPER :
Tighten the nuts (1), but do not overtighten.
MAINTENANCE

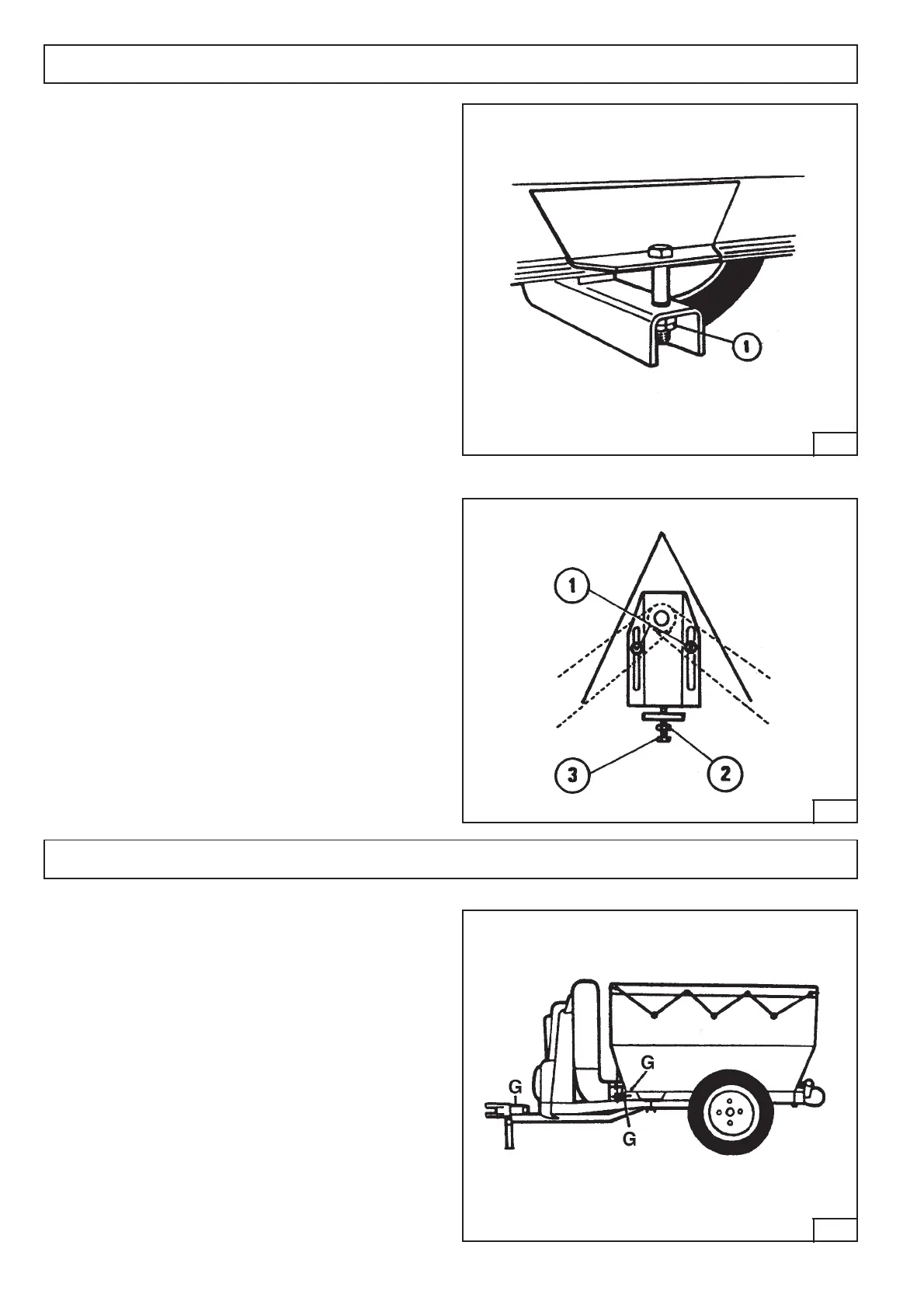

CHECK TENSION OF ARCHEMEDIANS
SCREW DRIVING CHAINS : (figure 11)
. Remove front cover,
. Release the engins support (1),
. Unscrew the lock nut (2),
. Move the engins support up by turning the
screw (3),
. Tension the chains, but do not overtension,
. Drive the lock nut (2) home,
. Relock the engins support (1),
. Fix the front cover.
Do not overtension the chain, the soft strand
should slightly hang loose.
LUBRICATION
LUBRICATING THE BEARINGS
Every 100 hours or once a season (5 lubricating
nipples (G), figure 12), using bearing grease.
LUBRICATION WITH A BRUSH
After each treatment :
The transmission tube.
Every 20 hours :
The chains and worm claw.
