3
TECHNICAL DATA
CHASSIS : Steel profile and plate.
HOPPER : Sheet plate, 600 litres capacity, large
opening closed by a tilt.
MECHANISM : Speed multiplier with POLY-V
drive belt.
FEEDING : 2 disengageable archemedians screw
driven by a hydraulic motor.
Speed adjustment by flow regulation.
This system ensures perfect evenness of powder
distribution.
The powder runs directly on to the distribution
blade.
No risk of the turbine, ventilation cage or caisson
becoming clogged..
.
FAN : Aluminium.
Speed of rotation : 4.650 rpm.
DISTRIBUTION : Through two swivelling blades
with adjustable treatment device for the first row.
MIXER : Anti-vault device using 2 vibrating
partitions (BERTHOUD patent).

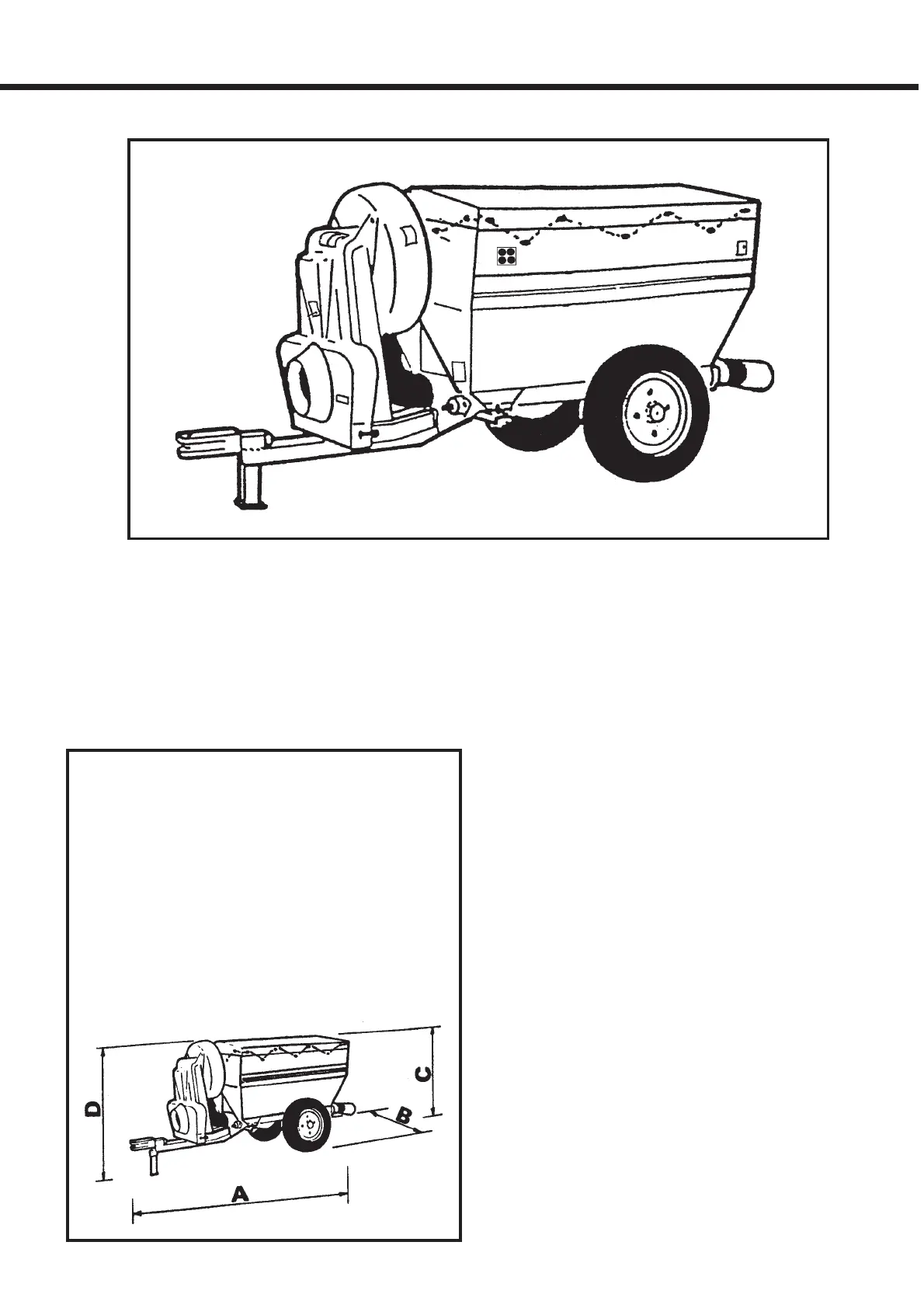

SPACE REQUIREMENTS
AND WEIGHT
Length (A) 2,00 m
Width (B) 0,92 m
Hopper height (C) 1,08 m
Overall height 1,13 m
Weight empty 267 kg
Gross vehicule weight 720 kg
APOLO 600
