Best D49M30SB - Contents; Specifications; Tools Needed

4

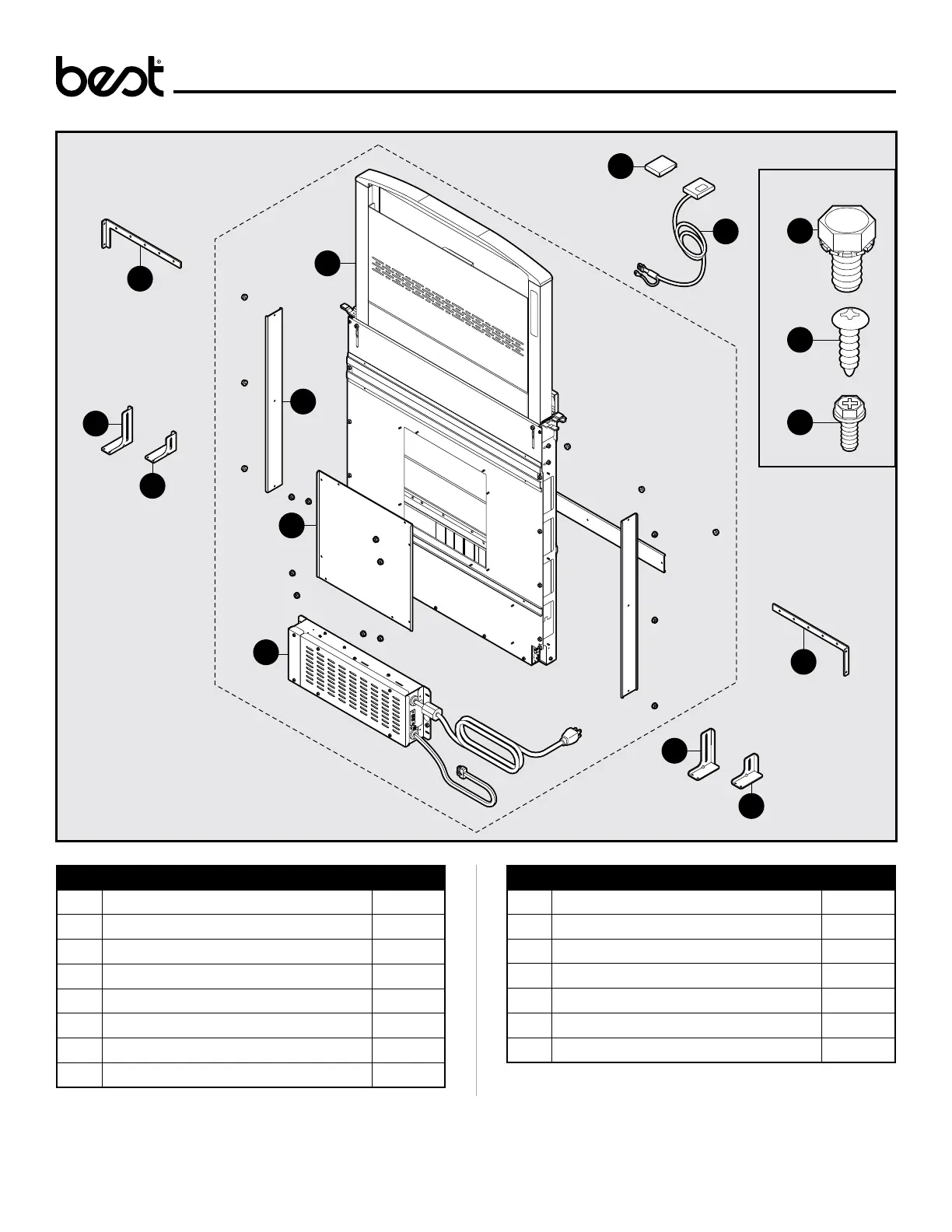

Contents
E
F
G
H
I
C
D
B
A
AA
BB
CC
x3
x2
x8
x2
J
L
K
ELECTRICAL
SPECIFICATIONS
Model PF6 - Internal Flex:
120 VAC • 60 Hz • 3.0 A
Models EB6, EB9, EB12, or EB15 - Exterior
Models ILB6, ILB9 or ILB11 - In-Line
120 VAC • 60 Hz • 6.0 A (max.)
Part Description Quantity
A
Upper support bracket (left) 1
B
Downdraft ventilator housing 1
C
End cap trim (left) 1
D
End cap trim–up button (right) 1
E
4" support leg (left) 1
F
2" support leg (left) 1
G
Discharge cover 3
H
Front panel cover 1
Part Description Quantity
I
Electrical panel 1
J
Upper support bracket (right) 1
K
4” support leg (right) 1
L
2” support leg (right) 1
AA
1/4-20 x .50 Hex Head screw 2
BB
#10 x .50 Phillips round head screw 8
CC
#8-18 x .375 Phillips screw 2
Tools Needed
Measuring tape, pencil, Phillips screwdriver #2, nut drivers (11/32", 3/8", 7/16"), box-end wrench, saw, spirit-level, tin snips, work gloves,
and aluminum tape. (DO NOT use insulating tape.)
