Planning
Ducting Configurations (continued)

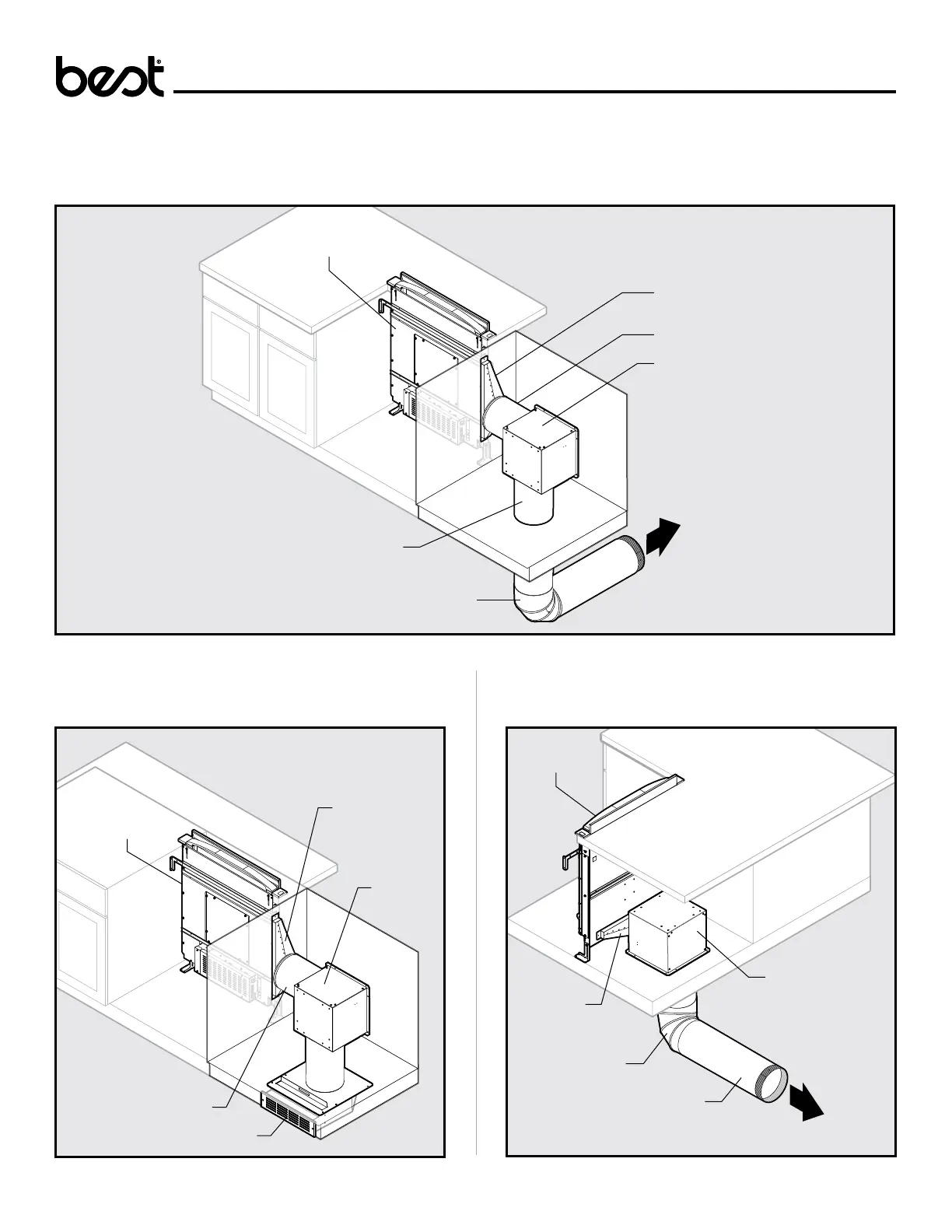

Side Exhaust with Flex Blower
Downdraft
1-7/8" to 8"
Round Transition
8" Round Elbow
PF6 (Flex Blower)
8
"
Straight Duct
*
*To Model 643 (8" Round Wall Cap)
8
"
Straight Duct
Downdraft
1-7/8" to 8"
Round Transition
Flex Blower
8" Straight Duct
Recirculation Kit
*
*To Model 643 (8" Round Wall Cap)
Downdraft
8" Round Elbow
PF6 (Flex Blower)
8
"
Straight Duct
1-7/8" to 8"
Round Transition
Side Exhaust with Flex Blower and
Recirculating Kit Rear Exhaust with Flex Blower
