Best iQ6 - Service Parts

MODEL iQ6
Page 5
1
2
4
3
5
8
6
7
7
16
11
11
9
10
14
15
12
13
17

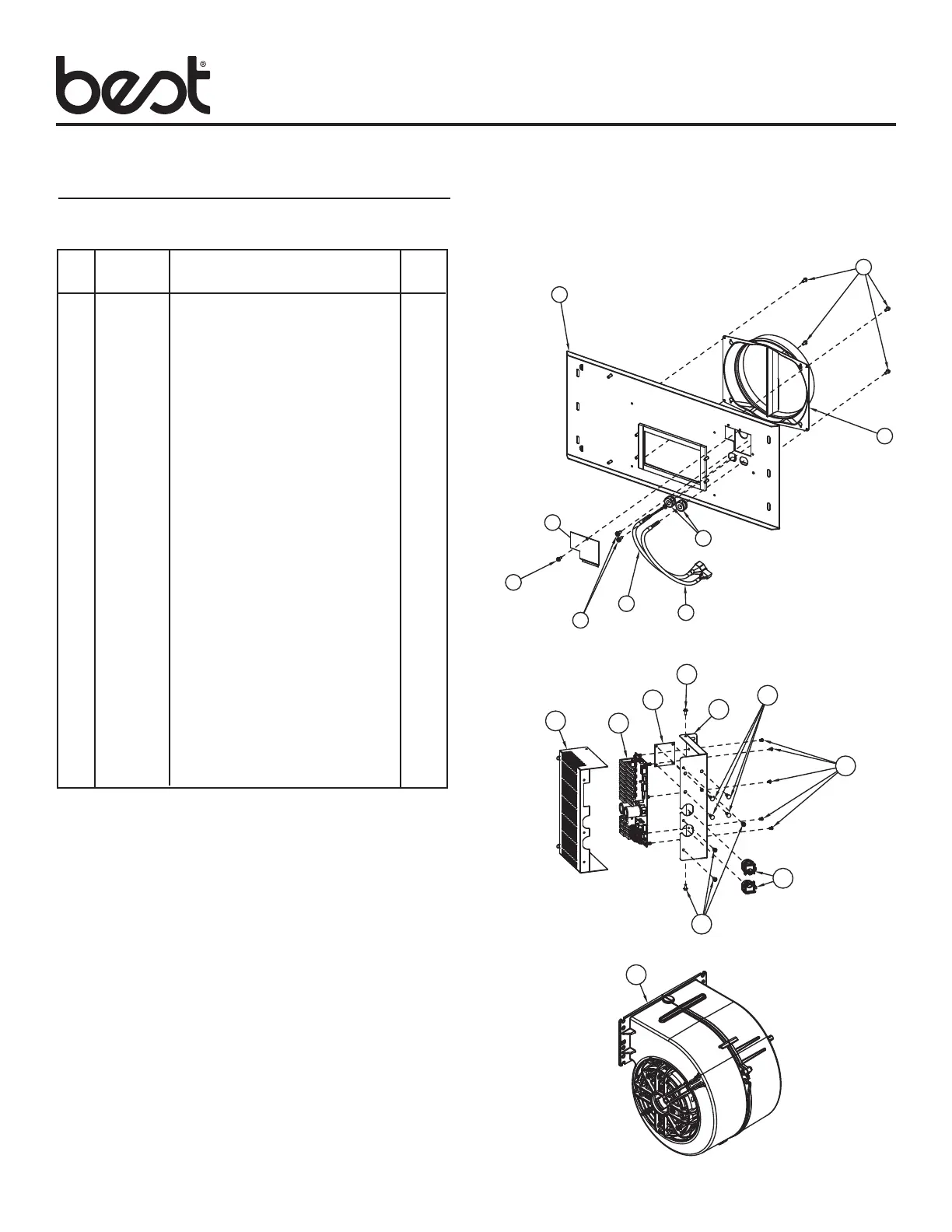

SERVICE PARTS
Model iQ6
KEY PART DESCRIPTION QTY
NO. NUMBER
1 97019389 ROUGH IN PLATE WELDMENT 1
2 98003370 OUTLET BOX COVER 1
3 99440033 POWER CORD 1
4 99150471 SCREW, #10-32 X 1/2 HEX
WASHER HEAD 2
5 99271500 BOARD POWER WIRE HARNESS 1
6 99400060 STRAIN RELIEF 2
7 99170245 SCREW, #8-18X3/8” 5
8 SV08543 8” DAMPER 1
# 97019456 ROUGH IN KIT (COMPLETE)
(INCLUDES KEYS 1-7)
9 PCB ENCLOSURE RIGHT 1
10 PCB ENCLOSURE LEFT 1
11 99170245 SCREW, #8-18X3/8” 5
# 97019457 PCB ENCLOSURE KIT
(INCLUDES KEYS 9-11)
12 SCREW, 3MM X 6MM PH
W/LOCK WASHER 5
13 IQ6 PCB BOARD 1
# 97019458 IQ6 PCB BOARD KIT
(INCLUDES KEY 12 AND KEY 13)
14 PCB TRIAC BOARD 1
15 STANDOFF 4
# 97019471 PCB TRIAC BOARD KIT
(INCLUDES KEY 14 AND 15)
16 99400088 STRAIN RELIEF 2
17 97018985 BLDC BLOWER 1
+ 99271491 SPEED CONTROL WIRE HARNESS 1
+ 99271503 CALIBRATION BUTTON
WIRE HARNESS 1
+ 99260488 NUT WHIZ 10-24 6
+ NOT SHOWN
# NOT SHOWN ASSEMBLED
* STANDARD HARDWARE. MAY BE PURCHASED LOCALLY.
