2

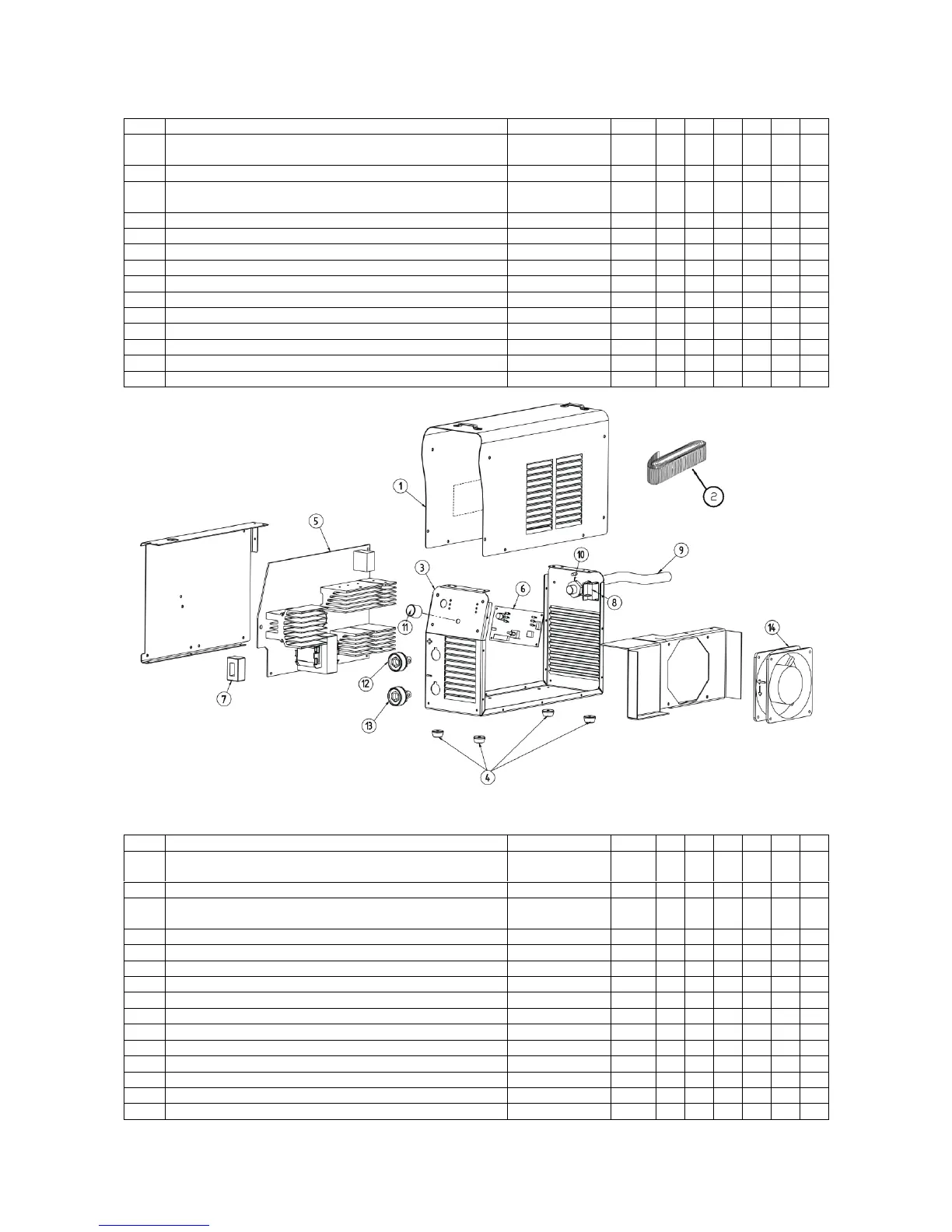

Figure A: Machine Assembly
Item Description Part Number QTY 1 2 3 4 5 6
1
1A
Wraparound
+ Side Nameplate
W93X0924R
W07X1102R
1
1
X
X
2 Carrying Strap W9200150R 1 X
3
3A
Main Frame (with internal sheet metals)
+ Front Nameplate
W93X0928R
W07X1099R
1
1
X
X
4 Anti-Slip Foot W8602311R 4 X
5 Inverter P.C. Board W05X0908R 1 X
6 Control P.C. Board W05X0906R 1 X
7 Input Switch W7516224R 1 X
8 Input Cable CE W78X0930R 1 X
9 Cable Clamp W8400037R 1 X
10 Knob Kit W8700022R 1 X
11 Output Dinse Connector W7600036R 2 X
12 Fan W7200010R 1 X
Figure B
Figure B: Machine Assembly
Item Description Part Number QTY 1 2 3 4 5 6
1
1A
Wraparound
+ Side Nameplate
W93X1085R
W07X1102R
1
1
X
X
2 Carrying Strap W9200150R 1 X
3
3A
Main Frame
+ Front Nameplate
W93X1084R
W07X1100R
1
1
X
X
4 Anti-Slip Foot W8602311R 4 X
5 Inverter P.C. Board W05X1064R 1 X
6 Control P.C. Board W05X1088R 1 X
7 Hall Sensor W4900003R 1 X
8 Input Switch W7516224R 1 X
9 Input Cable CE W78X0248R 1 X
10 Cable Clamp W8400006R 1 X
11 Knob Kit W8700022R 1 X
12 Output Dinse + Connector W7600037R 1 X
13 Output Dinse – Connector W7600025R 1 X
14 Fan W7200014R 1 X
